CHAIN CASE-SHOCK ABSORBER

GN250 1991 (M) (E02 E04 E22 E24 E25 E34 E39 E53)

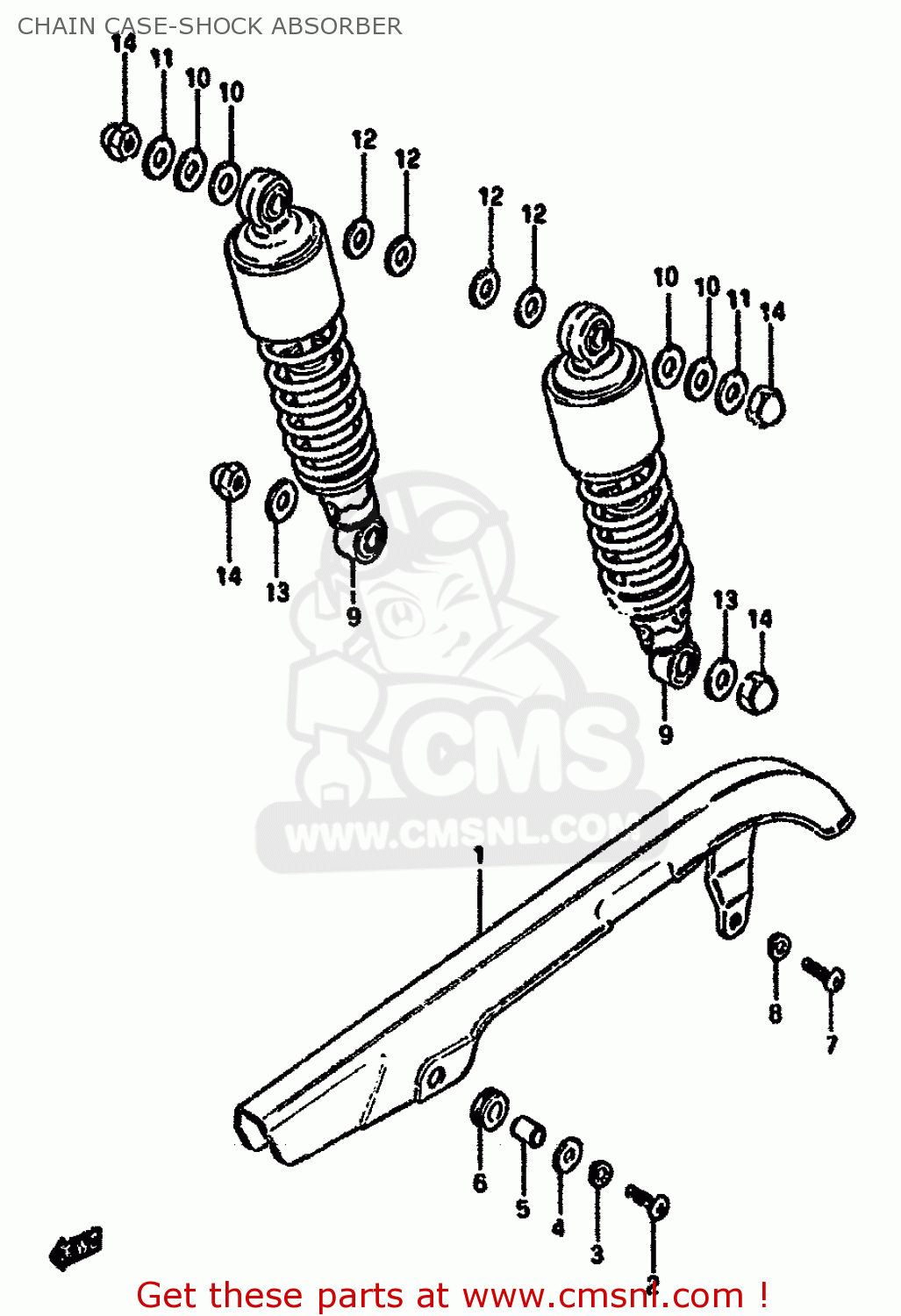

Chain case-shock absorber diagram GN250 1991 (M) (E02 E04 E22 E24 E25 E34 E39 E53)

prices are in EUR

ref

part #

description

quantity

6131038300
ref: 1

CASE,CHAIN

€ 140.50

2-1

0211206167
ref: 2-1
MODEL F/J/K

SCREW

€ 2.50

2-2

0211236168
ref: 2-2
MODEL L/M/N/P

SCREW

€ 2.00

2-3

0211236163
ref: 2-3
MODEL R

SCREW

€ 2.50

0832121067
ref: 3
MODEL F/J/K

WASHER,LOCK

€ 2.50

0916006027
ref: 4

WASHER (6.5X20X1.2)

€ 2.00

0918007005
ref: 5

SPACER (7X9X7)

€ 2.50

0932008021
ref: 6
-09320-08007

CUSHION

€ 4.00

7-1

0211206167
ref: 7-1
MODEL F/J/K

SCREW

€ 2.50

7-2

0211236168
ref: 7-2
MODEL L/M/N/P

SCREW

€ 2.00

7-3

0211236163
ref: 7-3
MODEL R

SCREW

€ 2.50

0832121067
ref: 8
MODEL F/J/K

WASHER,LOCK

€ 2.50

6210038310
ref: 9

ABSORBER ASSY,RR SHOCK

€ 172.50

10-1

0916010001
ref: 10-1
E22

WASHER

€ 2.00

10-2

0916010001
ref: 10-2
E1,E2,E4,E24,E25,E34

WASHER

€ 2.00

0916010033
ref: 11

WASHER(10.5X24X3.2)

€ 2.00

12-1

0832211128
ref: 12-1
MODEL F/J/K/L/M/N/P

WASHER

€ 2.00

12-2

0832201127
ref: 12-2
MODEL R

WASHER

€ 2.00

0916010001
ref: 13

WASHER

€ 2.00

0831310107
ref: 14

NUT

€ 2.50
