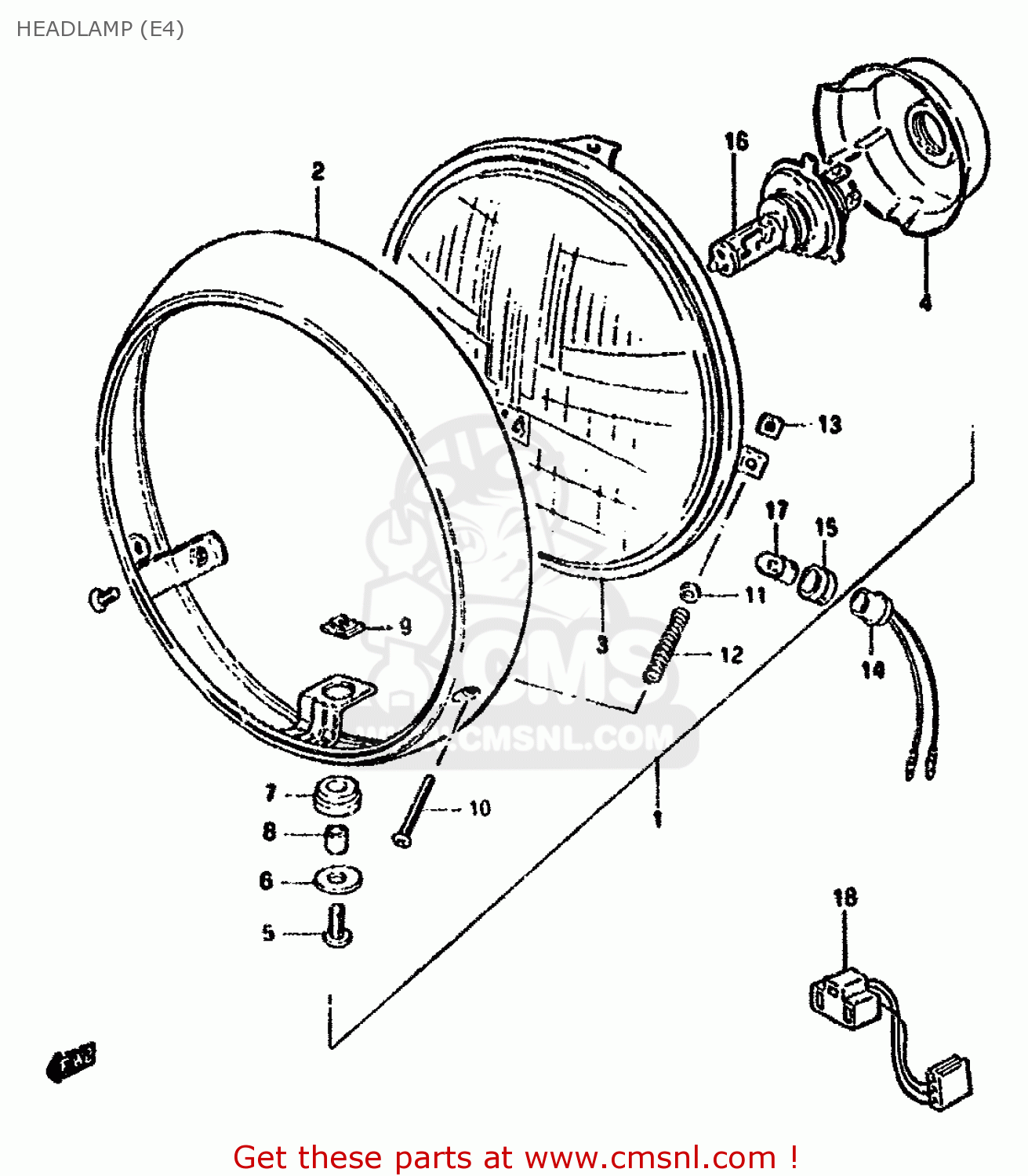

HEADLAMP (E4)

ref

part #

description

quantity

1

3510045261999
ref: 1

HEADLAMP ASSY

€ 249.00

2

3511145221
ref: 2

RIM

€ 50.50

3

3512145260
ref: 3

LAMP UNIT

€ 141.50

4

3517345200
ref: 4

COVER,SOCKET

€ 14.00

5

0211205128
ref: 5

SCREW

€ 2.50

6

3513845230
ref: 6

WASHER

€ 2.00

7

3513945230
ref: 7

CUSHION

€ 1.50

8

3513345230
ref: 8

SPACER

€ 2.00

9

3515548510
ref: 9

NUT

€ 2.00

10

3515145230
ref: 10

SCREW

€ 3.50

11

3515727630
ref: 11

WASHER

€ 2.50

12

3515448510
ref: 12

SPRING

€ 2.50

13

3515248510
ref: 13

NUT,HEADLAMP ADJUSTER

€ 3.00

14

3611849320
ref: 14

SOCKET

€ 12.00

15

3611622630
ref: 15

JOINT,RUBBER

€ 5.00

16

0947112061
ref: 16
EXECUTED LOCALLY

BULB (12V, 60/55W, H4)

€ 0.00

17

0947112032
ref: 17

BULB

€ 6.00

18

3685330500
ref: 18

LEAD WIRE,HEADLAMP

€ 13.00

15

3611622630
ref: 15

JOINT,RUBBER

€ 5.00

16-1

0947112080
ref: 16-1

BULB(12V45/45W,STANLEY,70281A)

€ 8.00

16-2

0947112060
ref: 16-2
MODEL M/N/P/R E24

BULB(12V60/55W,H4)

€ 8.00

17-1

0947112001
ref: 17-1

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

17-2

0947112063
ref: 17-2
MODEL M/N/P/R E24

BULB(12V4W)

€ 6.00

18-1

0912705013
ref: 18-1
MODEL F/J/K/L/M/N/P

SCREW(5X12)

€ 2.50

18-2

0212205127
ref: 18-2
MODEL R

SCREW

€ 2.50

all assemblies
