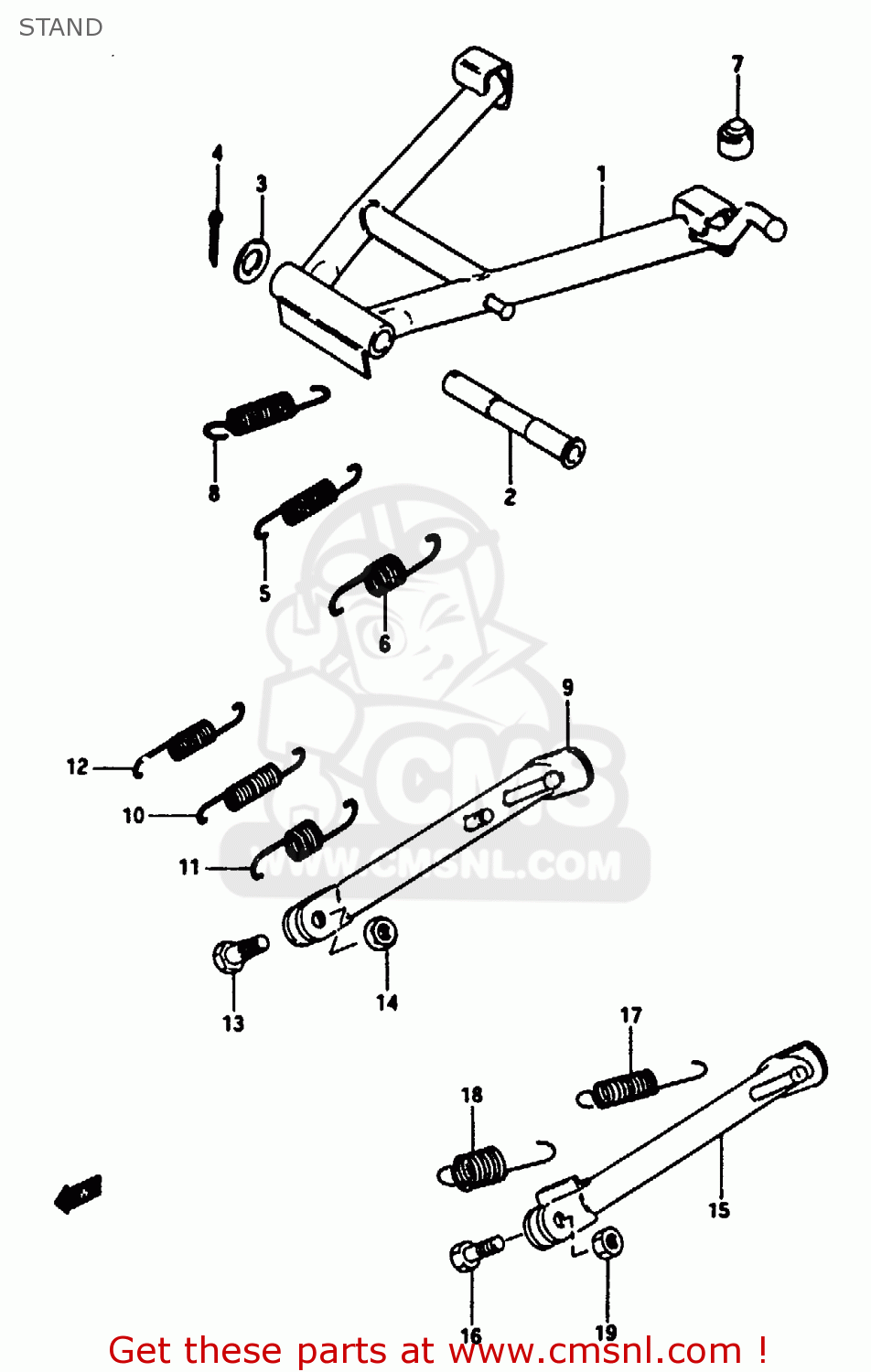

STAND

ref

part #

description

quantity

1

4210038301
ref: 1

STAND,CTR

€ 93.50

2

4221136503
ref: 2
-42211-36502

SHAFT,CENTER STAND

€ 20.00

3

0916016001
ref: 3

WASHER(16.5X32X2.3)

€ 2.00

4

0411130308
ref: 4

COTTER PIN

€ 1.50

5

0944315013
ref: 5
E22

SPRING

€ 22.50

6

0944322003
ref: 6
E22

SPRING

€ 7.00

7

0932110001
ref: 7

CUSHION

€ 2.50

8

0944318006
ref: 8
E2,E24,E39,P95

SPRING

€ 5.50

9-1

4231038300
ref: 9-1
MODEL F E24,P95 MODE

STAND,SIDE

€ 34.50

9-2

4231038310
ref: 9-2
MODEL F E2,E22 MODEL

STAND,PROP

€ 39.00

10

0944312025
ref: 10
MODEL F

SPRING

€ 18.50

11

0944319006
ref: 11
MODEL F

SPRING

€ 18.00

12-1

0944317007
ref: 12-1
MODEL F E24,P95 MODE

SPRING

€ 4.50

12-2

0944315035
ref: 12-2
MODEL F E2,-F.NO.106

SPRING

€ 3.50

12-3

0944315038
ref: 12-3
MODEL F E2,F.NO.1067

SPRING

€ 0.00

13-1

0910010067
ref: 13-1
MODEL F E24,P95 MODE

BOLT(10X30)

€ 3.50

13-2

0911110047
ref: 13-2
MODEL F E2,E22 MODEL

BOLT(10X30)

€ 4.50

14

0831022106
ref: 14
MODEL F

NUTM10X1.25X8

€ 2.00

15

4231038351
ref: 15
-42310-38350

STAND,PROP

€ 141.50

16

0911110047
ref: 16
MODEL J/K/L/M/N/P/R

BOLT(10X30)

€ 4.50

17

0944312025
ref: 17
MODEL J/K/L/M/N/P/R

SPRING

€ 18.50

18

0944319006
ref: 18
MODEL J/K/L/M/N/P/R

SPRING

€ 18.00

19-1

0831022106
ref: 19-1
MODEL J/K/L/M/N/P

NUTM10X1.25X8

€ 2.00

19-2

0914010043
ref: 19-2
MODEL R

NUT

€ 2.00

all assemblies
