REAR BRAKE

GN250 1991 (M) (E02 E04 E22 E24 E25 E34 E39 E53)

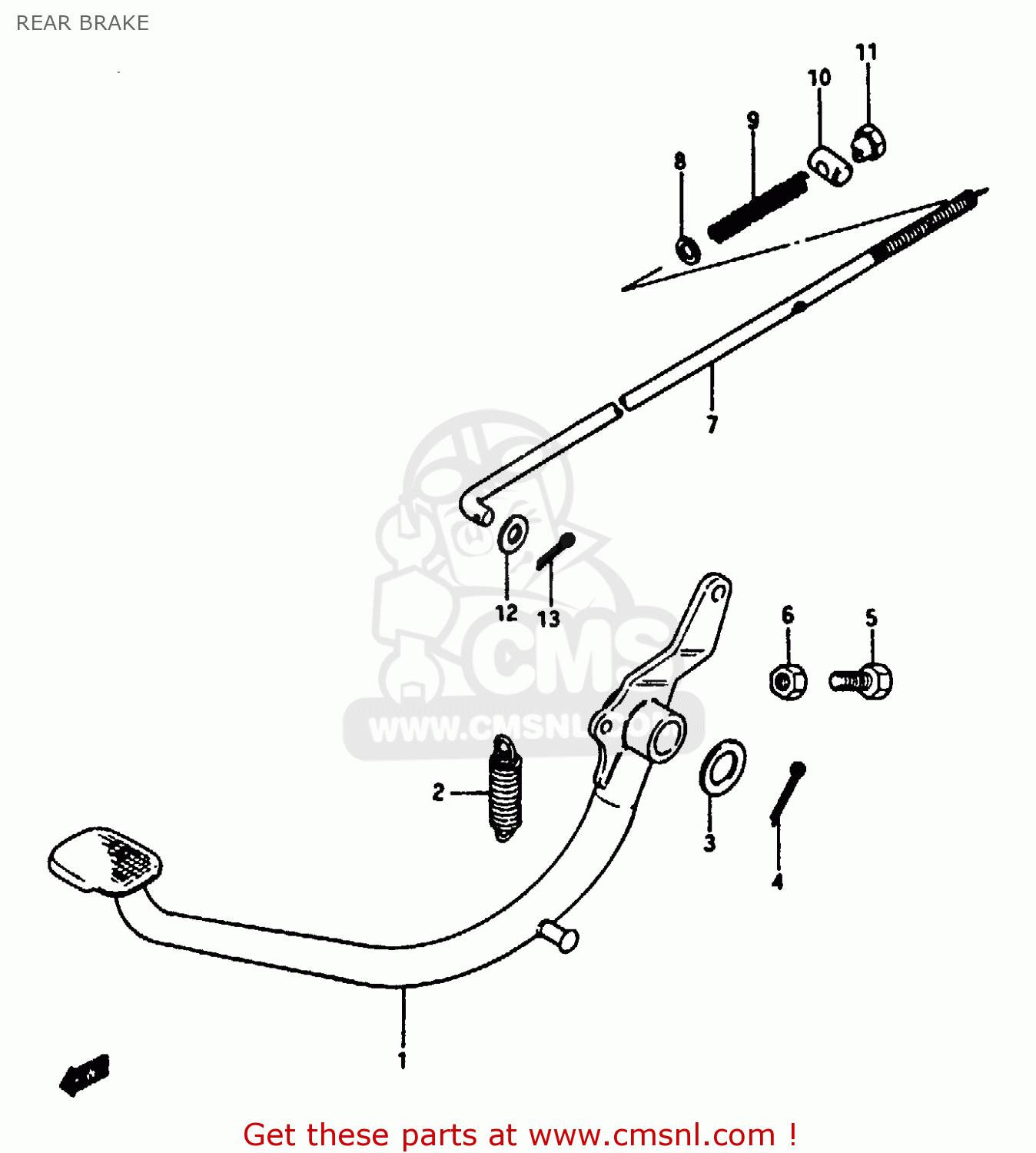

Rear brake diagram GN250 1991 (M) (E02 E04 E22 E24 E25 E34 E39 E53)

prices are in EUR

ref

part #

description

quantity

4311038301
ref: 1

PEDAL,BRAKE

€ 104.00

0944314013
ref: 2

SPRING

€ 21.50

0916015002
ref: 3

WASHER(15.5X26X2.3)

€ 2.00

0411130308
ref: 4

COTTER PIN

€ 1.50

0912806028
ref: 5

SCREW(6X23)

€ 2.00

6-1

0831011067
ref: 6-1
MODEL F/J/K/L/M/N/P

NUT 6MM

€ 2.50

6-2

0831000063
ref: 6-2
MODEL R

NUT 6MM

€ 2.00

4330038300
ref: 7

ROD ASSY,RR BRAKE

€ 21.00

8-1

0832201067
ref: 8-1
MODEL F/J/K/L/M/N/P

WASHER

€ 2.00

8-2

0832201063
ref: 8-2
MODEL R

WASHER

€ 2.00

0944009004
ref: 9

SPRING

€ 2.00

0920913005
ref: 10

PIN

€ 3.50

0915006009
ref: 11

NUT (6MM)

€ 3.50

12-1

0832201067
ref: 12-1
MODEL F/J/K/L/M/N/P

WASHER

€ 2.00

12-2

0832201053
ref: 12-2
MODEL R

WASHER

€ 2.50

0411120208
ref: 13

PIN 20X20

€ 1.50
