CRANKCASE

GN250 1991 (M) (E02 E04 E22 E24 E25 E34 E39 E53)

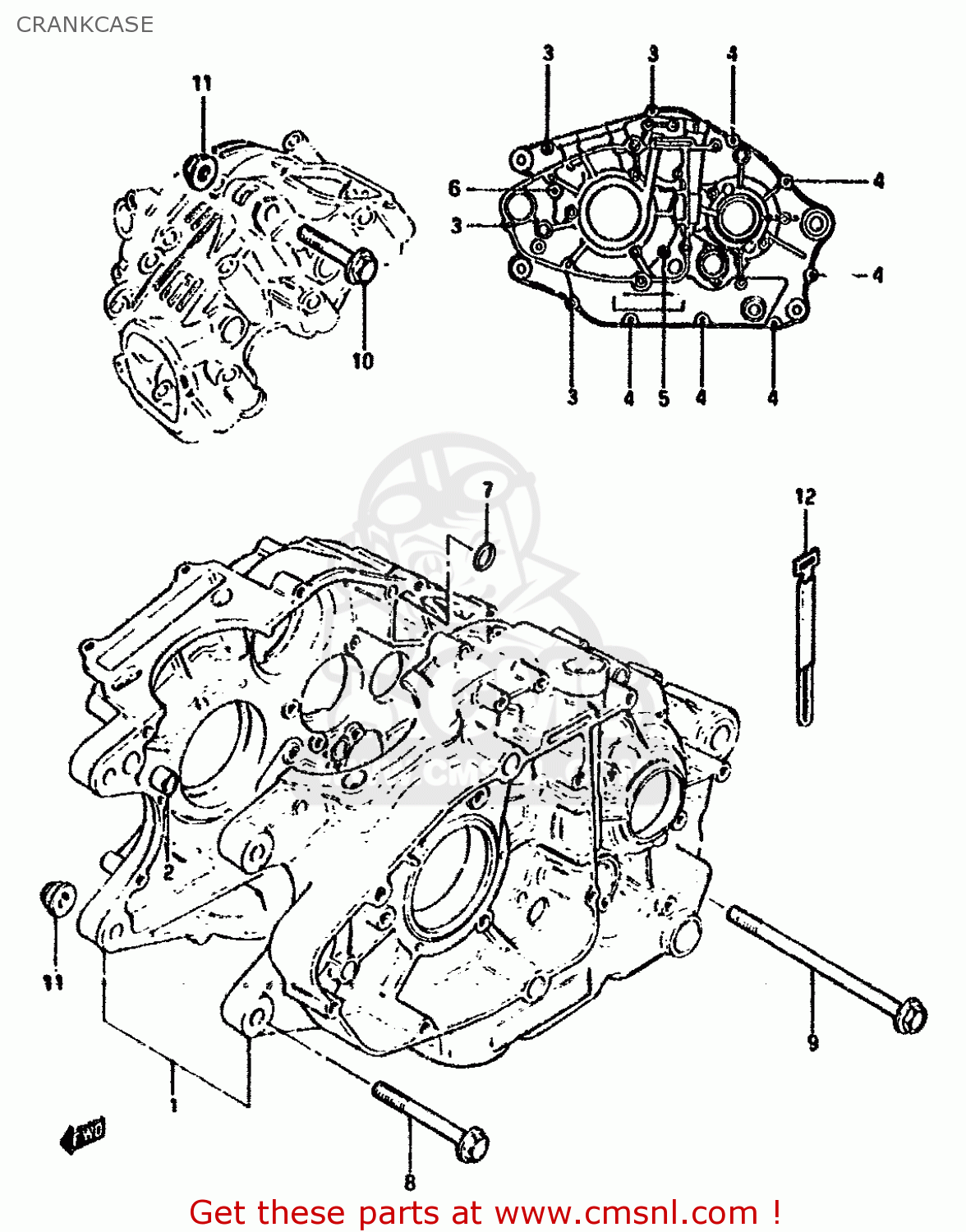

Crankcase diagram GN250 1991 (M) (E02 E04 E22 E24 E25 E34 E39 E53)

prices are in EUR

ref

part #

description

quantity

1130038861
ref: 1

CRANKCASE SET

€ 622.50

0920613001
ref: 2

PIN

€ 2.50

0154706357
ref: 3

BOLT

€ 2.50

0154706457
ref: 4

BOLT

€ 2.50

5-1

0154706557
ref: 5-1
MODEL F/J/K/L/M/N/P

BOLT

€ 2.50

5-2

0154706553
ref: 5-2
MODEL R

BOLT

€ 3.00

6-1

0154706607
ref: 6-1
MODEL F/J/K/L/M/N/P

BOLT

€ 2.50

6-2

0154706603
ref: 6-2
MODEL R

BOLT

€ 3.50

0928009005
ref: 7

O RING(D:1.9,ID:8.6)

€ 4.00

0910308037
ref: 8

BOLT(8X67)

€ 6.50

0910308070
ref: 9

BOLT(8X100)

€ 5.00

0910308081
ref: 10

BOLT(8X50)

€ 3.50

0831931087
ref: 11

NUT

€ 2.50

1382738300
ref: 12

CLAMP,AIR CLEANER DRAIN TUBE

€ 4.50

CRANKCASE

all assemblies
