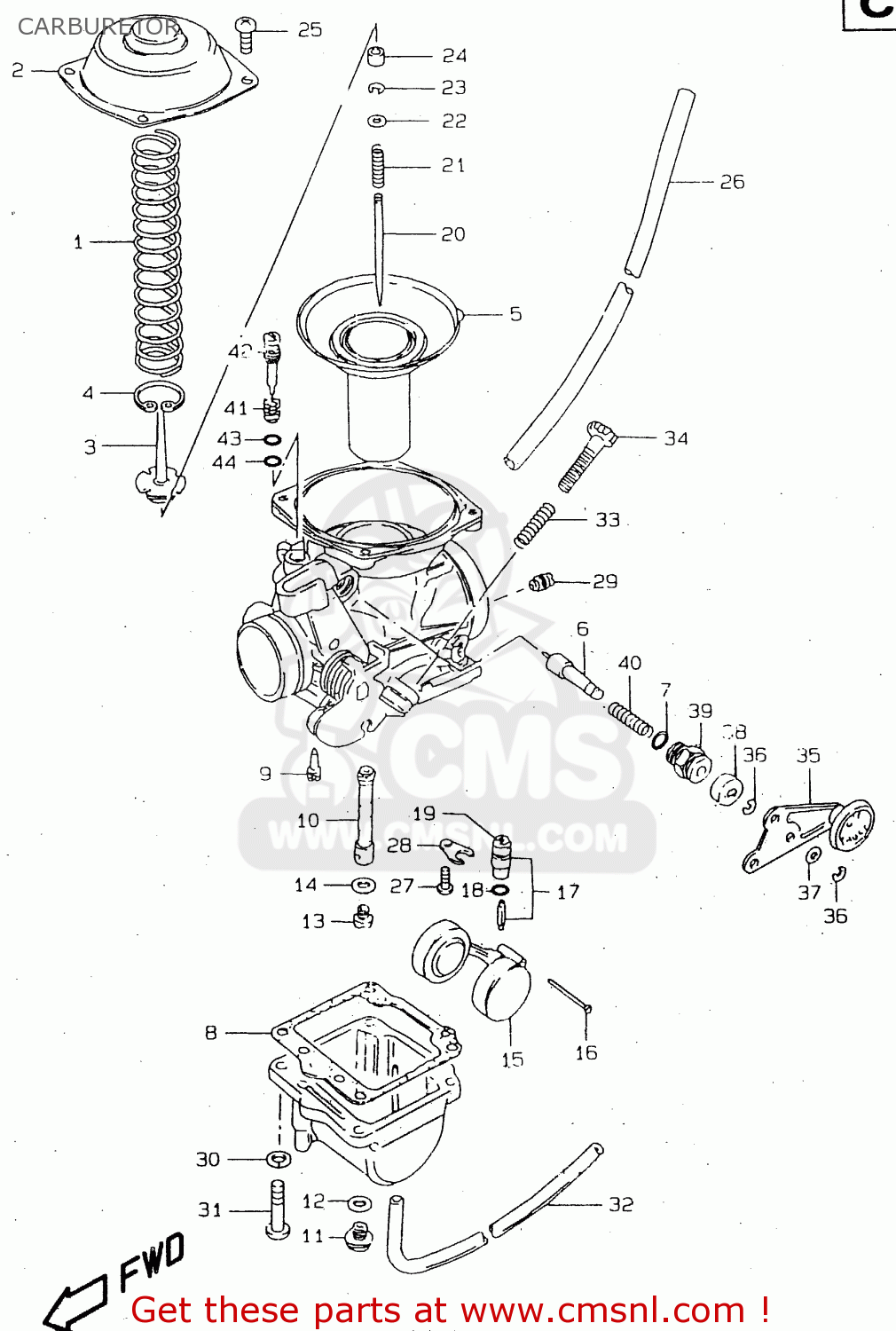

CARBURETOR

ref

part #

description

quantity

0

13200383A0
ref: 0

CARBURETOR ASSY

€ 333.50

0

1320038310
ref: 0
E1

CARBURETOR ASSY

€ 375.00

0

1320038350
ref: 0
E24

CARBURETOR ASSY

€ 425.00

0

1320038380
ref: 0
E39

CARBURETOR ASSY

€ 0.00

0

13200383C0
ref: 0
P37

CARBURETOR ASSY

€ 0.00

1

1350337100
ref: 1

SPRING

€ 9.00

2

1350238300
ref: 2

COVER

€ 22.00

3

1338944030
ref: 3

HOLDER,GUIDE

€ 10.50

4

1358144030
ref: 4

E RING

€ 6.50

5

1350038350
ref: 5

DIAPHRAGM ASSY

€ 184.50

5

1350038310
ref: 5
E1,P37

DIAPHRAGM ASSY

€ 168.00

6

1341138300
ref: 6

PLUNGER ASSY

€ 13.50

7

1327847090
ref: 7

O RING

€ 2.00

8

1325138300
ref: 8

GASKET,FLOAT CAHMBER (NAS)

€ 8.50

9

0949242010
ref: 9

JET,PILOT(42.5)

€ 8.50

9

0949235010
ref: 9
E39

JET,PILOT(37.5)

€ 10.50

10

0949400756
ref: 10

JET,NEEDLE(P-1)

€ 36.50

11

1324744080
ref: 11

PLUG,DRAIN

€ 9.50

12

1324644080
ref: 12

GASKET (NAS)

€ 3.50

13

0949126011
ref: 13

JET,MAIN(130)

€ 11.50

14

1338203110
ref: 14
<-13332-44080

WASHER

€ 2.50

15

1325037100
ref: 15

FLOAT

€ 33.50

16

1325492311
ref: 16

PIN,FLOAT

€ 2.00

17

1337037100
ref: 17

VALVE ASSEMBLY,NEEDLE

€ 63.00

17

1337037400
ref: 17
E1

VALVE ASSEMBLY,NEEDLE

€ 66.50

17

1337005530
ref: 17
P37

VALVE ASSY,NEEDLE

€ 63.00

18

1337444080
ref: 18

O-RING,NEEDLE VALVE

€ 6.00

19

1337684110
ref: 19

FILTER

€ 6.50

20

1338311910
ref: 20

NEEDLE,JET

€ 15.00

20

1338338310
ref: 20
E1

NEEDLE,JET

€ 12.00

20

1338338370
ref: 20
E39

NEEDLE, JET (5DF90-3)

€ 13.00

21

1338844030
ref: 21

SPRING

€ 6.00

22

1338244030
ref: 22

WASHER

€ 3.50

23

1339410010
ref: 23

CLIP

€ 4.50

24

1338747010
ref: 24

RING

€ 7.50

25

0211205103
ref: 25

SCREW

€ 2.00

25

1360224A00
ref: 25
P37

SCREW

€ 0.00

26

0935250823600
ref: 26
L:600->300

HOSE(5X8.2X600)

€ 13.00

27

0211204063
ref: 27

SCREW 4X6

€ 2.00

28

1337339110
ref: 28

PLATE

€ 6.50

29

0949330003
ref: 29

JET,AIR(150)

€ 13.00

30

0832101053
ref: 30

LOCK,WASHER

€ 3.00

31

0211205163
ref: 31

SCREW

€ 2.00

32

0935135653600
ref: 32
L:600->350

HOSE(3.5X6.5X600)

€ 5.50

32

0935135653600
ref: 32
E1,L:600->450

HOSE(3.5X6.5X600)

€ 5.50

33

1326837420
ref: 33

SPRING,THROTTLE SCREW

€ 3.50

34

1326725D00
ref: 34
<-13267-37100

ADJUSTER

€ 9.00

35

1341338300
ref: 35
MODEL T

STARTER LEVER ASSY

€ 40.00

35

13413383A0
ref: 35
MODEL W/X

LEVER ASSY, STARTER

€ 24.00

35

13413383A0
ref: 35
P37

LEVER ASSY, STARTER

€ 24.00

36

1341538300
ref: 36

E RING

€ 2.00

37

1342738300
ref: 37

WASHER

€ 1.50

38

1368231210
ref: 38

CAP,STARTER VALVE

€ 5.00

39

1341844080
ref: 39

GUIDE SCREW,PLUNGER

€ 8.00

40

1341747070
ref: 40

SPRING

€ 4.00

41

1326847070
ref: 41

SPRING

€ 5.00

42

1327947080
ref: 42

SCREW,PILOT AIR

€ 11.50

42

1327947080
ref: 42
E1

SCREW,PILOT AIR

€ 11.50

42

1327947080
ref: 42
E39

SCREW,PILOT AIR

€ 11.50

43

1329129900
ref: 43

WASHER

€ 2.00

44

1329529900
ref: 44

O RING,PILOT AIR SCREW

€ 4.00

all assemblies
