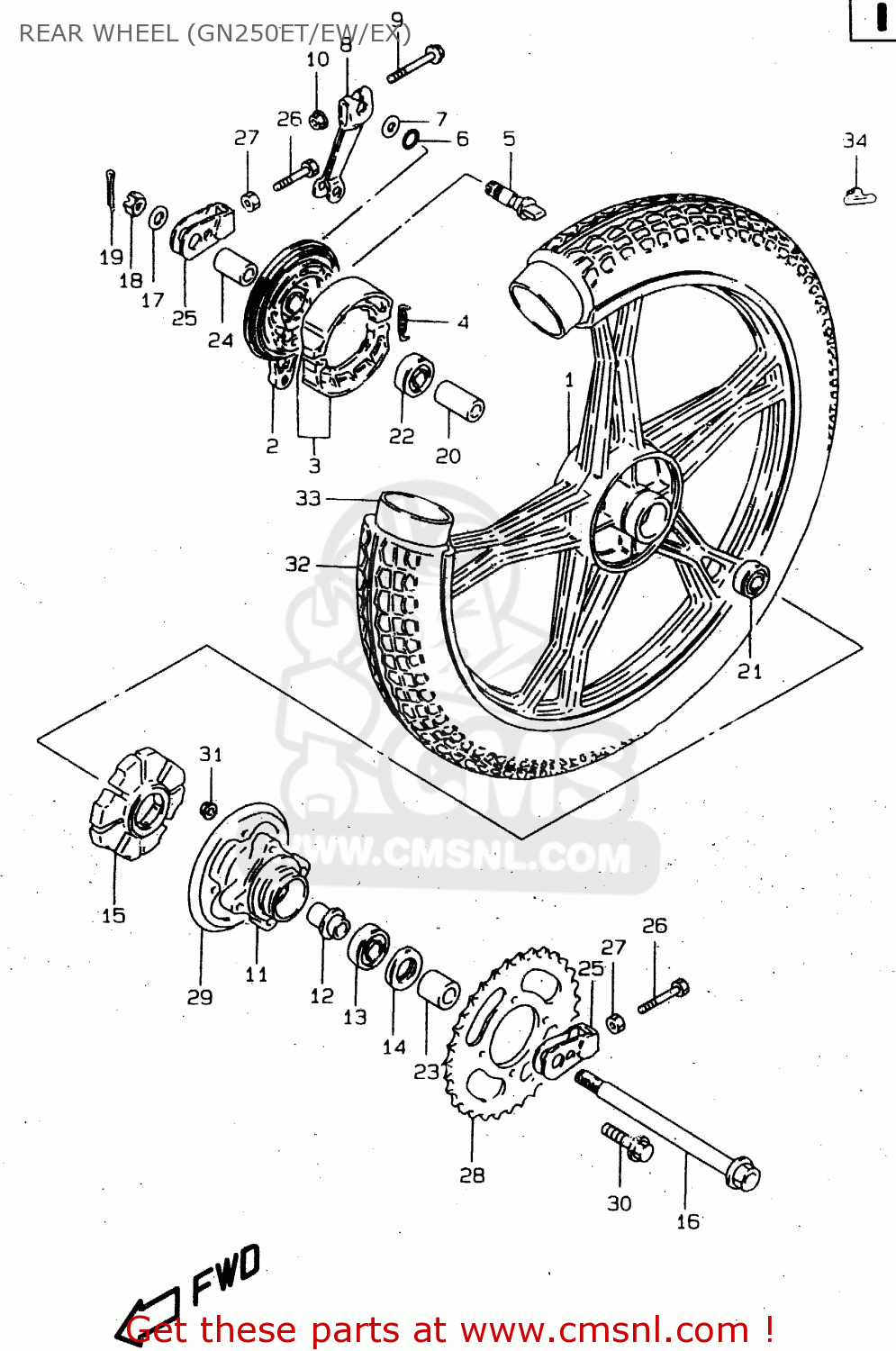

REAR WHEEL (GN250ET/EW/EX)

ref

part #

description

quantity

1

6415038300291
ref: 1

WHEEL,RR(2.15X10)

€ 532.50

2

6421039104
ref: 2

PANEL,RR BRAKE ANCHOR

€ 165.50

3

5440107820
ref: 3

SHOE SET,BRAKE (NAS)

€ 32.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129305
ref: 5

CAM,BRAKE

€ 13.00

6

0928014011
ref: 6

O RING(D:2.5,ID:13.8)

€ 3.50

7

0916014055
ref: 7

WASHER(14.5X22X1.6)

€ 2.50

8

6445130501
ref: 8

LEVER,RR BRAKE CAM

€ 15.00

9

0155006407
ref: 9

BOLT

€ 2.50

10

0831610067
ref: 10

NUT

€ 2.00

11

6461038300
ref: 11

DRUM,RR SPROCKET MOUNTING

€ 116.50

12

6473338300
ref: 12

RETAINER,RR SPROCKET DRUM

€ 40.00

13

0926220069
ref: 13

BEARING(20X47X14)

€ 28.00

14

0928528001
ref: 14

SEAL,OIL(28X47X7)

€ 11.50

15

6465138300
ref: 15

ABSORBER,RR HUB SHOCK

€ 20.00

16

6471132101
ref: 16

AXLE,REAR

€ 62.50

17

0832201143
ref: 17

WASHER

€ 2.00

18

0914114001
ref: 18

NUT

€ 4.50

19

0411130308
ref: 19

COTTER PIN

€ 1.50

20

0918015011
ref: 20

SPACER(15.3X21.7X63)

€ 7.50

21

0814362027
ref: 21

BEARING

€ 12.50

22

0815363027
ref: 22

BEARING

€ 12.00

23

0918015061
ref: 23

SPACER(15X28X24.8)

€ 7.00

24

0918015060
ref: 24

SPACER(15X22X46.8)

€ 6.50

25

6141038301
ref: 25

ADJUSTER,CHAIN

€ 71.50

26

0910408034
ref: 26

BOLT(8X50)

€ 3.00

27

0831000083
ref: 27

NUT

€ 1.50

28

6451138301
ref: 28

SPROCKET,RR(NT:41-520)

€ 63.50

29

6461838300
ref: 29

GUIDE,RR SPROCKET CHAIN

€ 5.50

30

0910310044
ref: 30

BOLT(10X40)

€ 3.00

31

0831931107
ref: 31

NUT

€ 3.00

32

6510044510
ref: 32

TIRE

€ 210.00

32

6510038330
ref: 32

TIRE,RR

€ 210.00

33

6520037300
ref: 33

TUBE ASSY,WHEEL,INNER 4.60-16

€ 31.50

34

5541100A00
ref: 34

BALANCER,WHEEL (10G)

€ 6.50

34

5541200A01
ref: 34

BALANCER,WHEEL (20G)

€ 7.00
