SEAT

GN250E 1996 (T) GENERAL (E01)

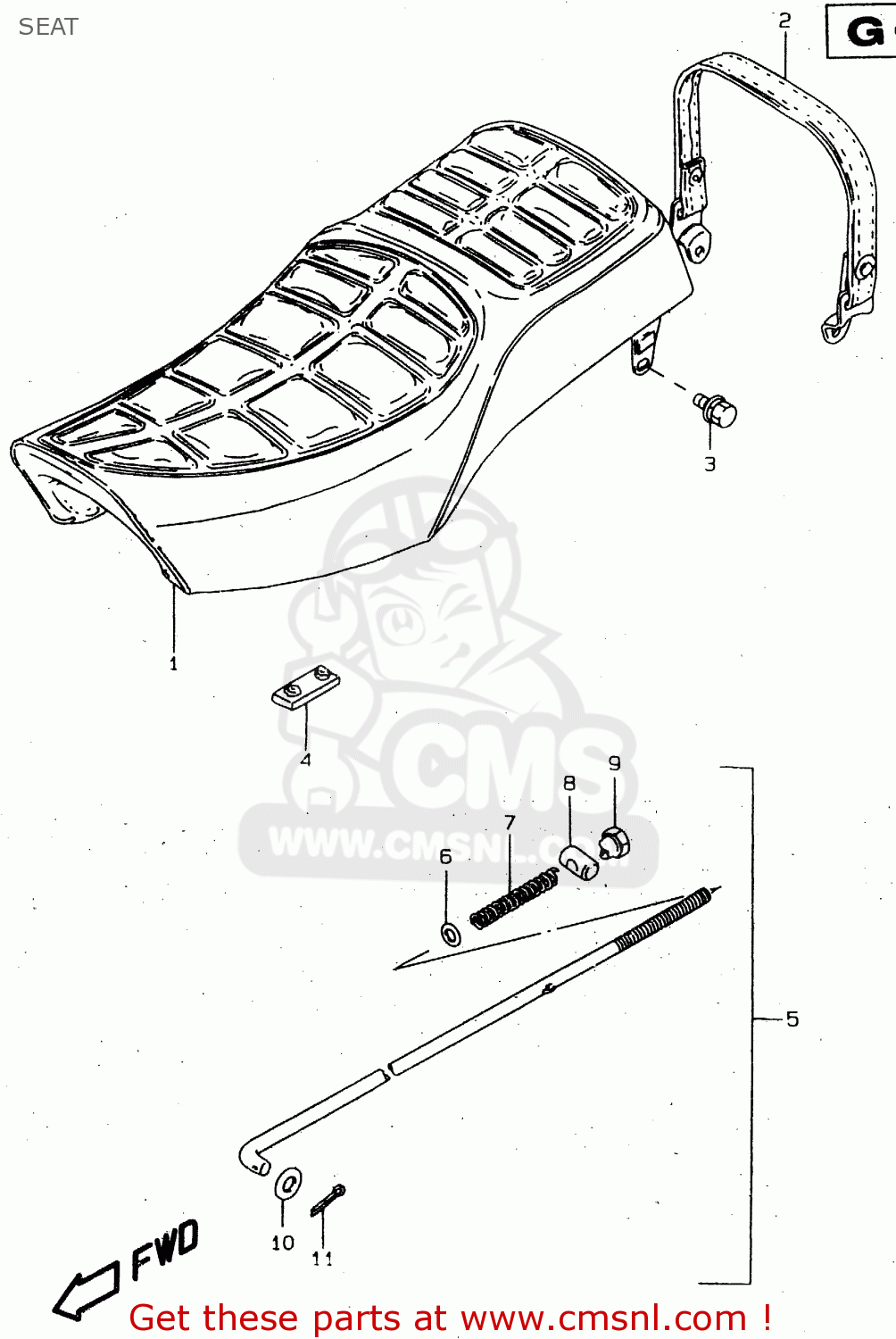

Seat diagram GN250E 1996 (T) GENERAL (E01)

SEAT GN250E 1996 (T) GENERAL (E01)
SEAT GN250E 1996 (T) GENERAL (E01)
SEAT GN250E 1996 (T) GENERAL (E01)
prices are in EUR
ref
part #
description
quantity
1
451003831248H
ref: 1
SEAT ASSY
€ 288.50
2
451803831048H
ref: 2
E1,E2,E4,E24,E25,E34
BAND,SEAT GRIP
€ 27.50
3
0126408207
ref: 3
BOLT
0126408207
€ 3.00
4
0932108009
ref: 4
CUSHION
0932108009
€ 4.00
5
4330038300
ref: 5
ROD ASSY,RR BRAKE
4330038300
€ 21.00
6
0832201063
ref: 6
WASHER
0832201063
€ 2.00
7
0944009004
ref: 7
SPRING
0944009004
€ 2.00
8
0920913018
ref: 8
PIN(13X18)
0920913018
€ 3.50
9
0915006014
ref: 9
NUT
0915006014
€ 3.50
10
0832201053
ref: 10
WASHER
0832201053
€ 2.50
11
0411120208
ref: 11
PIN 20X20
0411120208
€ 1.50
