HEADLAMP (E1,E2,P37,E24)

GN250E 1996 (T) GENERAL (E01)

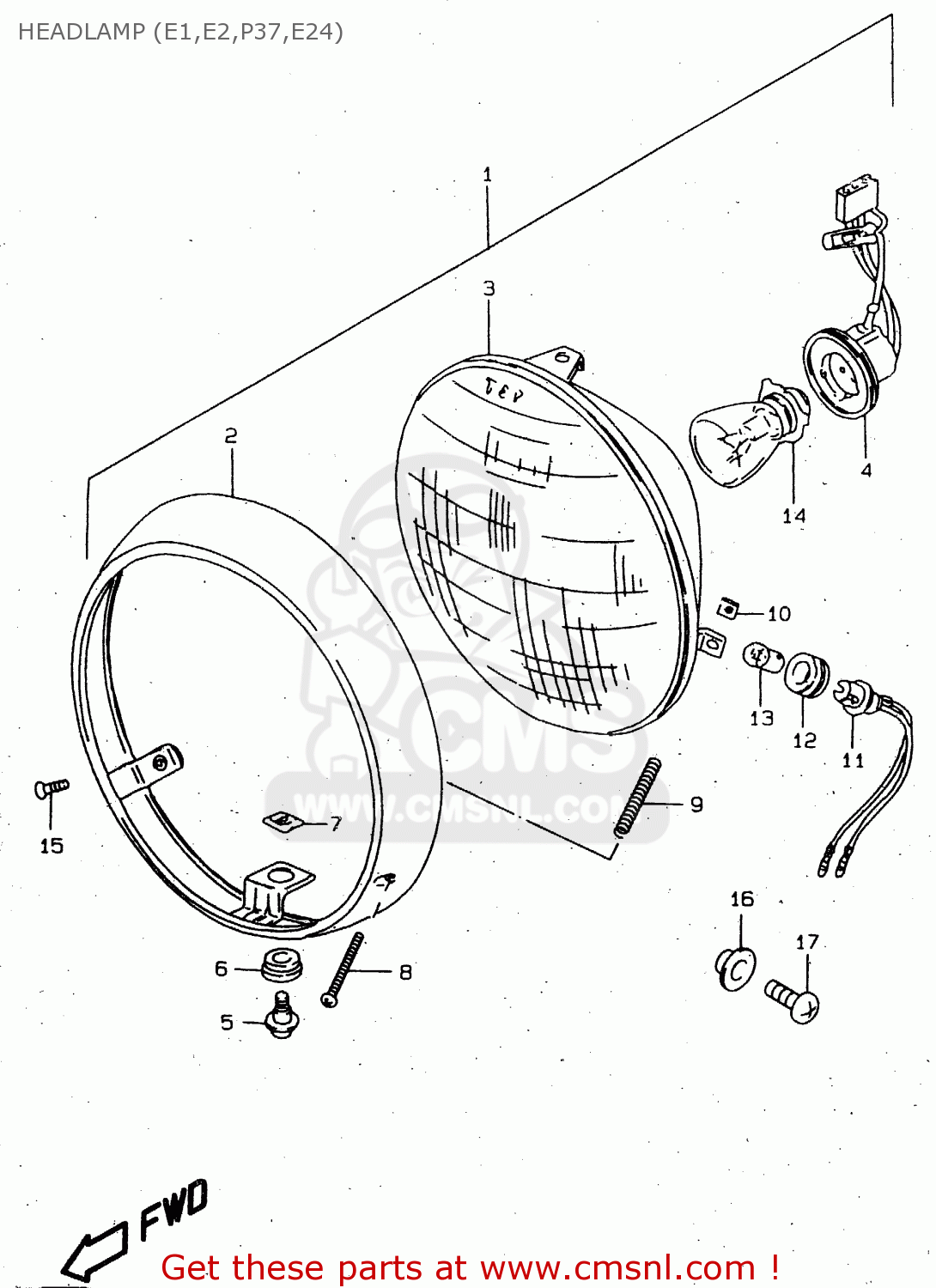

Headlamp (e1,e2,p37,e24) diagram GN250E 1996 (T) GENERAL (E01)

HEADLAMP (E1,E2,P37,E24) GN250E 1996 (T) GENERAL (E01)
HEADLAMP (E1,E2,P37,E24) GN250E 1996 (T) GENERAL (E01)
HEADLAMP (E1,E2,P37,E24) GN250E 1996 (T) GENERAL (E01)
prices are in EUR
ref
part #
description
quantity
1
3510038300
ref: 1
E1,E2,P37
HEADLAMP ASSY
3510038300
€ 130.00
1
3510038360999
ref: 1
E24
HEADLAMP ASSY
€ 0.00
2
3511145231
ref: 2
RIM
3511145231
€ 50.00
3
3512138300
ref: 3
E1,E2,P37
LAMP UNIT
€ 60.50
3
3512138360
ref: 3
E24
LAMP UNIT
€ 0.00
4
3517136X50
ref: 4
E1,E2,P37
SOCKET,HEADLAMP
3517136X50
€ 15.50
4
3517338A00
ref: 4
E24
COVER,SOCKET
3517338A00
€ 12.50
5
3513638A00
ref: 5
SCREW,MOUNTING
3513638A00
€ 2.50
6
3513945230
ref: 6
CUSHION
3513945230
€ 1.50
7
3515548510
ref: 7
NUT
3515548510
€ 2.00
8
3515138300
ref: 8
SCREW
€ 2.50
9
3515448510
ref: 9
SPRING
3515448510
€ 2.50
10
3513545600
ref: 10
NUT
3513545600
€ 3.00
11
3611849320
ref: 11
SOCKET
3611849320
€ 12.00
12
3611622630
ref: 12
JOINT,RUBBER
3611622630
€ 5.00
13
0947112001
ref: 13
E1,E2,P37
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
13
0947112063
ref: 13
E24
BULB(12V4W)
0947112063
€ 6.00
14
0947112044
ref: 14
E1,E2,P37
BULB
€ 8.50
14
0947112060
ref: 14
E24
BULB(12V60/55W,H4)
0947112060
€ 8.00
15
0212205127
ref: 15
SCREW
0212205127
€ 2.50
16
0916905008
ref: 16
WASHER
0916905008
€ 3.00
17
0214205087
ref: 17
SCREW
0214205087
€ 2.00
