REAR COMBINATION LAMP (E1,E2,E4,E24,E34,P37,E71)

GN250E 1996 (T) GENERAL (E01)

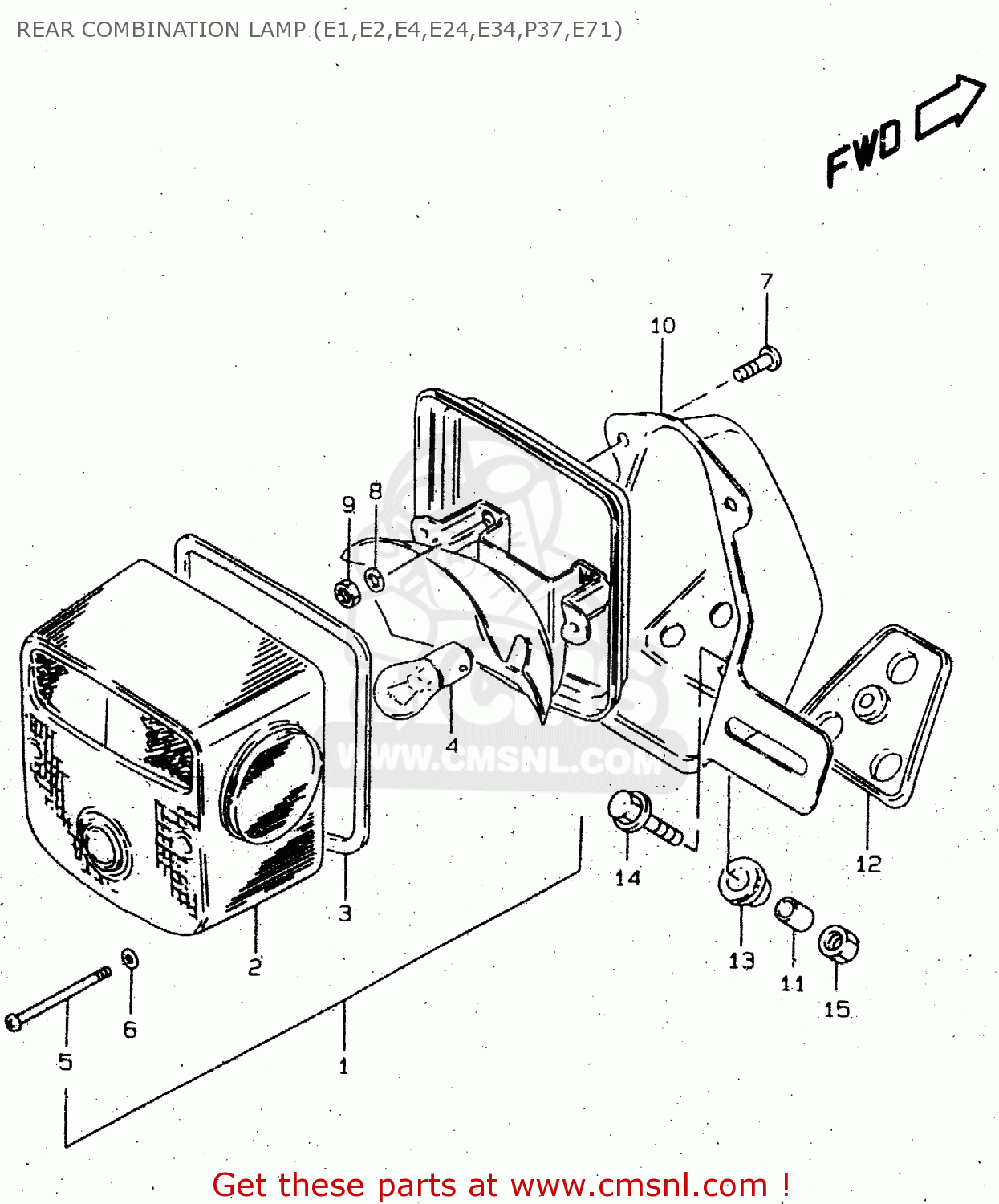

Rear combination lamp (e1,e2,e4,e24,e34,p37,e71) diagram GN250E 1996 (T) GENERAL (E01)

prices are in EUR

ref

part #

description

quantity

3572038350
ref: 1
E2,E4,E24,E34,E71

LAMP UNIT,RR COMBNATION

€ 138.00

3572005311999
ref: 1
E1,P37

LAMP UNIT, TAIL

€ 115.50

3571238350
ref: 2
E2,E4,E24,E34,E71

LENS

€ 66.00

3571248624
ref: 2
E1,P37

LENS,RR COMBIN

€ 66.00

3571330510
ref: 3

GASKET (NAS)

€ 6.00

0947112083
ref: 4
E2,E4,E24,E34,E71

BULB(12V21/5W)

€ 6.00

0947112035
ref: 4
E1,P37

BULB(12V23W)

€ 5.50

0912504002
ref: 5

SCREW (4X55)

€ 1.50

3562743010
ref: 6

GASKET (NAS)

€ 2.00

0211206127
ref: 7

SCREW

€ 2.00

0832101067
ref: 8

WASHER,LOCK

€ 2.50

0831000067
ref: 9

NUT

€ 2.50

3573038310
ref: 10

BRACKET UNIT,TAIL LAMP

€ 57.50

3576626470
ref: 11

SPACER

€ 2.00

3576526470
ref: 12

CUSHION

€ 10.00

3576426470
ref: 13

CUSHION

€ 2.50

0911606167
ref: 14

BOLT(6X20)

€ 2.00

0831000063
ref: 15

NUT 6MM

€ 2.00
