Buy Suzuki GN Parts Online


FUEL COCK (MODEL T/W)

GN250E 1996 (T) GENERAL (E01)

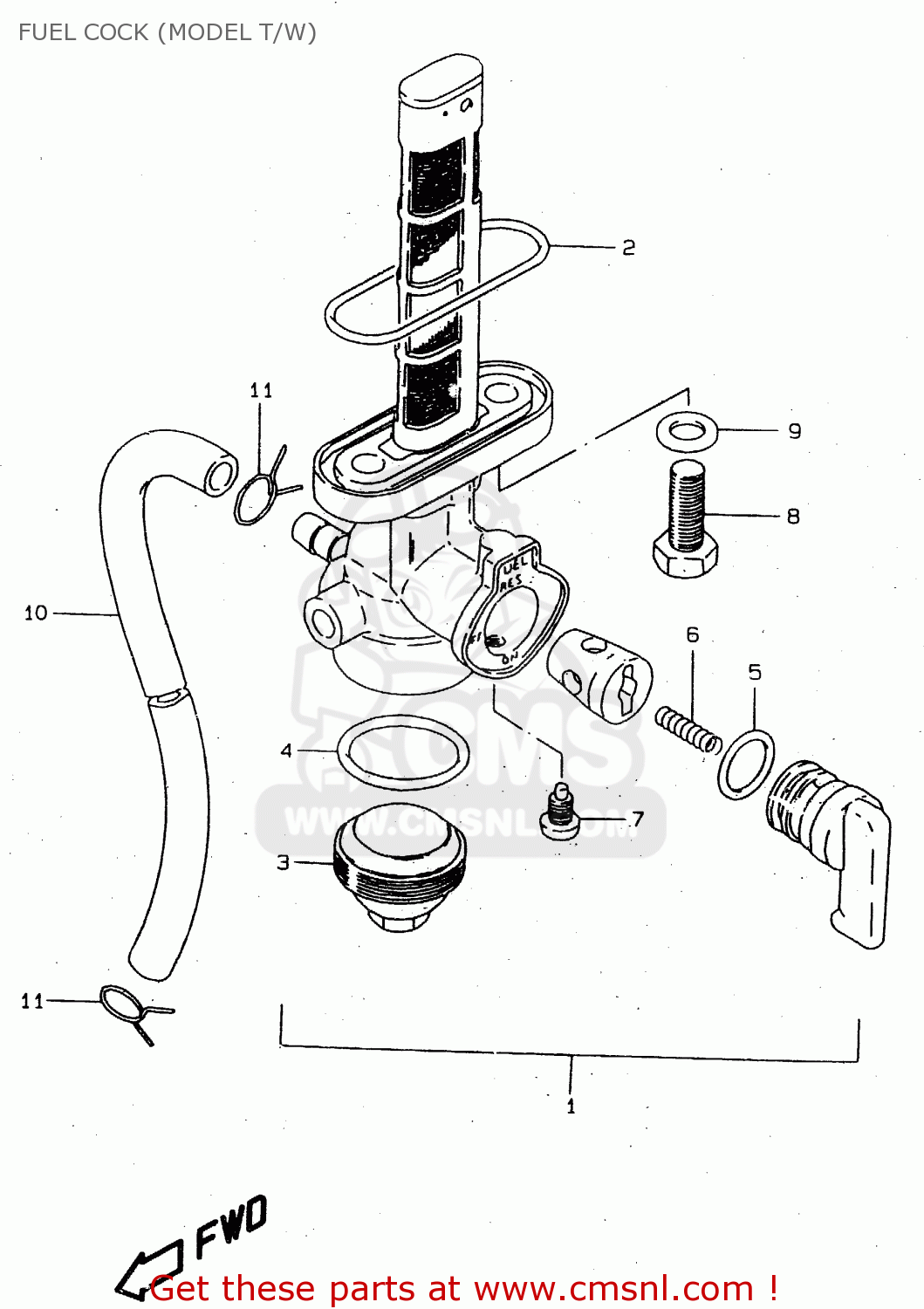

Fuel cock (model t/w) diagram GN250E 1996 (T) GENERAL (E01)

FUEL COCK (MODEL T/W) GN250E 1996 (T) GENERAL (E01)
FUEL COCK (MODEL T/W) GN250E 1996 (T) GENERAL (E01)
FUEL COCK (MODEL T/W) GN250E 1996 (T) GENERAL (E01)
prices are in EUR
ref
part #
description
quantity
1
4430022075
ref: 1
COCK ASSEMBLY,FUEL
4430022075
€ 65.50
2
4434828070
ref: 2
O RING,FUEL COCK
4434828070
€ 4.50
3
4434728071
ref: 3
CUP,STRAINER
4434728071
€ 7.50
4
4434628070
ref: 4
GASKET,FILTER (NAS)
4434628070
€ 2.50
5
4435312C01
ref: 5
O RING,LEVER
4435312C01
€ 7.50
6
4435732470
ref: 6
SPRING
4435732470
€ 2.00
7
4434341370
ref: 7
SCREW
4434341370
€ 2.00
8
0912806057
ref: 8
BOLT(6X20)
0912806057
€ 2.00
9
0916806026
ref: 9
GASKET(6.4X11.5X0.8) (NAS)
0916806026
€ 3.50
10
0935250823600
ref: 10
HOSE(5X8.2X600)
0935250823600
€ 13.00
11
0940108401
ref: 11
CLIP
0940108401
€ 1.50
