CHAIN CASE - SHOCK ABSORBER
GN400T 1982 (Z) USA (E03)

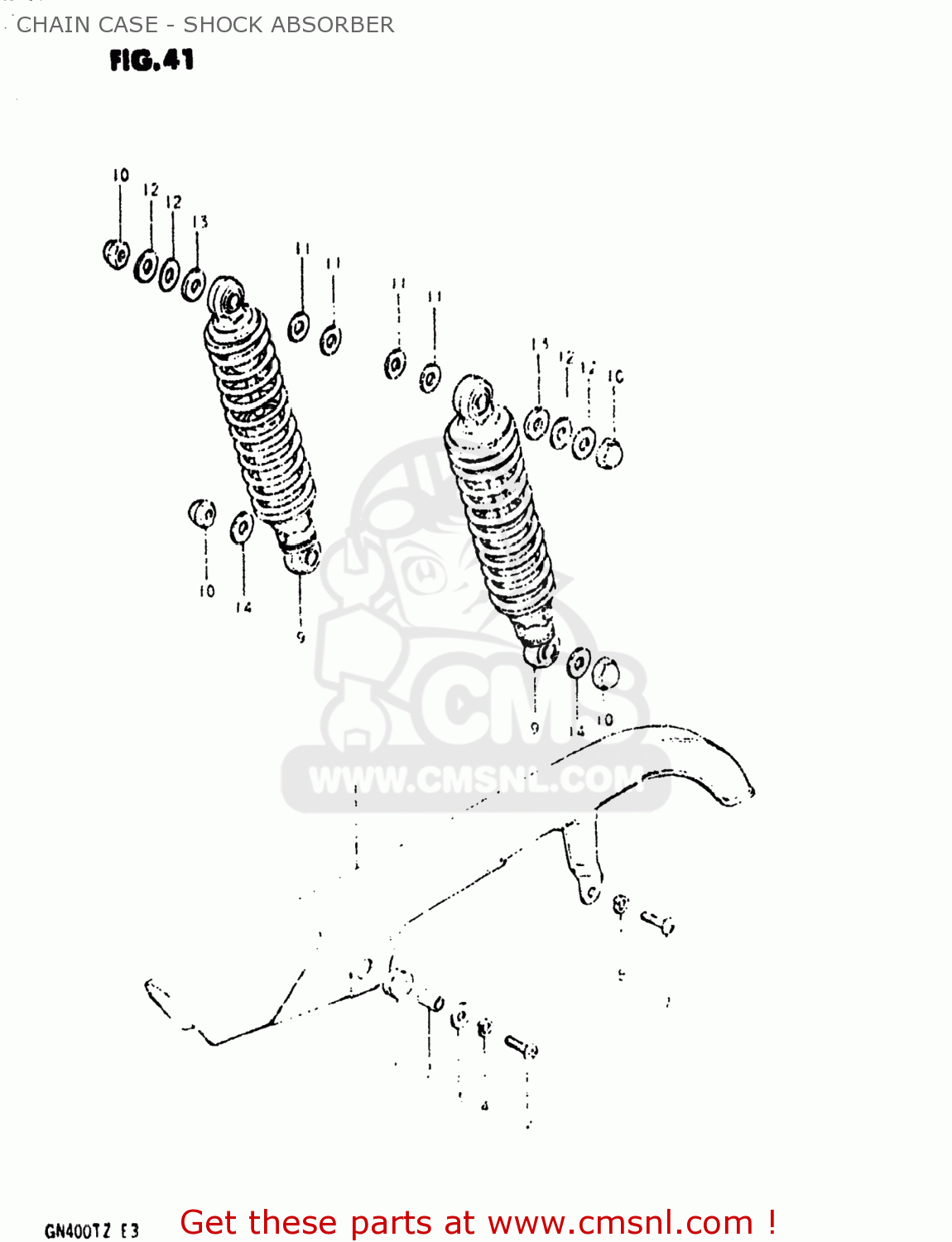

Chain case - shock absorber diagram GN400T 1982 (Z) USA (E03)
CHAIN CASE - SHOCK ABSORBER GN400T 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6131037302
ref: 1
CASE,CHAIN
€ 49.50
2
0211206168
ref: 2
02112-06167
SCREW
€ 2.50
3
0916006027
ref: 3
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5
0918007005
ref: 5
09180-06259
SPACER (7X9X7)
€ 2.50
6
0932008007
ref: 6
09320-08021
CUSHION
€ 4.00
7
0211206168
ref: 7
02112-06167
SCREW
€ 2.50
8
0832121068
ref: 8
08321-01067
LOCK WASHER
€ 2.50
9
6210037320
ref: 9
62100-37300
ABSORBER ASSEMBLY,REAR SHOCK
€ 162.00
10
0831311108
ref: 10
08313-10107
NUT, LOWER LH
€ 2.50
11
0832211128
ref: 11
08322-01127
WASHER
€ 2.00
12
0916010001
ref: 12
09160-10093
WASHER
€ 2.00
13
0916010033
ref: 13
09160-10128-XC0
WASHER(10.5X24X3.2)
€ 2.00
14
0916010001
ref: 14
09160-10093
WASHER
€ 2.00
