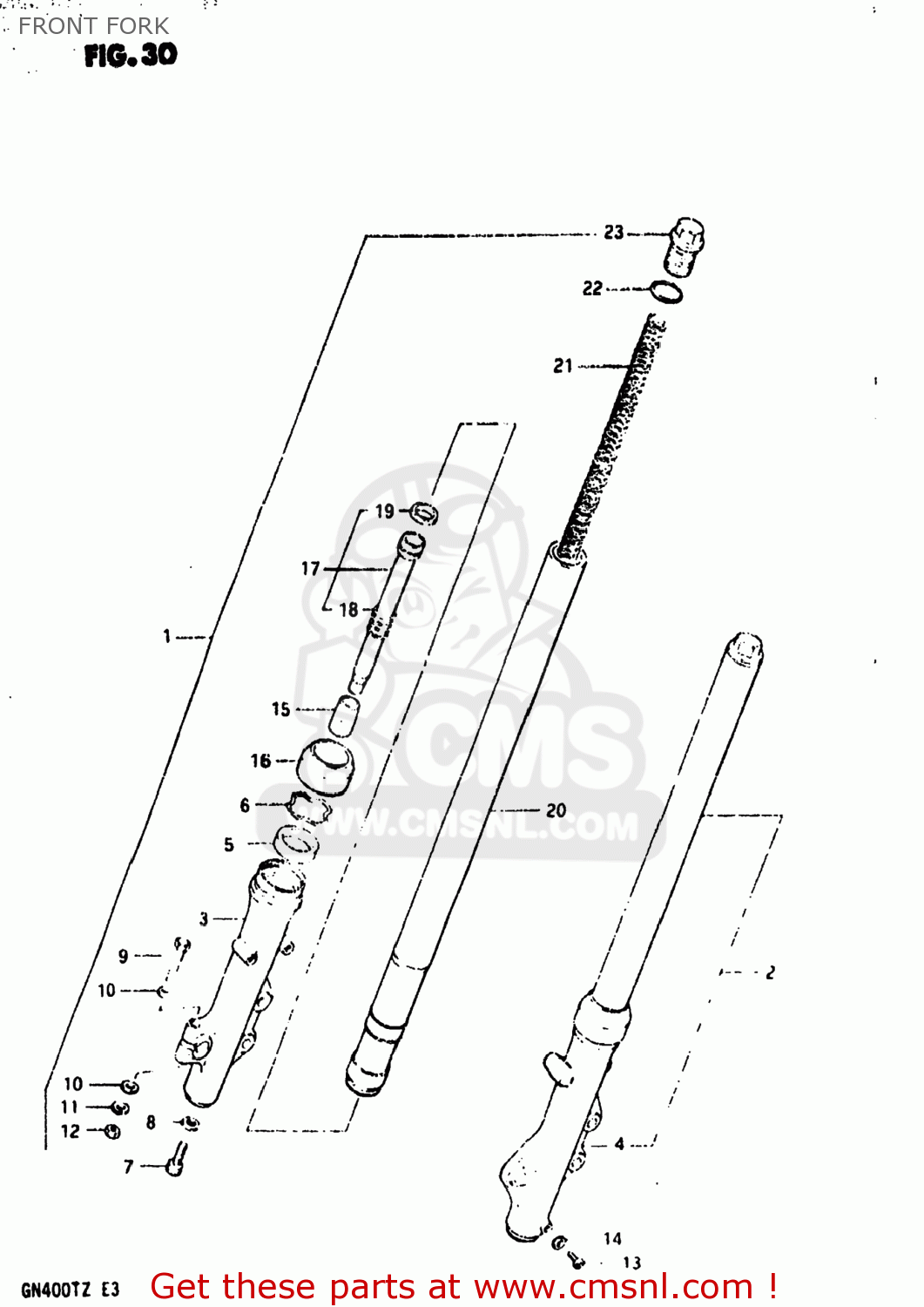

FRONT FORK

ref

part #

description

quantity

1

5110337320
ref: 1

DAMPER ASSEMBLY,RIGHT

€ 155.00

2

5110437320
ref: 2

DAMPER ASSEMBLY,LEFT

€ 155.00

3

5113037300
ref: 3

TUBE,OUTER,RIGHT

€ 131.00

4

5114037300
ref: 4

TUBE,OUTER,LEFT

€ 99.50

5

5115345420
ref: 5
51153-40A00

OIL SEAL,FRONT FORK

€ 15.00

6

5115630400
ref: 6

5115630400

7

5114716510
ref: 7

BOLT,FORK CYLINDER(10X25)

€ 3.50

8

5114841310
ref: 8

GASKET (NAS)

€ 2.50

9

0110708508
ref: 9
01500-08507

BOLT 8X50

€ 3.00

10

0832221088
ref: 10
08322-01087

WASHER

€ 2.00

11

0832131088
ref: 11
08321-01087

WASHER,LOCK,8.

€ 2.00

12

0831012088
ref: 12
08310-00087

NUT

€ 2.00

13

0211204088
ref: 13
02112-04087

SCREW

€ 1.50

14

5118303010
ref: 14

GASKET,DRAIN,PLUG (NAS)

€ 3.00

15

5119549071
ref: 15

PIECE,OIL LOCK

€ 12.00

16

5117345420
ref: 16

SEAL,DUST

€ 14.50

17

5114637300
ref: 17

CYLINDER,FRONT FORK

€ 20.00

18

5117737300
ref: 18

SPRING,FORK REBOUND

€ 3.00

19

5119637300
ref: 19

RING,FRONT FORK PISTON

€ 3.00

20

5111037320
ref: 20

TUBE,FORK,INNER

€ 62.00

21

5117137320
ref: 21

SPRING,FRONT FORK

€ 15.50

22

5118118510
ref: 22

O-RING,FORK FITTING BOLT

€ 4.50

23

5135145420
ref: 23

BOLT,FORK

€ 21.00

all assemblies
