FRAME
GN400T 1982 (Z) USA (E03)

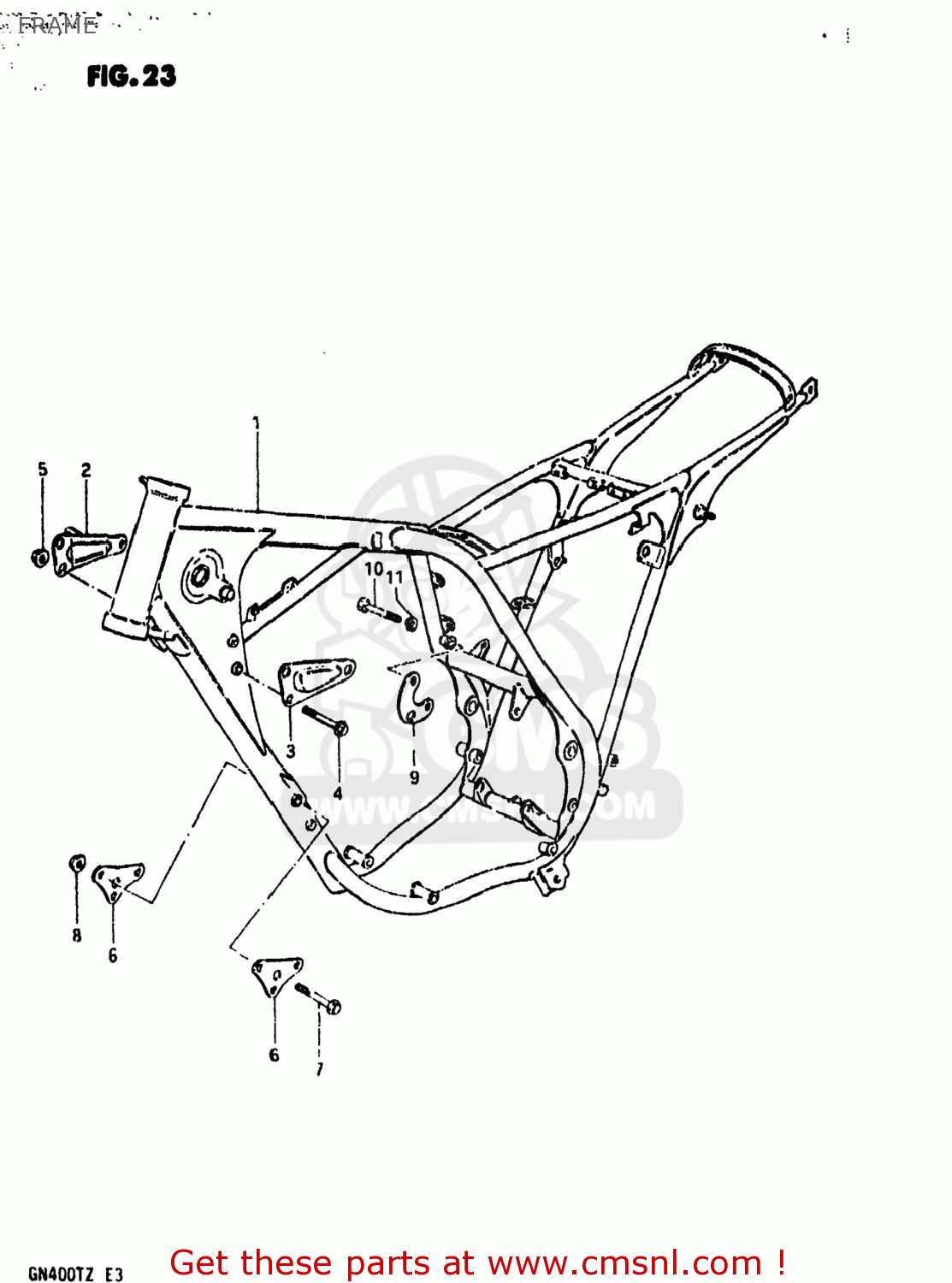

Frame diagram GN400T 1982 (Z) USA (E03)
FRAME GN400T 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110037301019
ref: 1
FRAME
€ 313.00
2
4191037300
ref: 2
PLATE,ENGINE MOUNTING,UPPER
€ 9.50
3
4199232401
ref: 3
PLATE,ENGINE MOUNTING
€ 0.00
4
0151706708
ref: 4
01550-06707
BOLT (6X70)
€ 3.00
5
0831931068
ref: 5
08319-31067
NUT
€ 2.50
6
4199332400
ref: 6
PLATE,ENGINE MOUNTING
€ 6.50
7
0151708708
ref: 7
01550-08707
BOLT (8X70)
€ 2.00
8
0831931088
ref: 8
08319-3108A
NUT
€ 2.50
9
4199437200
ref: 9
PLATE,ENGINE MOUNTING
€ 10.00
10
0110708558
ref: 10
01500-08557
BOLT 8X55
€ 3.00
11
0832121088
ref: 11
08321-01087
LOCK WASHER
€ 2.00
