RIGHT HANDLE SWITCH
GN400T 1982 (Z) USA (E03)

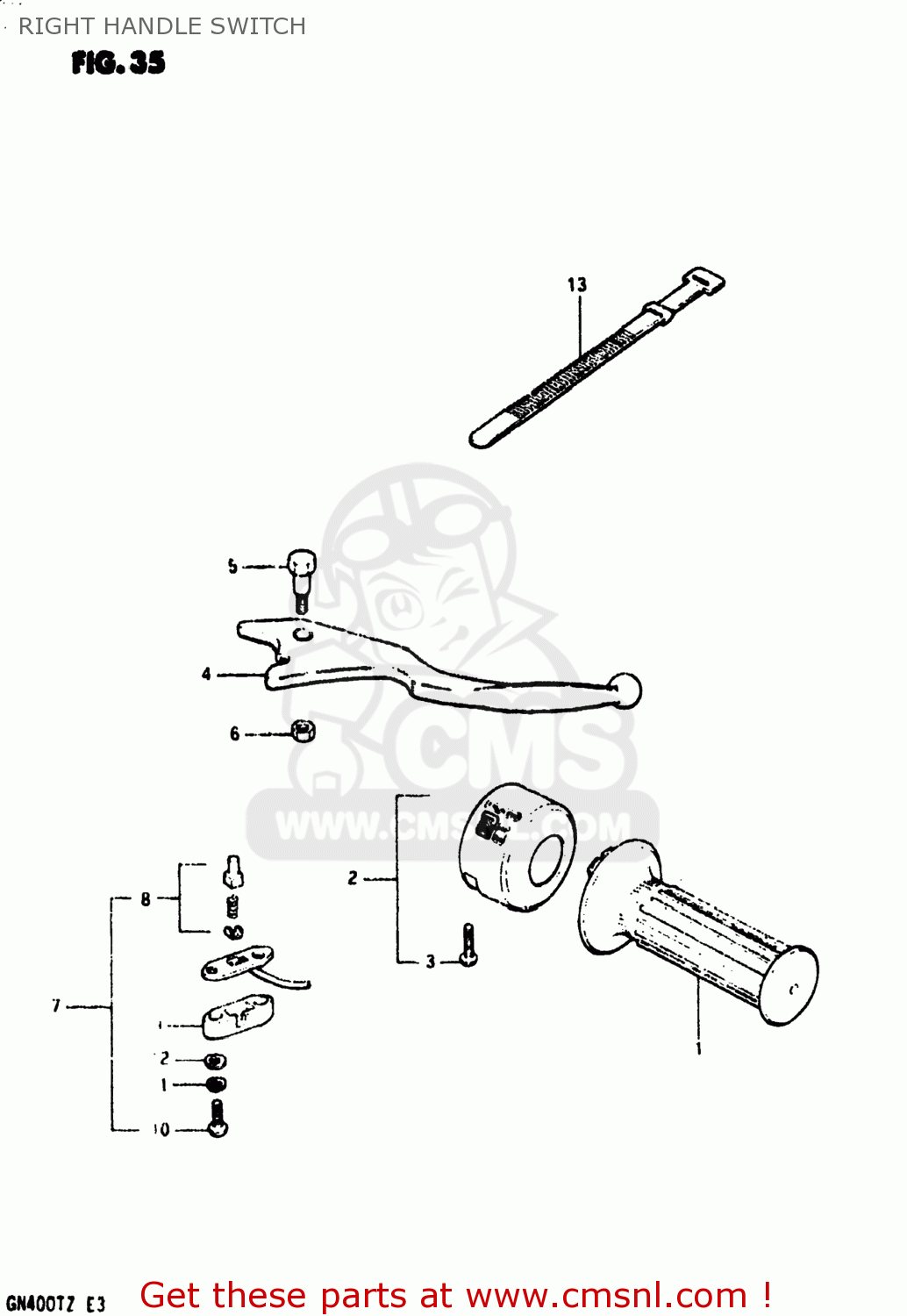

Right handle switch diagram GN400T 1982 (Z) USA (E03)
RIGHT HANDLE SWITCH GN400T 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711030501
ref: 1
GRIP,THROTTLE
€ 22.50
2
5710037300
ref: 2
CASE ASSEMBLY,THROTTLE
€ 20.00
3
0211205258
ref: 3
02112-05257
SCREW
€ 2.00
4
5742049101
ref: 4
LEVER,BRAKE
€ 36.50
5
5743118621
ref: 5
BOLT
€ 8.00
6
0831921068
ref: 6
08319-2106A
NUT 6MM
€ 2.00
7
5746049300
ref: 7
57460-45500
SWITCH ASSEMBLY
€ 40.00
8
5746518601
ref: 8
CONTACT,SWITCH
€ 4.50
9
5748133010
ref: 9
COVER,FR BK TERMINAL BASE
€ 19.50
10
0912503105
ref: 10
09125-03105-XC0
SCREW
€ 2.50
11
0832121038
ref: 11
09162-03001
LOCK WASHER
€ 1.50
12
0832221038
ref: 12
08322-01037
WASHER
€ 2.00
13
0940712402
ref: 13
CLAMP(L:120)
€ 3.00
