Buy Suzuki GN Parts Online
home
CYLINDER
GN400T 1982 (Z) USA (E03)

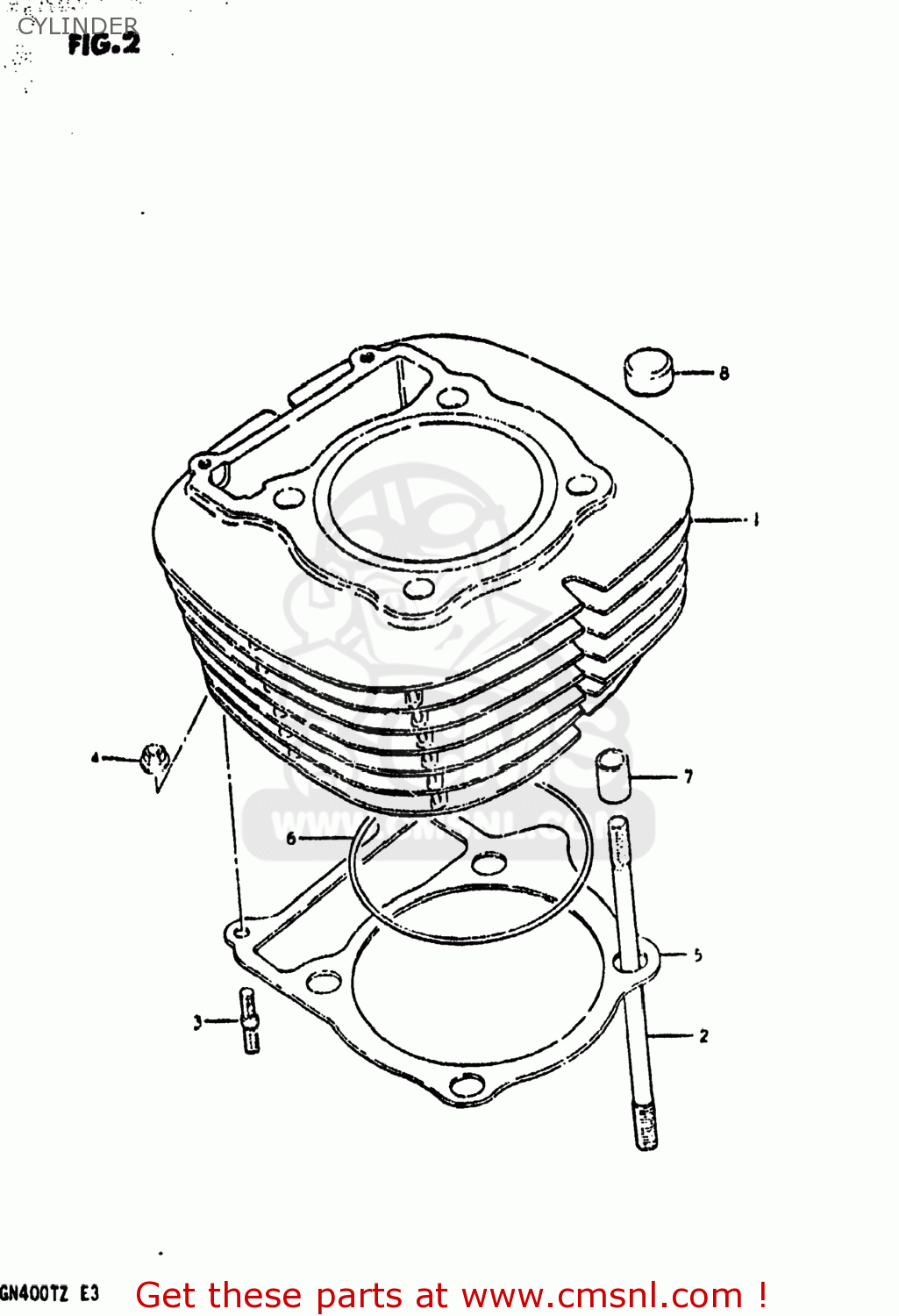

Cylinder diagram GN400T 1982 (Z) USA (E03)
CYLINDER GN400T 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1121037111
ref: 1
CYLINDER
€ 247.00
2
0910810024
ref: 2
09108-10097
STUD
€ 10.00
3
0142106208
ref: 3
01421-0620A
STUD 6X20
€ 2.50
4
0831616068
ref: 4
08319-31067
NUT
€ 2.50
5
1124137100
ref: 5
11241-37100-H17
GASKET,CYLINDER (MCA)
€ 9.00
6
0928087001
ref: 6
O RING(D:2,ID:87)
€ 5.00
7
0920613001
ref: 7
04211-13189
PIN
€ 2.50
8
1125238001
ref: 8
PAD,CYLINDER HEAD
€ 3.50
