CYLINDER

GP100 1978 (C) (E01 E02 E06 E13 E14 E24 E30)

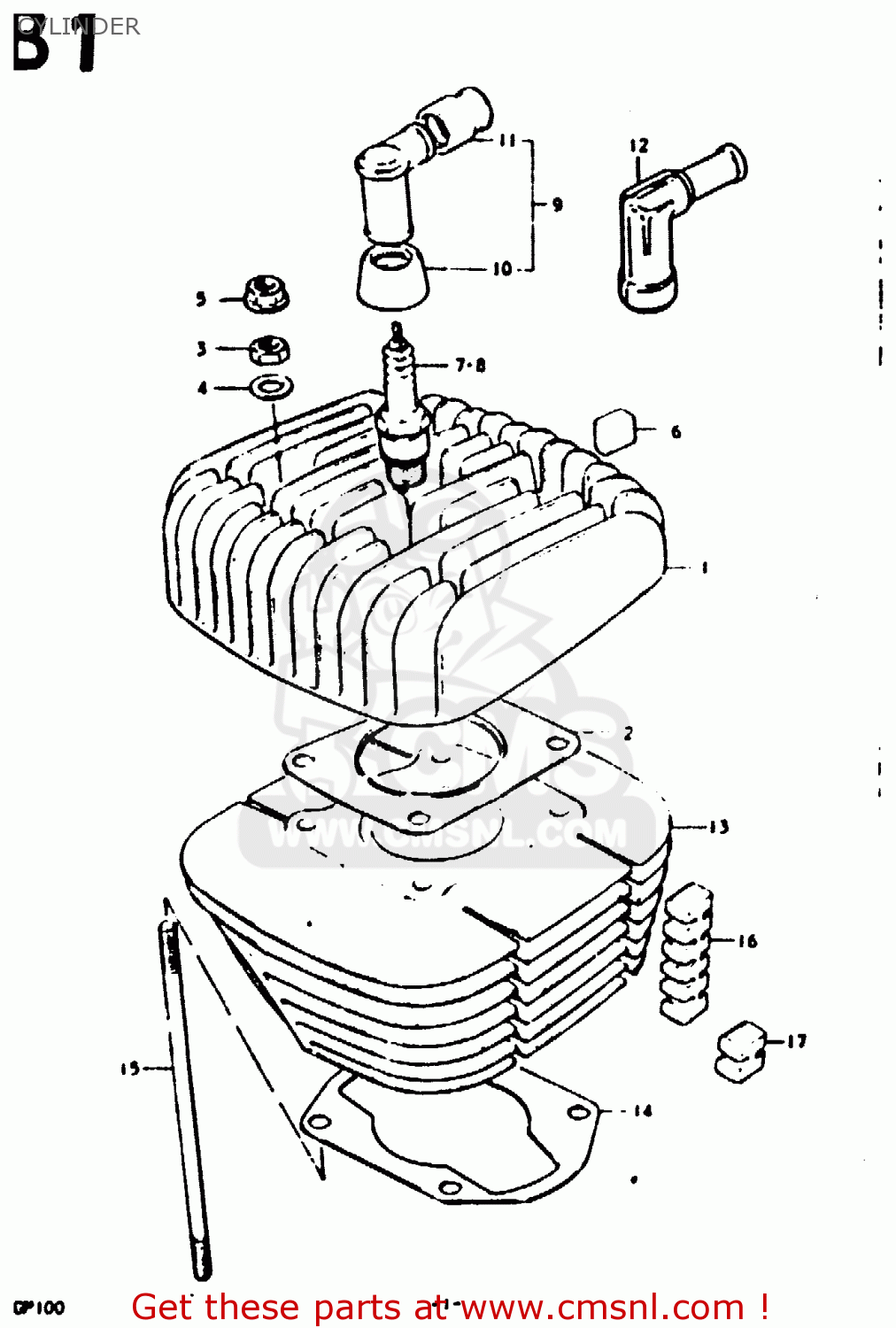

Cylinder diagram GP100 1978 (C) (E01 E02 E06 E13 E14 E24 E30)

prices are in EUR

ref

part #

description

quantity

1-1

1111139212
ref: 1-1
(N, UN = E2, E24)

HEAD,CYLINDER

€ 0.00

1114139211
ref: 2

GASKET, CYLINDER HEAD (MCA)

€ 12.00

0914008005
ref: 3

NUT (8MM)

€ 1.50

0832221088
ref: 4

WASHER

€ 2.00

1125225000
ref: 6

PAD,CYLINDER

€ 5.00

7-1

0948200057
ref: 7-1

SPARK PLUG

€ 3.50

8-1

0948200058
ref: 8-1

SPARK PLUG W24FS

€ 4.00

12-1

3351022610
ref: 12-1
E2

CAP,SPARK PLUG

€ 61.50

1121039212
ref: 13

CYLINDER

€ 0.00

1124139101
ref: 14

GASKET, CYLINDER (MCA)

€ 6.50

0910808028
ref: 15

BOLT,STUD

€ 5.50

1125139100
ref: 16

RUBBER PAD, CYLINDER (1)

€ 6.50

1125139110
ref: 17

PAD,CYLINDER

€ 6.50

CYLINDER
