SPEEDOMETER - TACHOMETER (E2)

GP100 1978 (C) (E01 E02 E06 E13 E14 E24 E30)

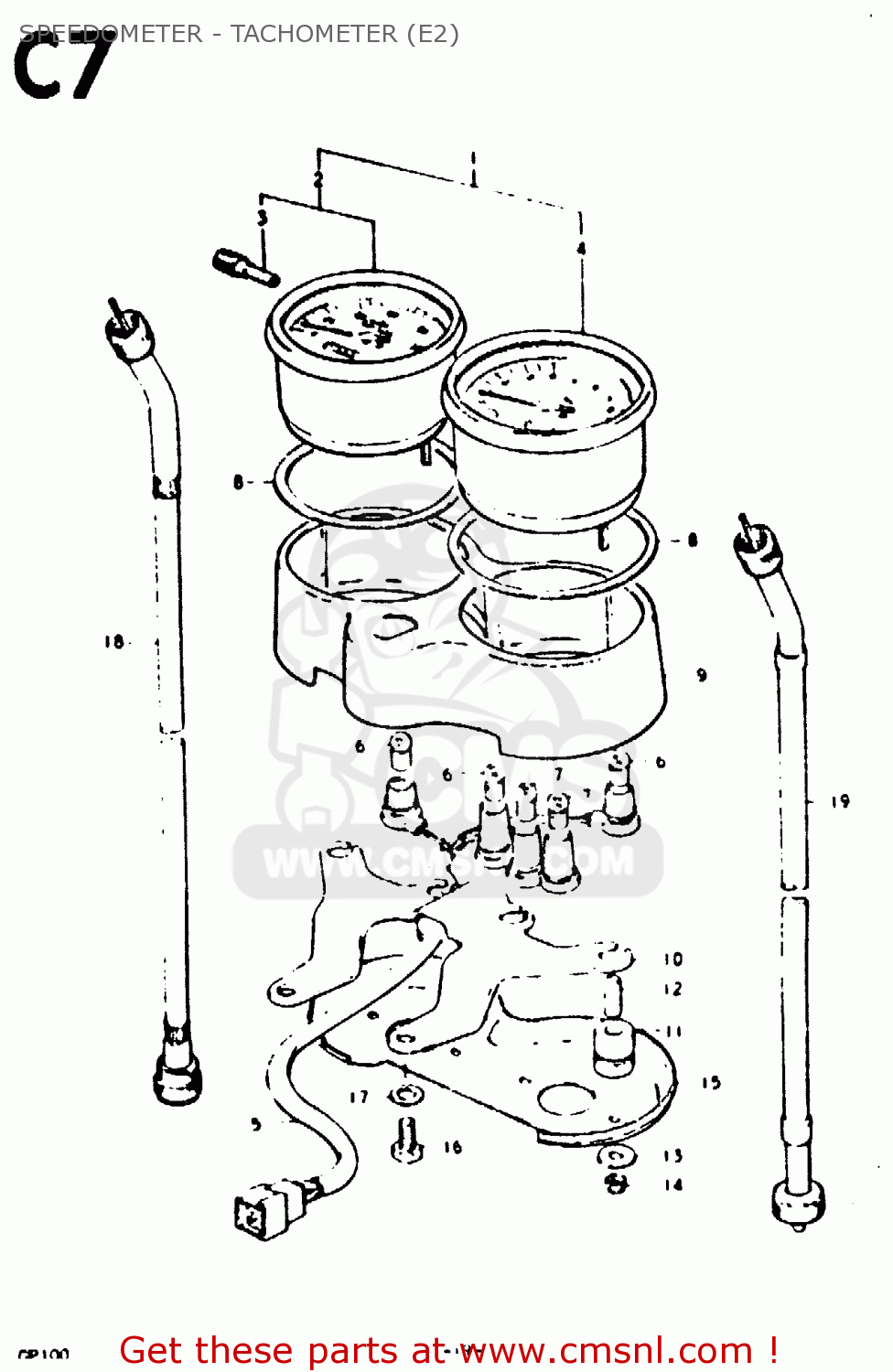

Speedometer - tachometer (e2) diagram GP100 1978 (C) (E01 E02 E06 E13 E14 E24 E30)

prices are in EUR

ref

part #

description

quantity

1-1

3410039651
ref: 1-1
TO 34100-39652

SPEEDOMETER & TACHOMETER ASSY

€ 233.50

2-1

3411039651
ref: 2-1
TO 34110-39652

SPEEDOMETER ASSY

€ 0.00

3412439111
ref: 3

KNOB,TRIP METER

€ 9.00

4-1

3421039111
ref: 4-1
TO 34210-39113

TACHOMETER ASSY

€ 199.50

3417339110
ref: 5

SOCKET

€ 28.50

0947106001
ref: 6

BULB(6V1.7W,STANLEY,A61A)

€ 2.50

0947106002
ref: 7

BULB(6V/3W)

€ 2.50

3419639110
ref: 8

GASKET, METER

€ 3.00

3415139110
ref: 9

CASE, METER

€ 27.50

3495139110
ref: 10

BRACKET

€ 26.50

3418939110
ref: 11

CUSHION

€ 2.00

3418739110
ref: 12

SPACER

€ 3.00

13-1

3418128310
ref: 13-1
TO 34181-30520

WASHER,METER

€ 1.50

3418528310
ref: 14

NUT

€ 2.00

3419339110
ref: 15

UNDER PLATE

€ 20.00

0110708128
ref: 16

BOLT 8X12

€ 2.50

0832211088
ref: 17

WASHER

€ 2.00

18-1

3491039131
ref: 18-1

CABLE ASSY, SPEEDOMETER

€ 52.50

19-2

3494039131
ref: 19-2

CABLE ASSY, TACHOMETER

€ 50.50
