FRAME

GP100 1978 (C) (E01 E02 E06 E13 E14 E24 E30)

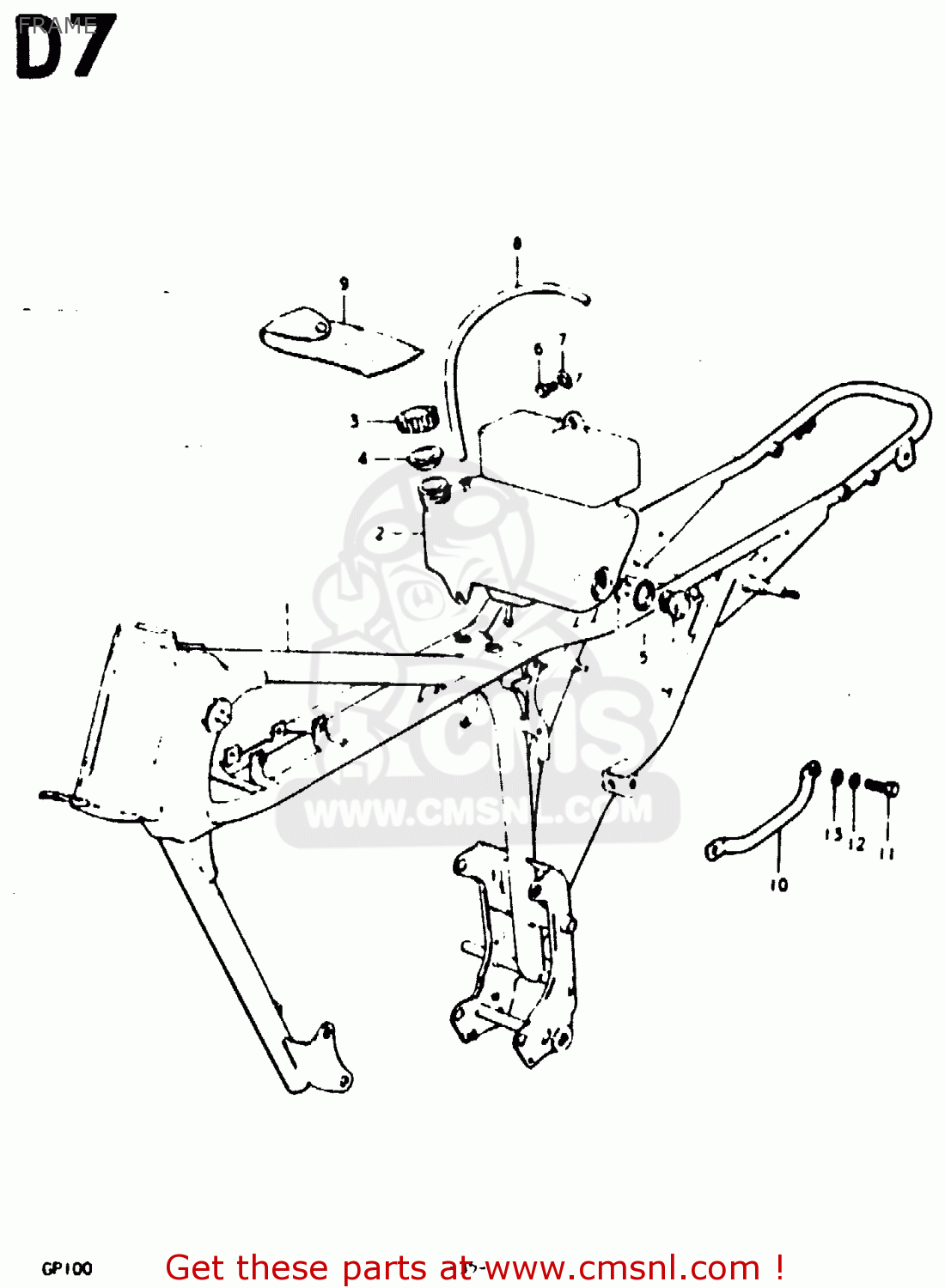

Frame diagram GP100 1978 (C) (E01 E02 E06 E13 E14 E24 E30)

FRAME GP100 1978 (C) (E01 E02 E06 E13 E14 E24 E30)

FRAME GP100 1978 (C) (E01 E02 E06 E13 E14 E24 E30)

prices are in EUR

ref

part #

description

quantity

1-1

4110039102019
ref: 1-1
C/UC

FRAME

€ 0.00

2

4461139100
ref: 2

TANK,OIL

€ 48.50

3

4465105003
ref: 3
FROM 44651-05002

CAP,OIL TANK

€ 4.00

4

4466127000
ref: 4

GASKET,OIL TANK CAP (NAS)

€ 27.50

5

4460046810
ref: 5

LENS SET,OIL LEVEL

€ 6.50

6

0110706168
ref: 6

BOLT, UPPER

€ 3.00

7

0916006007
ref: 7

WASHER

€ 2.00

8

0934405005
ref: 8

HOSE

€ 10.00

9

0980000108
ref: 9
*

TOOL SET

€ 43.50
