SEAT

GP100 1978 (C) (E01 E02 E06 E13 E14 E24 E30)

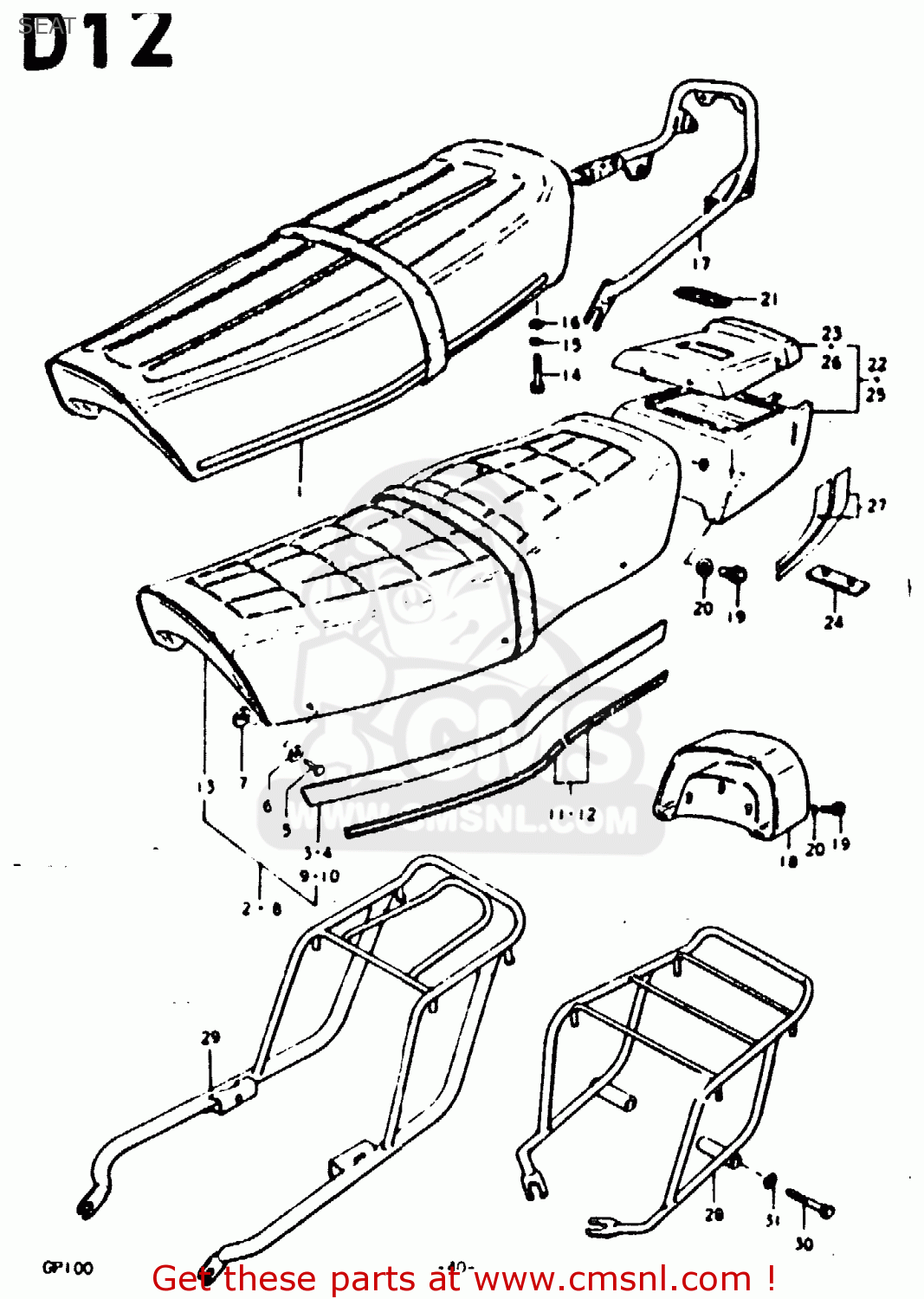

Seat diagram GP100 1978 (C) (E01 E02 E06 E13 E14 E24 E30)

SEAT GP100 1978 (C) (E01 E02 E06 E13 E14 E24 E30)
SEAT GP100 1978 (C) (E01 E02 E06 E13 E14 E24 E30)
SEAT GP100 1978 (C) (E01 E02 E06 E13 E14 E24 E30)
prices are in EUR
ref
part #
description
quantity
1-1
4510039101B65
ref: 1-1
LEATHER PATTERN
SEAT ASSY (TYPE:MOLD)
€ 0.00
14
0110708408
ref: 14
BOLT 8X40
0110708408
€ 3.00
15
0832121088
ref: 15
LOCK WASHER
0832121088
€ 2.00
16
0832211088
ref: 16
WASHER
0832211088
€ 2.00
17
4158039101
ref: 17
BAR, REAR COMBINATION LAMP
4158039101
€ 76.00
18-1
455113910003J
ref: 18-1
TAIL COVER, SEAT
€ 0.00
18-2
455113910005J
ref: 18-2
TAIL COVER, SEAT
€ 0.00
19-1
0110405168
ref: 19-1
BOLT
€ 1.50
28
4631039110
ref: 28
OPT
CARRIER, SPORTS
€ 0.00
30
0110706758
ref: 30
OPT
BOLT
€ 3.00
31
0832121068
ref: 31
OPT
LOCK WASHER
0832121068
€ 2.50
