ELECTRICAL (1)

GP100 1978 (C) (E01 E02 E06 E13 E14 E24 E30)

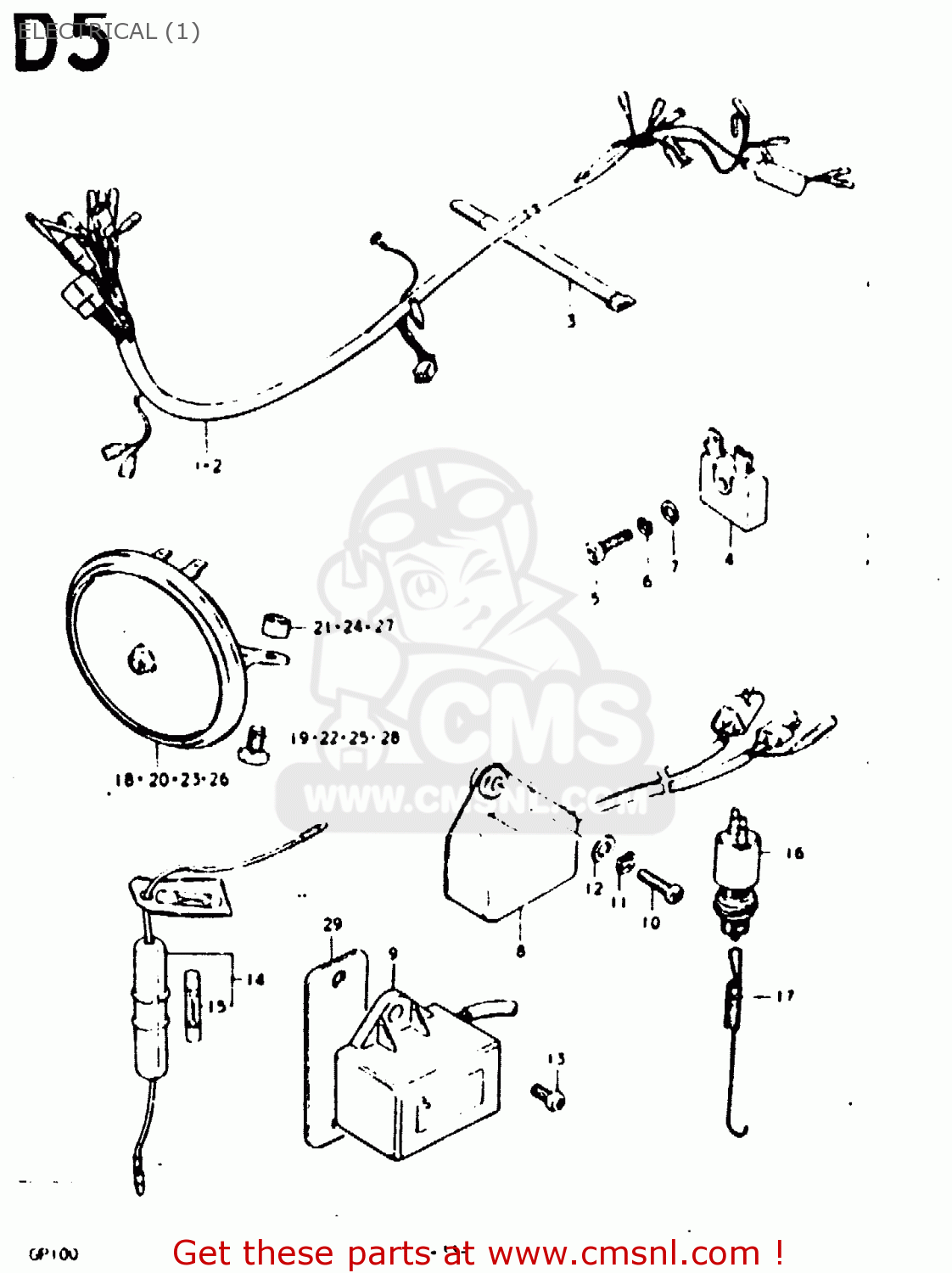

Electrical (1) diagram GP100 1978 (C) (E01 E02 E06 E13 E14 E24 E30)

prices are in EUR

ref

part #

description

quantity

2-1

3661039620
ref: 2-1
E2

WIRING HARNESS

€ 0.00

3-1

0940718301
ref: 3-1

CLAMP

€ 6.00

3-2

0940711302
ref: 3-2

CLAMP

€ 6.00

3280019063
ref: 4

RECTIFIER ASSEMBLY

€ 10.50

5-1

0211205166
ref: 5-1

SCREW

€ 2.00

3290039210
ref: 8

C.D.I UNIT ASSY

€ 0.00

0211206208
ref: 10

SCREW

€ 2.00

0832121068
ref: 11

LOCK WASHER

€ 2.50

0832221068
ref: 12

WASHER

€ 2.00

3674035011
ref: 14

BOX ASSEMBLY,FUSE

€ 11.00

0948110001
ref: 15

FUSE(10A)

€ 2.00

3761053011
ref: 16

SWITCH ASSY,BRAKE LAMP

€ 34.50

0944306016
ref: 17

SPRING

€ 2.50

18-1

3850039130
ref: 18-1
TO 38500-39131

HORN ASSY

€ 48.00

0110706108
ref: 19

BOLT

€ 2.00

ELECTRICAL (1)

all assemblies
