AIR CLEANER

GS1100G 1985 (F) GENERAL EXPORT (E01)

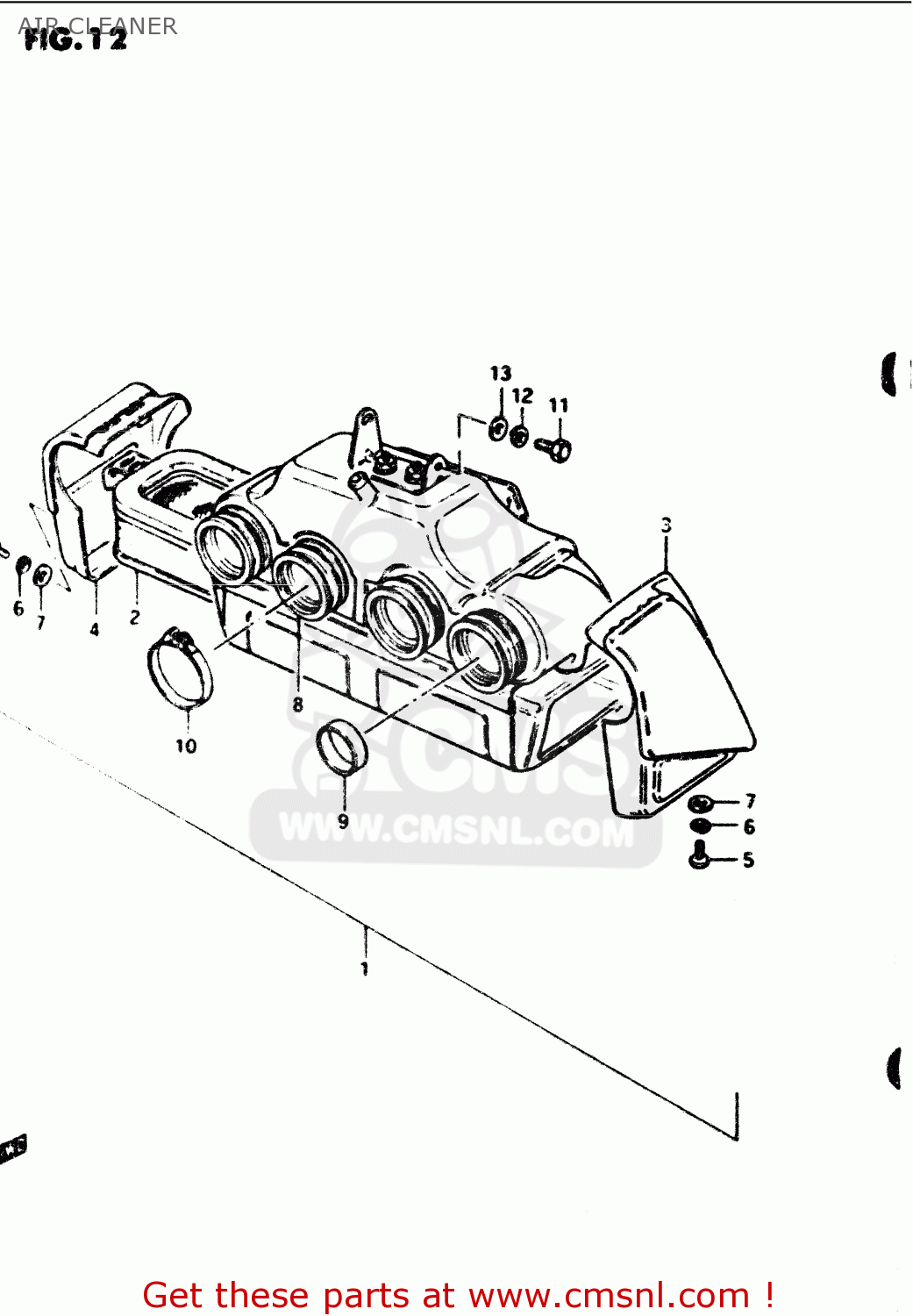

Air cleaner diagram GS1100G 1985 (F) GENERAL EXPORT (E01)

AIR CLEANER GS1100G 1985 (F) GENERAL EXPORT (E01)

AIR CLEANER GS1100G 1985 (F) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1370045122
ref: 1

CLEANER ASSEMBLY,AIR

€ 317.50

2

1378049070
ref: 2

FILTER ASSY

€ 90.00

3

1374045100
ref: 3

CAP,AIR CLEANER

€ 44.50

4

1375045100
ref: 4

CAP,AIR CLEANER

€ 43.50

5

0211205128
ref: 5

SCREW

€ 2.50

6

0832121058
ref: 6

LOCK WASHER

€ 2.00

7

0832221058
ref: 7

WASHER

€ 2.50

8

1388149080
ref: 8

TUBE,OUTLET

€ 14.00

9

1388533200
ref: 9

RING,CARBURETOR AIR IN

€ 9.00

10

0940262208
ref: 10

CLAMP

€ 6.00

11

0110706128
ref: 11

BOLT

€ 2.00

12

0832121068
ref: 12

LOCK WASHER

€ 2.50

13

0832221068
ref: 13

WASHER

€ 2.00
