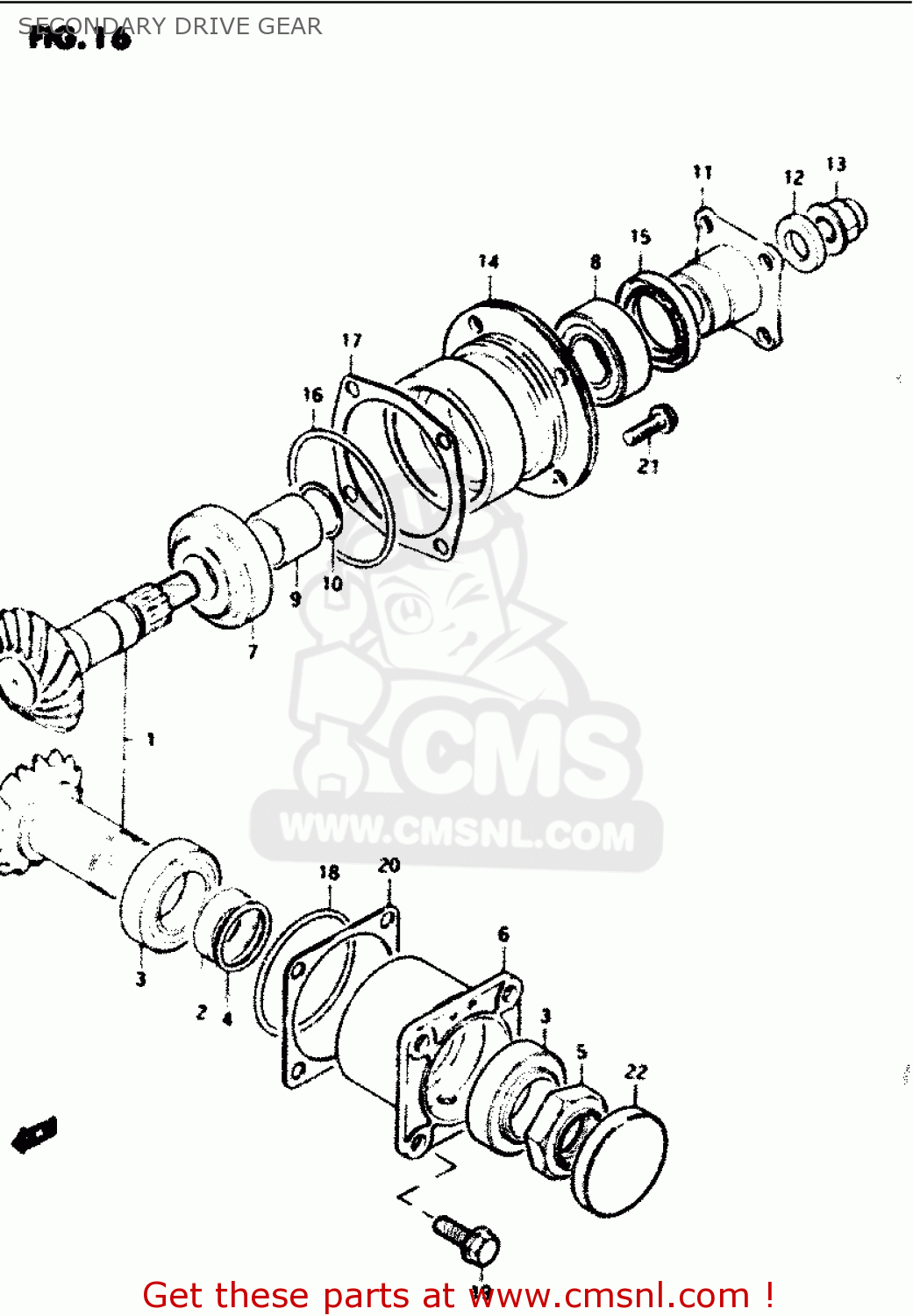

SECONDARY DRIVE GEAR

ref

part #

description

quantity

0

2490049820
ref: 0

2ND GEAR & HOUSING SET

€ 538.00

1

2490049811
ref: 1
NT16/17

SECONDARY GEAR SET

€ 1,687.50

2

0918032003
ref: 2

SPACER (32.4X38X12.5)

€ 6.00

3

0926532001
ref: 3

BEARING(32X58X17)

€ 46.00

4-1

0918132001
ref: 4-1

SHIM (32X38X1.6)

€ 4.50

4-2

0918132002
ref: 4-2

SHIM(32X38X1.62)

€ 4.00

4-3

0918132003
ref: 4-3

SHIM (32X38X1.64)

€ 3.00

4-4

0918132004
ref: 4-4

SHIM (32X38X1.66)

€ 3.50

4-5

0918132005
ref: 4-5

SHIM (32X38X1.68)

€ 3.00

4-6

0918132006
ref: 4-6

SHIM (32X38X1.7)

€ 4.00

4-7

0918132007
ref: 4-7

SHIM (32X38X1.8)

€ 3.00

4-8

0918132008
ref: 4-8

SHIM (32X38X1.9)

€ 4.00

4-9

0918132009
ref: 4-9

SHIM(32X38X2)

€ 4.50

5

0915932001
ref: 5

NUT

€ 9.50

6

2493149001
ref: 6

HOUSING,SECONDARY DRIVE

€ 57.00

7

0926525012
ref: 7

TAPER,ROLLER BEARING

€ 52.50

8

0926525011
ref: 8

BEARING

€ 44.00

9

0918025056
ref: 9

SPACER (25.2X30X40)

€ 7.00

10-1

0918125006
ref: 10-1

SHIM (25X30X1.6)

€ 3.00

10-2

0918125007
ref: 10-2

SHIM (25X30X1.62)

€ 3.00

10-3

0918125008
ref: 10-3

SHIM (25X30X1.64)

€ 3.00

10-4

0918125009
ref: 10-4

SHIM (25X30X1.66)

€ 3.00

10-5

0918125010
ref: 10-5

SHIM (25X30X1.68)

€ 3.00

10-6

0918125011
ref: 10-6

SHIM (25X30X1.7)

€ 3.00

10-7

0918125012
ref: 10-7

SHIM (25X30X1.8)

€ 3.00

10-8

0918125013
ref: 10-8

SHIM (25X30X1.9)

€ 3.00

10-9

0918125014
ref: 10-9

SHIM (25X30X2

€ 3.00

11

2495149100
ref: 11

FLANGE,UNIVERSAL JOINT

€ 68.00

12

0916014021
ref: 12

WASHER(14X29X4)

€ 5.00

13

0915914010
ref: 13

NUT

€ 11.00

14

2494145101
ref: 14

HOUSING,SECONDARY DRIVE

€ 76.50

15

0928335018
ref: 15

SEAL,OIL(35X52X9)

€ 13.00

16

0928070005
ref: 16

O RING(D:3.1,ID:69.4)

€ 6.50

17-1

2494545101
ref: 17-1

SHIM,DRIVEN GEAR HOUSING

€ 4.00

17-2

2494545100
ref: 17-2

SHIM,DRIVEN GEAR HOUSING

€ 4.00

17-3

2494545102
ref: 17-3

SHIM,DRIVEN GEAR HOUSING

€ 4.50

17-4

2494545103
ref: 17-4

SHIM,DRIVEN GEAR HOUSING

€ 4.50

17-5

2494545104
ref: 17-5

SHIM,DRIVEN GEAR HOUSING

€ 4.00

18

0928063004
ref: 18

O RING(D:2.4,ID:62.6)

€ 9.50

19

0151708208
ref: 19

BOLT

€ 3.00

20-1

2493545101
ref: 20-1

SHIM,SECONDARY DRIVE

€ 5.00

20-2

2493545100
ref: 20-2

SHIM,SECONDARY DRIVE

€ 13.00

20-3

2493545102
ref: 20-3

SHIM,SECONDARY DRIVE

€ 13.00

20-4

2493545103
ref: 20-4

SHIM,DRIVE GEAR HOUSING

€ 5.50

20-5

2493545104
ref: 20-5

SHIM,SECONDARY DRIVE

€ 4.50

21

0151708258
ref: 21

BOLT

€ 2.50

22

0924158001
ref: 22

PLUG

€ 15.00
