TURN SIGNAL LAMP (E2, E4, E15, E16, E17, E18, E22, E26)

GS1100G 1985 (F) GENERAL EXPORT (E01)

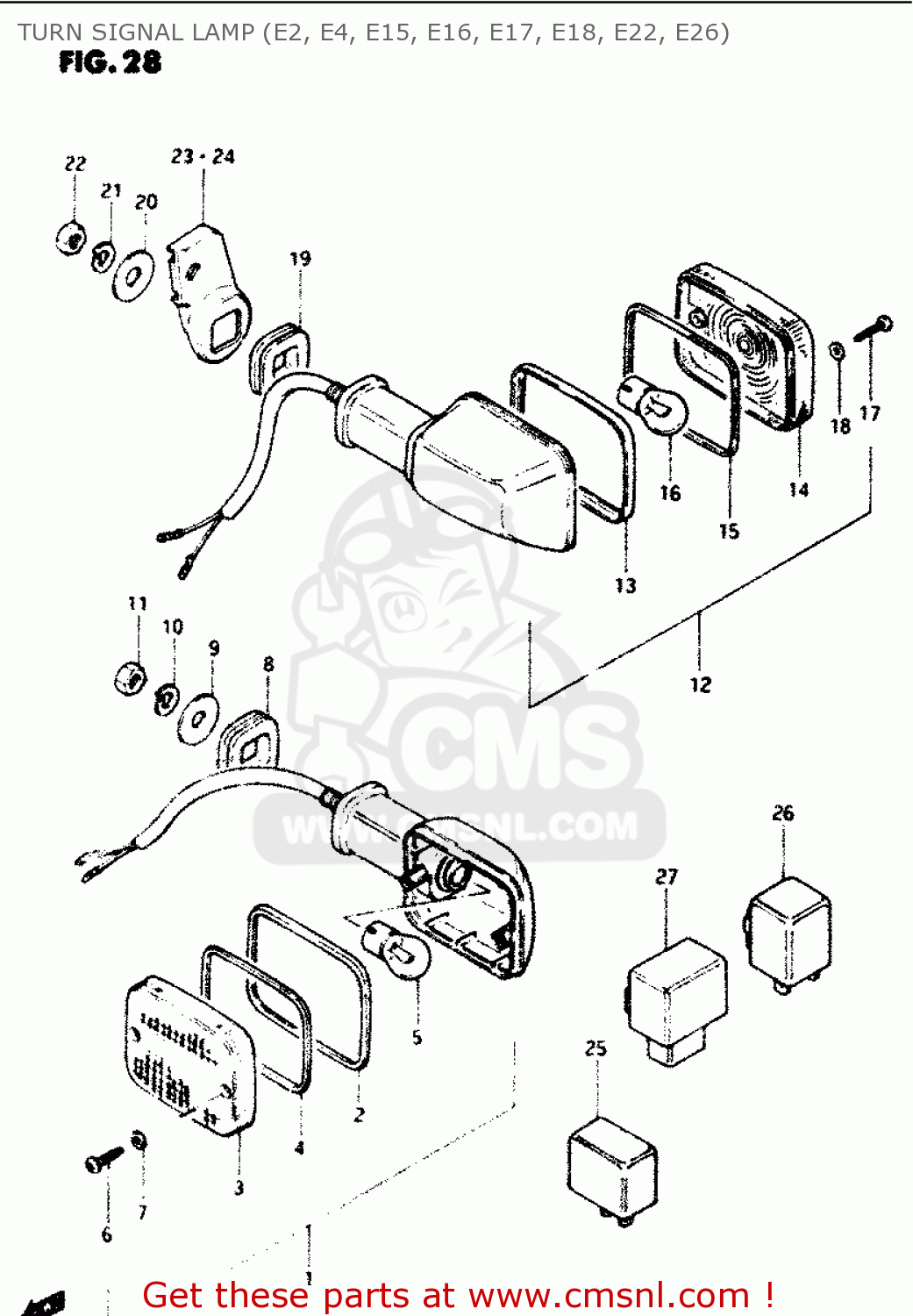

Turn signal lamp (e2, e4, e15, e16, e17, e18, e22, e26) diagram GS1100G 1985 (F) GENERAL EXPORT (E01)

TURN SIGNAL LAMP (E2, E4, E15, E16, E17, E18, E22, E26) GS1100G 1985 (F) GENERAL EXPORT (E01)
TURN SIGNAL LAMP (E2, E4, E15, E16, E17, E18, E22, E26) GS1100G 1985 (F) GENERAL EXPORT (E01)
TURN SIGNAL LAMP (E2, E4, E15, E16, E17, E18, E22, E26) GS1100G 1985 (F) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
3560145180
ref: 1-1
MODEL E/F E2,E17
LAMP ASSY, FRONT TURN SIGNAL
3560145180
€ 86.50
1-2
3560145170
ref: 1-2
MODEL G E2,E17
LAMP ASSY, FRONT TURN SIGNAL
€ 76.00
1-3
3560145120
ref: 1-3
E4
LAMP ASSY,FR TURN SIGNAL
3560145120
€ 102.00
1-4
3560145180
ref: 1-4
E15,E16,E18,E22,E26
LAMP ASSY, FRONT TURN SIGNAL
3560145180
€ 86.50
2
3561149230
ref: 2
RIM
3561149230
€ 11.00
3-1
3561249231
ref: 3-1
LENS
3561249231
€ 13.00
3-2
3561245170
ref: 3-2
MODEL G E2,E17
LENS
3561245170
€ 9.00
4
3561349230
ref: 4
GASKET (NAS)
3561349230
€ 5.00
5
0947112045
ref: 5
BULB(12V21W)
0947112045
€ 5.00
6
0321104208
ref: 6
SCREW
0321104208
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
3562743010
€ 2.00
8
0932015002
ref: 8
CUSHION
0932015002
€ 4.50
9
0916010006
ref: 9
WASHER (10.5X30X2.3)
0916010006
€ 2.50
10
0832121106
ref: 10
LOCK WASHER
€ 3.00
11
0831012106
ref: 11
NUT
0831012106
€ 2.00
12-1
3560345120
ref: 12-1
MODEL E/F E2,E17
LAMP ASSY, REAR COMBINATION
€ 97.00
12-2
3560345170
ref: 12-2
MODEL G E2,E17
LAMP ASSY, REAR COMBINATION
€ 97.00
12-3
3560345120
ref: 12-3
E4
LAMP ASSY, REAR COMBINATION
€ 97.00
12-4
3560345140
ref: 12-4
MODEL E E15
LAMP ASSY, REAR TURN SIGNAL
€ 0.00
12-5
3560345180
ref: 12-5
MODEL F/G E15
LAMP ASSY, REAR TURN SIGNAL
€ 88.50
12-6
3560345140
ref: 12-6
E16,E18,E26
LAMP ASSY, REAR TURN SIGNAL
€ 0.00
12-7
3560345180
ref: 12-7
E22
LAMP ASSY, REAR TURN SIGNAL
€ 88.50
13
3561149230
ref: 13
RIM
3561149230
€ 11.00
14-1
3565244182
ref: 14-1
LENS
3565244182
€ 13.00
14-2
3565245170
ref: 14-2
MODEL G E2,E17
LENS
3565245170
€ 9.00
15
3561349230
ref: 15
GASKET (NAS)
3561349230
€ 5.00
16
0947112045
ref: 16
BULB(12V21W)
0947112045
€ 5.00
17
0321104208
ref: 17
SCREW
0321104208
€ 1.50
18
3562743010
ref: 18
GASKET (NAS)
3562743010
€ 2.00
19
0932015004
ref: 19
CUSHION
0932015004
€ 5.00
20
0916010006
ref: 20
WASHER (10.5X30X2.3)
0916010006
€ 2.50
21
0832121106
ref: 21
LOCK WASHER
€ 3.00
22
0831012106
ref: 22
NUT
0831012106
€ 2.00
23
3562033211
ref: 23
BRACKET,REAR TURN SIGNAL
3562033211
€ 8.50
24
3564033211
ref: 24
BRACKET,REAR TURN SIGNAL
3564033211
€ 8.50
25
3861049231
ref: 25
RELAY ASSY,TURNSIGNAL
3861049231
€ 71.00
26
3861045091
ref: 26
E22,MODEL G E2
RELAY ASSY,TUR
€ 67.50
27
3883049500
ref: 27
UNIT,TURN SIGNAL CONTROL
€ 269.50
