STARTING MOTOR (MODEL E)

GS1100G 1985 (F) GENERAL EXPORT (E01)

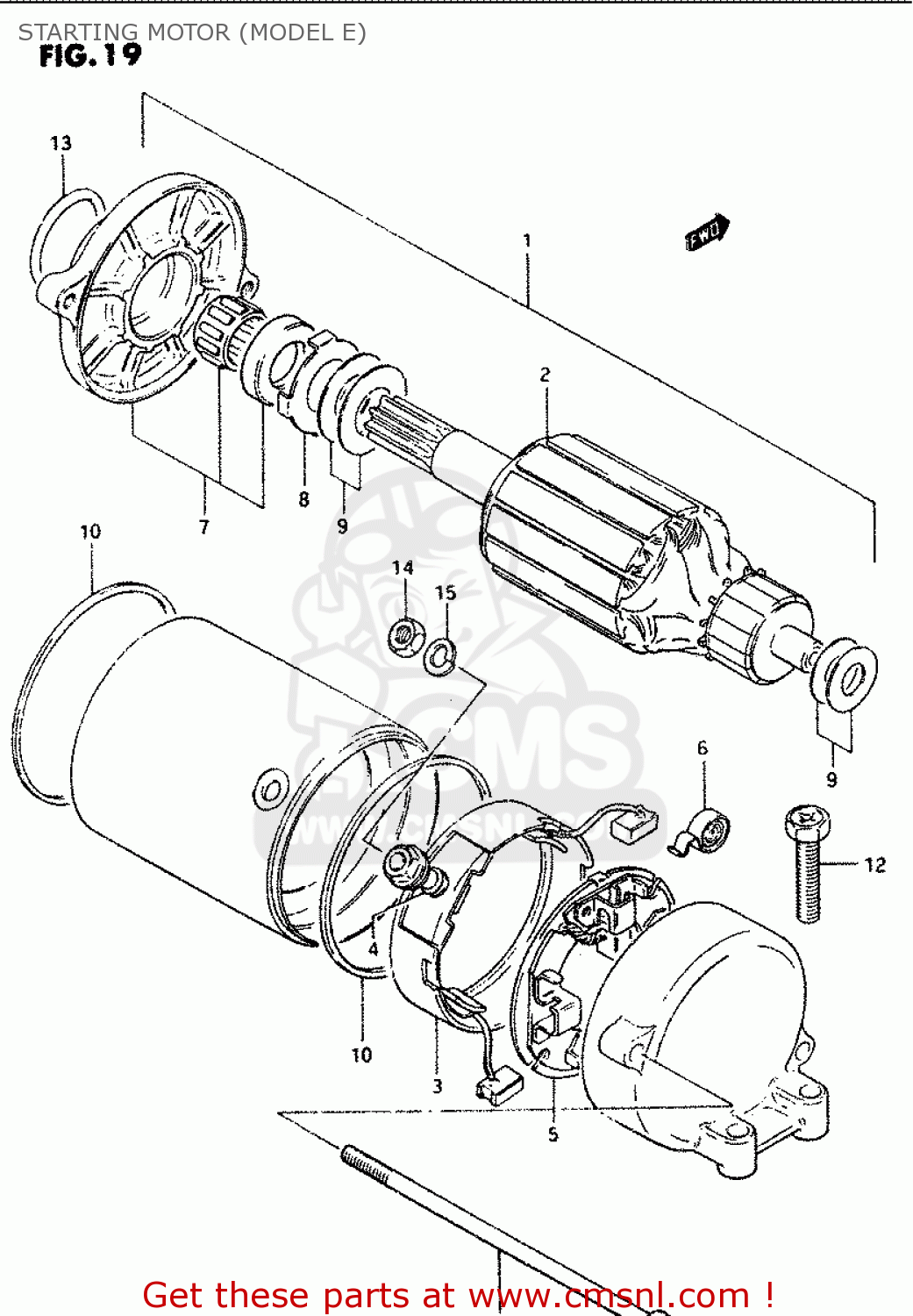

Starting motor (model e) diagram GS1100G 1985 (F) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

3110049040
ref: 1

MOTOR ASSEMBLY,STARTING

€ 873.50

3131149040
ref: 2

ARMATURE

€ 118.50

3113049040
ref: 3

BRUSH TERMINAL SET (+)

€ 54.00

3114349040
ref: 4

O RING

€ 3.00

3113249040
ref: 5

HOLDER,BRUSH

€ 35.50

3113549040
ref: 6

SPRING,BRUSH

€ 5.00

3110049810
ref: 7

HOUSING SET,STARTING MOTOR

€ 80.50

3136049240
ref: 8

SHIM SET

€ 10.50

3136049040
ref: 9

SHIM SET

€ 10.50

3126449040
ref: 10

SEAL,RING

€ 7.50

3128149040
ref: 11

BOLT,STARTING MOTOR HOUSING

€ 7.00

0912806024
ref: 12

SCREW (6X25)

€ 2.50

0928024003
ref: 13

O RING(D:3,ID:24.5)

€ 2.00

0831022066
ref: 14

NUT

€ 2.00

0832121066
ref: 15

WASHER,LOCK

€ 2.00
