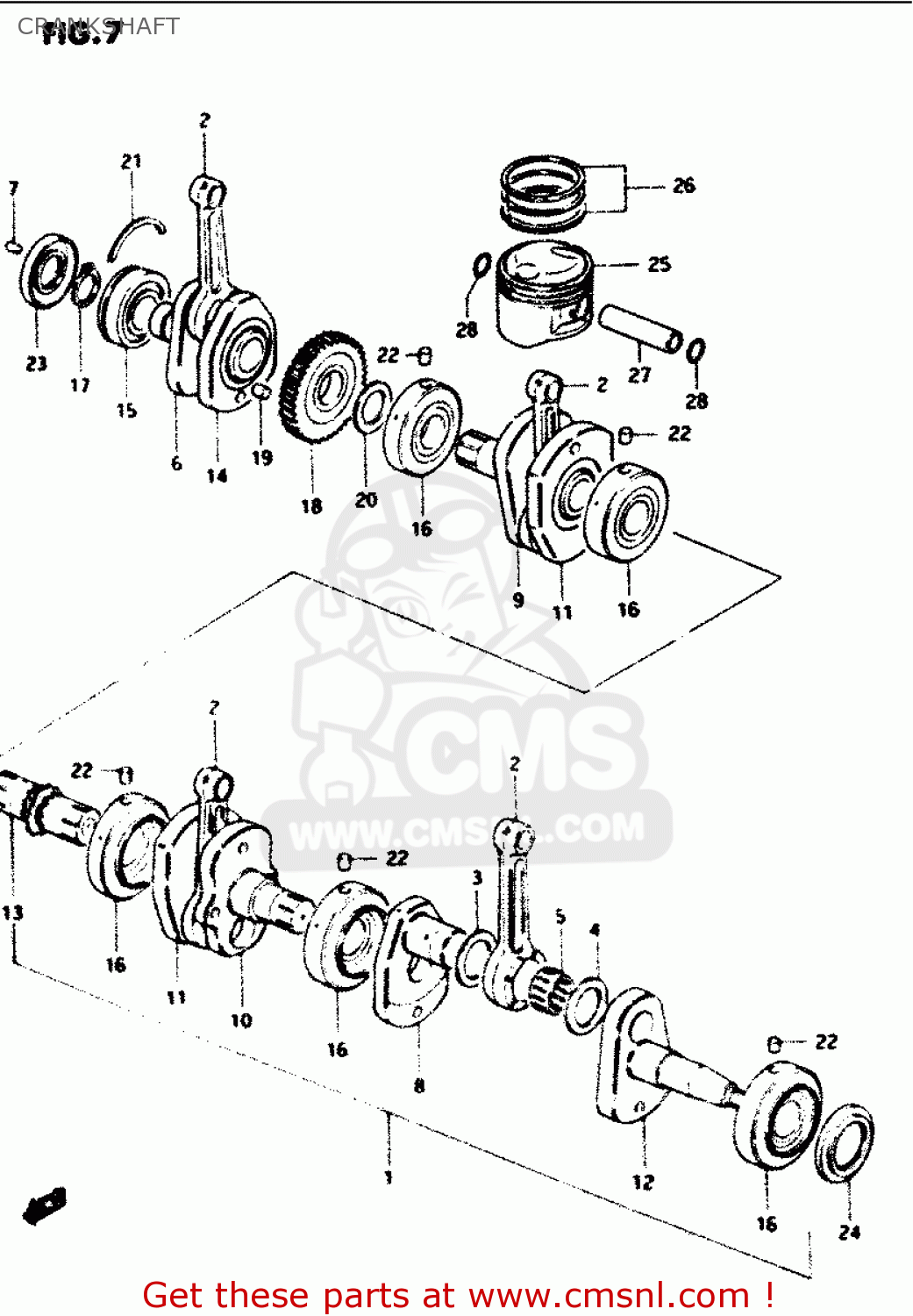

CRANKSHAFT

ref

part #

description

quantity

1

1220049402
ref: 1

CRANKSHAFT ASSEMBLY

€ 2,245.50

2

1216149400
ref: 2

ROD,CONNECTING

€ 92.50

3

0916031002
ref: 3

WASHER(31X48.5X1)

€ 7.00

4

0916031003
ref: 4

WASHER(31X48.5X2)

€ 11.50

5

0926331005
ref: 5

BEARING

€ 53.00

6

1222049202
ref: 6

CRANKSHAFT,RIGHT

€ 153.00

7

0422104089
ref: 7

PIN

€ 1.50

8

1223049201
ref: 8

WEB,CRANK

€ 218.00

9

1224149400
ref: 9

CRANKSHAFT,MIDDLE,RIGHT

€ 0.00

10

1227149202
ref: 10

CRANKSHAFT,MIDDLE,LEFT

€ 89.50

11

1225049201
ref: 11

WEB,CRANK,MIDDLE

€ 153.00

12

1226149302
ref: 12

CRANKSHAFT,LEFT

€ 216.00

13

1228149200
ref: 13

SHAFT,TIMING CHAIN DRIVE

€ 93.50

14

1223149400
ref: 14

WEB,CRANK,RIGHT

€ 0.00

15

0926230033
ref: 15

BEARING(30X72X19)

€ 47.00

16

0926432009
ref: 16
FROM 09264-32008

BEARING(32X72X21)

€ 138.00

17

0833111308
ref: 17

CIRCLIP,30MM

€ 3.00

18

2111049010
ref: 18

GEAR,PRIMARY DRIVE

€ 0.00

19

0422108129
ref: 19

PIN

€ 2.00

20

0916032008
ref: 20

WASHER

€ 0.00

21

0939072004
ref: 21

C RING

€ 3.00

22

0422107129
ref: 22

PIN

€ 1.50

23

0928330021
ref: 23

SEAL,OIL(30X72X11)

€ 22.00

24

0928948002
ref: 24

SEAL,OIL(47.3X60X6.5)

€ 12.00

25-1

1211149403
ref: 25-1

PISTON (72.00MM)

€ 71.00

25-2

1211149403050
ref: 25-2
OPT

PISTON

€ 109.50

25-3

1211149403100
ref: 25-3
OPT

PISTON

€ 134.50

26-1

1214049221
ref: 26-1

RING SET,PISTON

€ 67.00

26-2

1214049221050
ref: 26-2
OPT

RING SET,PISTON (OS:0.5)

€ 59.00

26-3

1214049221100
ref: 26-3
OPT

RING SET,PISTON (OS:1.0)

€ 38.50

27

1215149401
ref: 27

PIN,PISTON

€ 13.00

28

0938118002A
ref: 28

CIRCLIP,PISTON PIN

€ 1.50

all assemblies
