CAM SHAFT - VALVE (MODEL Z/D)

GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)

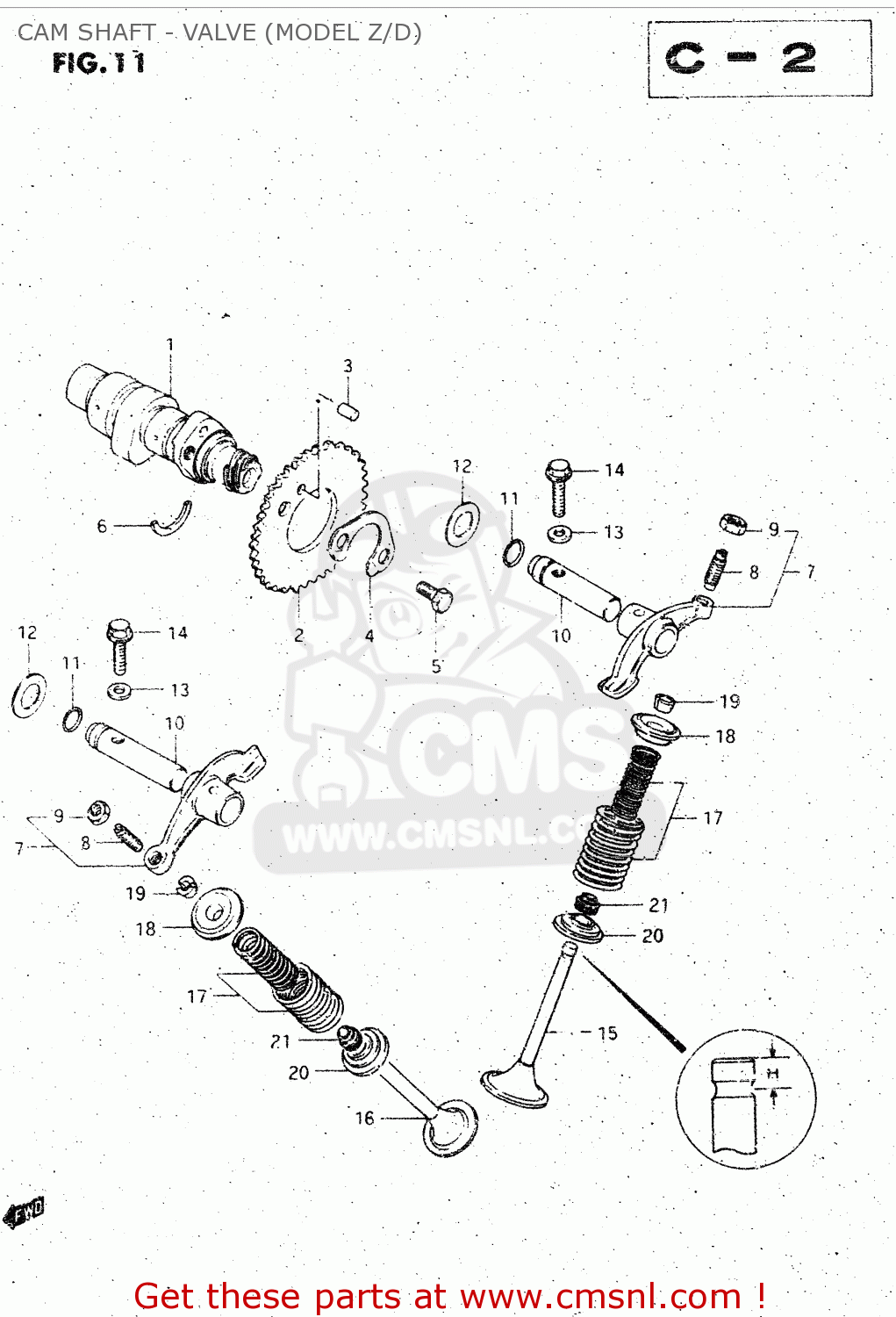

Cam shaft - valve (model z/d) diagram GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)

CAM SHAFT - VALVE (MODEL Z/D) GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)

CAM SHAFT - VALVE (MODEL Z/D) GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)

prices are in EUR

ref

part #

description

quantity

1

1271105201
ref: 1

CAMSHAFT

€ 172.50

2

1274105201
ref: 2

SPROCKET,CAMSHAFT

€ 14.00

3

0926105005
ref: 3

PIN(5X8)

€ 1.50

4

1274705201
ref: 4

WASHER,SPROCKET

€ 2.00

5

0911106032
ref: 5

BOLT(6X10.5)

€ 2.00

6

0939022002
ref: 6

C RING

€ 2.00

7

1284005200
ref: 7

ARM,VALVE ROCKER

€ 28.00

8

1284232411
ref: 8

SCREW,TAPPET ADJUSTING

€ 5.00

9

1284332400
ref: 9

NUT,ADJUSTING SCREW

€ 2.50

10

1286105201
ref: 10

SHAFT,VALVE ROCKET

€ 9.50

11

0928009004
ref: 11

O-RING

€ 4.00

12

0916412021
ref: 12

WASHER

€ 2.00

13

0916806023
ref: 13

GASKET(5.8X13X1.2) (NAS)

€ 2.00

14-1

0151706257
ref: 14-1
MODEL Z

BOLT 6X25

€ 2.50

14-2

0151706254
ref: 14-2
MODEL D

BOLT

€ 2.50

15-1

1291105211
ref: 15-1
FOR 11100-05261,0527

VALVE,INTAKE

€ 32.00

15-2

1291124400
ref: 15-2

VALVE,INTAKE

€ 41.50

16-1

1291205211
ref: 16-1
FOR 11100-05261,0527

VALVE,EXHAUST

€ 48.00

16-2

1291224400
ref: 16-2

VALVE,EXHAUST

€ 41.50

17

1292005210
ref: 17

SPRING SET,VALVE

€ 10.50

18

1293149200
ref: 18

RETAINER,VALVE SPRING

€ 5.50

19-1

1293249200
ref: 19-1
FOR 11100-05261,0527

COTTER VALVE

€ 2.50

19-2

1293224400
ref: 19-2

COTTER,VALVE

€ 2.00

20

1293349200
ref: 20

SEAT,VALVE SPRING

€ 4.50

21

0928905003
ref: 21

OIL SEAL

€ 6.50
