TURN SIGNAL LAMP (E15,E17,E18,E39)

GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)

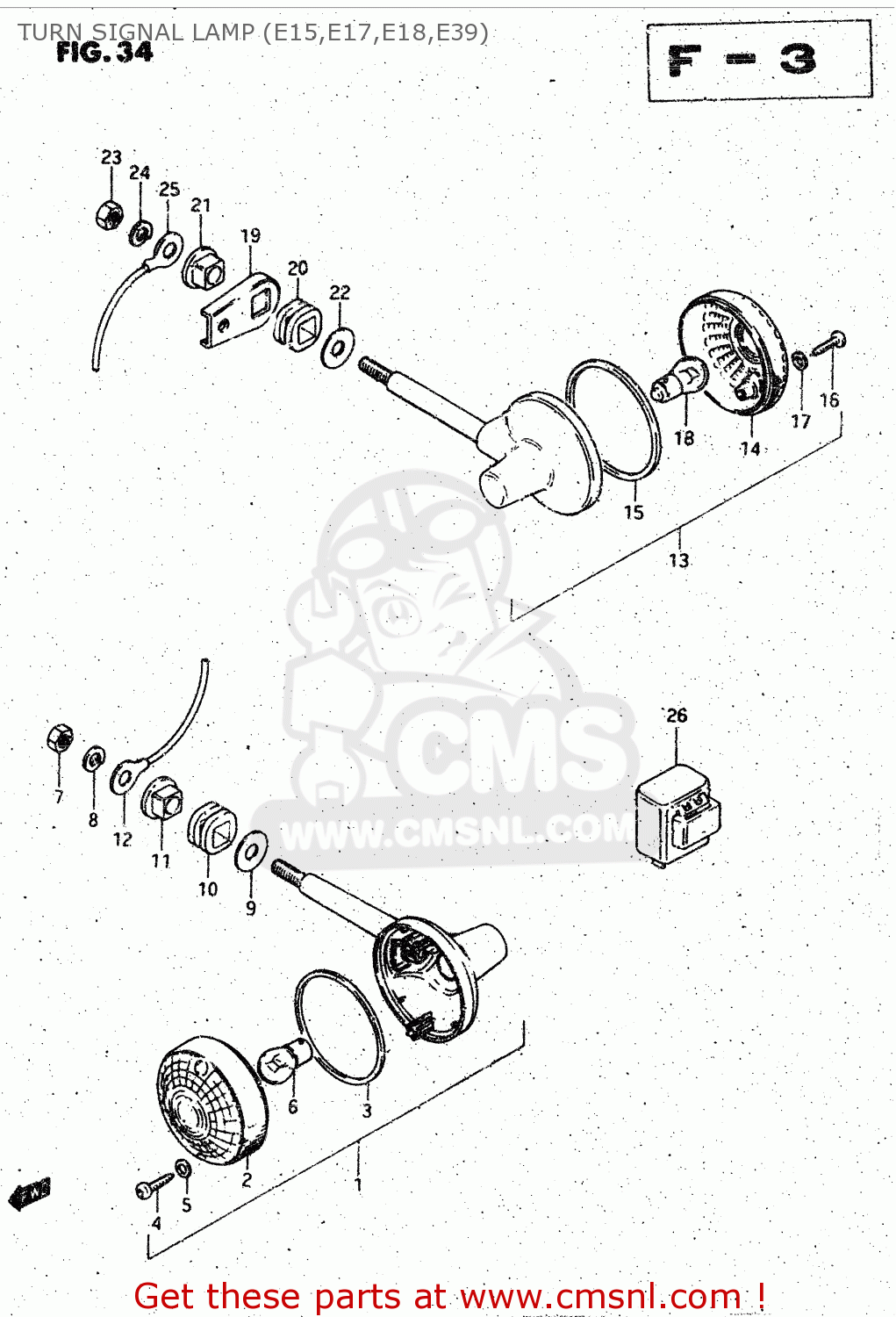

Turn signal lamp (e15,e17,e18,e39) diagram GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)

TURN SIGNAL LAMP (E15,E17,E18,E39) GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)
TURN SIGNAL LAMP (E15,E17,E18,E39) GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)
TURN SIGNAL LAMP (E15,E17,E18,E39) GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)
prices are in EUR
ref
part #
description
quantity
1-1
3560146120999
ref: 1-1
E15
LAMP ASSEMBLY,FRONT TURN SIGNAL
3560146120999
€ 78.50
1-2
3560332411999
ref: 1-2
E17
LAMP ASSY,TURNSIGNAL
3560332411999
€ 80.50
1-3
3560146782999
ref: 1-3
E18
LAMP ASSEMBLY,FRONT TURN SIGNAL
3560146782999
€ 78.50
1-4
3560147184999
ref: 1-4
E39
LAMP ASSY, FRONT TURN SIGNAL
€ 0.00
2-1
3561228620
ref: 2-1
E15,E17,E18
LENS
3561228620
€ 10.50
2-2
3565239280
ref: 2-2
E39
LENS
3565239280
€ 9.00
3
3561328620
ref: 3
GASKET (NAS)
3561328620
€ 7.00
4
0321104207
ref: 4
SCREW
0321104207
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947112045
ref: 6
BULB(12V21W)
0947112045
€ 5.00
7
0831012106
ref: 7
NUT
0831012106
€ 2.00
8
0832121106
ref: 8
LOCK WASHER
€ 3.00
9
0916010006
ref: 9
WASHER (10.5X30X2.3)
0916010006
€ 2.50
10
3569032200
ref: 10
CUSHION
3569032200
€ 38.50
11
3569532401
ref: 11
SPACER
3569532401
€ 4.50
12
3666033000
ref: 12
LEAD WIRE,EARTH
3666033000
€ 5.00
13-1
3560310240
ref: 13-1
E15,E17
LAMP ASSY, REAR TURN SIGNAL
€ 78.50
13-2
3560347614
ref: 13-2
E18,E39
LAMP ASSY, REAR TURN SIGNAL
€ 65.00
14
3565239280
ref: 14
LENS
3565239280
€ 9.00
15
3561328620
ref: 15
GASKET (NAS)
3561328620
€ 7.00
16
0321104207
ref: 16
SCREW
0321104207
€ 1.50
17
3562743010
ref: 17
GASKET (NAS)
3562743010
€ 2.00
18
0947112045
ref: 18
BULB(12V21W)
0947112045
€ 5.00
19
3562005310
ref: 19
BRACKET,RR TURNSIGNAL LAMP
€ 5.50
20
0932015004
ref: 20
CUSHION
0932015004
€ 5.00
21
3569532401
ref: 21
SPACER
3569532401
€ 4.50
22
0916010006
ref: 22
WASHER (10.5X30X2.3)
0916010006
€ 2.50
23
0831012108
ref: 23
NUT
0831012108
€ 2.50
24
0832121107
ref: 24
WASHER,LOCK,10
0832121107
€ 2.00
25
3666033000
ref: 25
LEAD WIRE,EARTH
3666033000
€ 5.00
26
3861031310
ref: 26
ARROW LEFT38610-4503
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
