FRONT CALIPER (MODEL R)

GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)

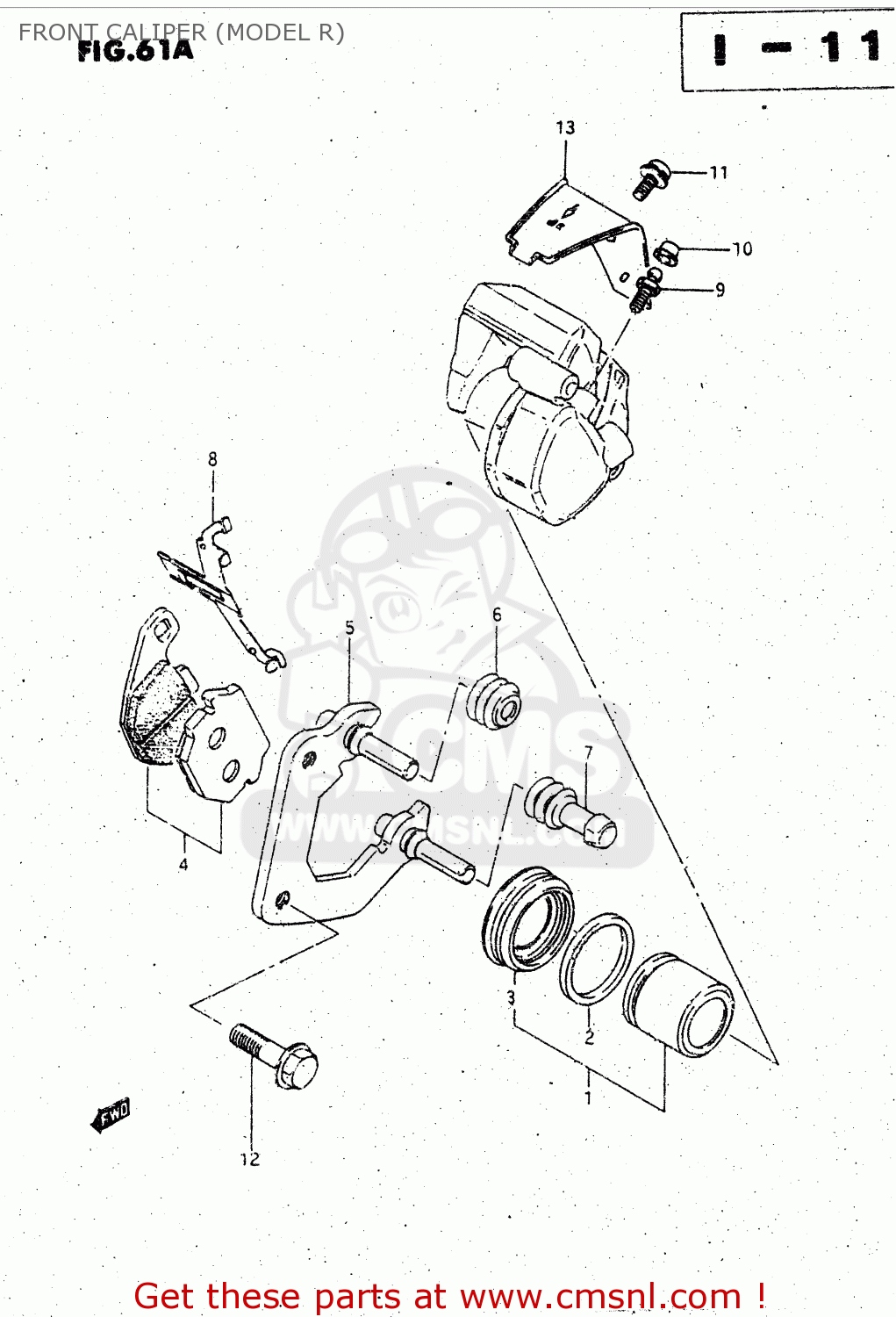

Front caliper (model r) diagram GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)

FRONT CALIPER (MODEL R) GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)
FRONT CALIPER (MODEL R) GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)
FRONT CALIPER (MODEL R) GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)
prices are in EUR
ref
part #
description
quantity
0
5930004712
ref: 0
TOKICO
CALIPER ASSEMBLY,FRONT,LEFT
5930004712
€ 229.00
1
5930004850
ref: 1
PISTON SET
€ 53.00
2
5910739100
ref: 2
SEAL,PISTON
5910739100
€ 18.00
3
5930836500
ref: 3
BOOT,PISTON
5930836500
€ 12.50
4
5930004831
ref: 4
PAD SET (NAS)
5930004831
€ 34.50
5
5935036501
ref: 5
CARRIER,L
5935036501
€ 52.00
6
5931236500
ref: 6
BOOT,AXLE
5931236500
€ 4.00
7
5931336500
ref: 7
INSULATOR,AXLE
5931336500
€ 5.50
8
5931536500
ref: 8
SPRING,PAD
5931536500
€ 11.00
9
5912118410
ref: 9
BLEEDER
5912118410
€ 8.00
10
5912218410
ref: 10
CAP,BREATHER
5912218410
€ 6.00
11
0211275123
ref: 11
SCREW
€ 2.50
12
0155008303
ref: 12
BOLT
0155008303
€ 3.00
13
5931313001
ref: 13
PROTECTOR,CALIPER
5931313001
€ 4.50
