TURN SIGNAL LAMP (E34)

GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)

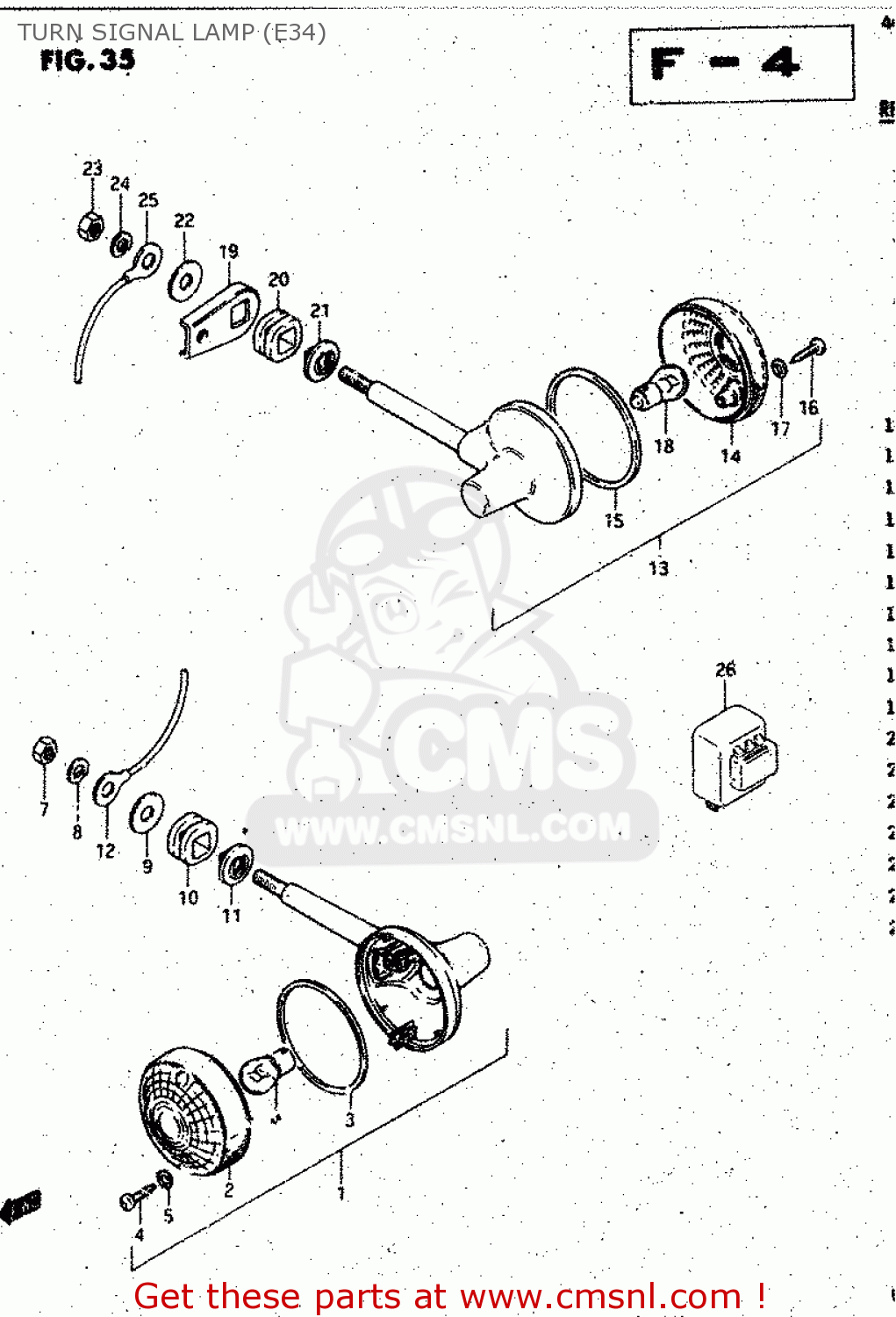

Turn signal lamp (e34) diagram GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)

TURN SIGNAL LAMP (E34) GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)

TURN SIGNAL LAMP (E34) GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)

prices are in EUR

ref

part #

description

quantity

1

3560137141999
ref: 1

LAMP ASSY, FRONT TURN SIGNAL

€ 0.00

2

3561247040
ref: 2

LENS

€ 10.50

3

3561328620
ref: 3

GASKET (NAS)

€ 7.00

4

0321104207
ref: 4

SCREW

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112045
ref: 6

BULB(12V21W)

€ 5.00

7

0831012106
ref: 7

NUT

€ 2.00

8

0832121106
ref: 8

LOCK WASHER

€ 3.00

9

0916010006
ref: 9

WASHER (10.5X30X2.3)

€ 2.50

10

3569032200
ref: 10

CUSHION

€ 38.50

11

3569536590
ref: 11

SPACER

€ 6.00

12

3666033000
ref: 12

LEAD WIRE,EARTH

€ 5.00

13

3560337141999
ref: 13

LAMP ASSY, REAR TURN SIGNAL

€ 78.50

14

3565247040
ref: 14

LENS,TURN SIGN

€ 7.00

15

3561328620
ref: 15

GASKET (NAS)

€ 7.00

16

0321104207
ref: 16

SCREW

€ 1.50

17

3562743010
ref: 17

GASKET (NAS)

€ 2.00

18

0947112045
ref: 18

BULB(12V21W)

€ 5.00

19

3562005310
ref: 19

BRACKET,RR TURNSIGNAL LAMP

€ 5.50

20

0932015004
ref: 20

CUSHION

€ 5.00

21

3569536590
ref: 21

SPACER

€ 6.00

22

0916010006
ref: 22

WASHER (10.5X30X2.3)

€ 2.50

23

0831012108
ref: 23

NUT

€ 2.50

24

0832121107
ref: 24

WASHER,LOCK,10

€ 2.00

25

3666033000
ref: 25

LEAD WIRE,EARTH

€ 5.00

26

3861031310
ref: 26
ARROW LEFT38610-4503

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50
