TURN SIGNAL LAMP (E30)

GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)

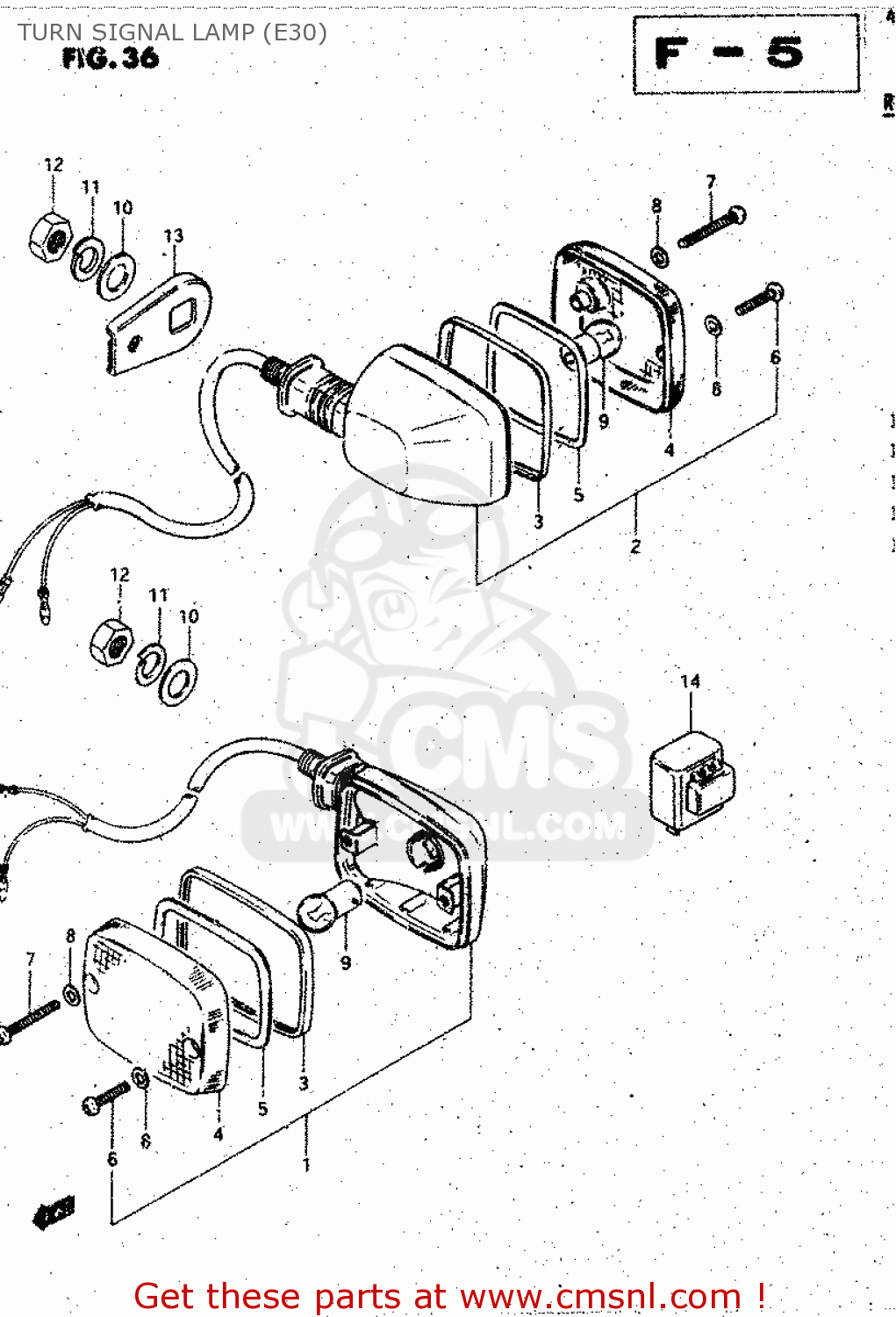

Turn signal lamp (e30) diagram GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)

TURN SIGNAL LAMP (E30) GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)
TURN SIGNAL LAMP (E30) GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)
TURN SIGNAL LAMP (E30) GS125ES 1989 (K) GENERAL EXP UNITED KINGDOM AUSTRALIA (01 02 24)
prices are in EUR
ref
part #
description
quantity
1
3560105311
ref: 1
LAMP ASSY, FRONT TURN SIGNAL
€ 0.00
2
3560105301
ref: 2
LAMP ASSY, REAR TURN SIGNAL
€ 0.00
3
3561149230
ref: 3
RIM
3561149230
€ 11.00
4
3561239310
ref: 4
LENS
€ 9.50
5
3561349230
ref: 5
GASKET (NAS)
3561349230
€ 5.00
6
0321104207
ref: 6
SCREW
0321104207
€ 1.50
7
0321204359
ref: 7
SCREW
0321204359
€ 0.50
8
3562743010
ref: 8
GASKET (NAS)
3562743010
€ 2.00
9
0947112003
ref: 9
BULB 12V 10W
€ 7.00
10
0916012056
ref: 10
WASHER (12.5X26X1.6)
€ 2.00
11
0832121128
ref: 11
WASHER,LOCK 12
0832121128
€ 2.50
12
0831012128
ref: 12
NUT
0831012128
€ 3.00
13
3562005321
ref: 13
BRACKET, REAR
€ 0.00
14
3861009410
ref: 14
ARROW LEFT38610-3531
RELAY,TURN SIGNAL
3861009410
€ 62.50
