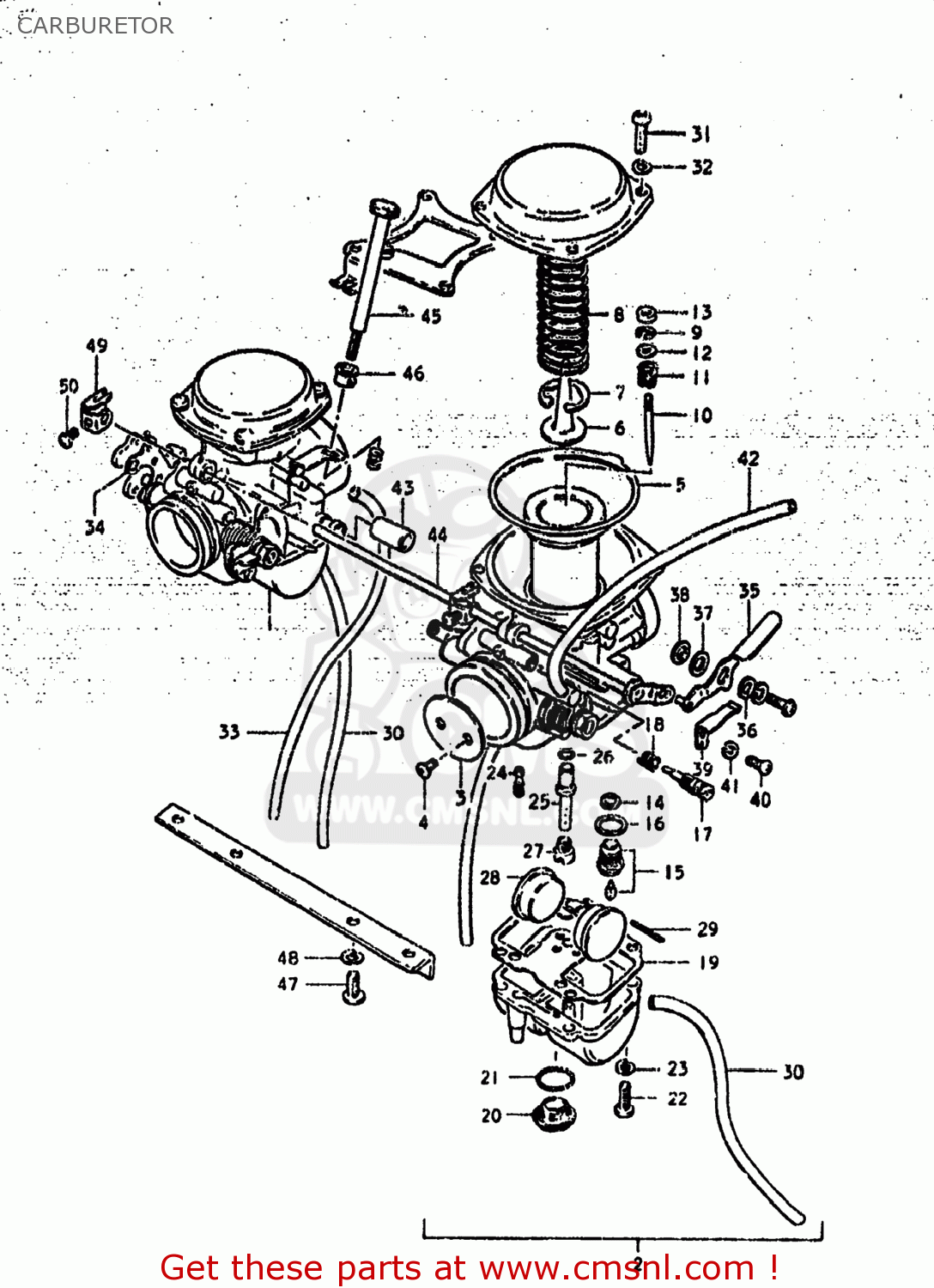

CARBURETOR

ref

part #

description

quantity

0

1320044060
ref: 0

CARBURETOR ASSEMBLY

€ 0.00

1

1320144060
ref: 1

CARBURETOR ASSEMBLY

€ 0.00

2

1320244060
ref: 2

CARBURETOR ASSEMBLY

€ 0.00

3

1355144010
ref: 3

VALVE,THROTTLE

€ 0.00

4

0212203088
ref: 4
02122-03083

SCREW

€ 2.00

5

1350044030
ref: 5

DIAPHRAGM ASSEMBLY

€ 26.50

6

1338944030
ref: 6

HOLDER,GUIDE

€ 10.50

7

1358144030
ref: 7

E RING

€ 6.50

8

1350344030
ref: 8

SPRING,DIAPHRAGM

€ 8.00

9

1339444010
ref: 9
13394-31210

CLIP

€ 3.50

10

1338344030
ref: 10

NEEDLE JET

€ 4.50

11

1338844030
ref: 11

SPRING

€ 6.00

12

1338244030
ref: 12

WASHER

€ 3.50

13

1338744030
ref: 13

RING

€ 5.00

14

1337665010
ref: 14
13376-19F00

FILTER

€ 6.50

15

1337044010
ref: 15

VALVE ASSY,NEEDLE

€ 57.00

16

1339216600
ref: 16

GASKET,MAIN JET HOLDER (NAS)

€ 3.00

17

1326944030
ref: 17

SCREW,PILOT AIR

€ 4.00

18

1326844012
ref: 18

SPRING,THROTTLE SCREW

€ 0.00

19

1325144012
ref: 19

GASKET,FLOAT CHAMBER (NAS)

€ 13.50

20

1324732210
ref: 20

SCREW,GUIDE

€ 13.00

21

1324644010
ref: 21
13249-41310

O-RING

€ 5.00

22

0211204128
ref: 22
02112-0412A

SCREW

€ 1.50

23

0832121048
ref: 23
08321-0104A

LOCK WASHER

€ 2.00

24

0949222004
ref: 24

JET,PILOT

€ 9.00

25

0949400239
ref: 25

JET,NEEDLE

€ 6.00

26

1329531210
ref: 26
09280-03003

O-RING

€ 2.50

27

0949122010
ref: 27
09491-22013

SET, MAIN

€ 7.50

28

1325231210
ref: 28

FLOAT

€ 33.50

29

1325401010
ref: 29

PIN,FLOAT

€ 3.00

30

1368344010
ref: 30
09355-45855-600

HOSE

€ 14.00

31

0211205168
ref: 31
02112-05167

SCREW

€ 2.50

32

0832121058
ref: 32
08321-0105A

LOCK WASHER

€ 2.00

33

1368345070
ref: 33

HOSE

€ 10.00

34

1343644010
ref: 34

GASKET

€ 7.00

35

1341344020
ref: 35

LEVER

€ 14.00

36

1361531630
ref: 36

WASHER,STARTER LEVER

€ 1.50

37

1361544010
ref: 37

WASHER,STARTER LEVER

€ 3.00

38

1343231210
ref: 38

RING,STARTER LEVER

€ 3.00

39

1342644010
ref: 39

SPRING

€ 0.00

40

0211104067
ref: 40
02112-0406B

SCREW

€ 2.00

41

0832121048
ref: 41
08321-0104A

LOCK WASHER

€ 2.00

42

1368331610
ref: 42
09355-45855-600

HOSE

€ 14.00

43

1368310200
ref: 43

HOSE

€ 8.00

44

1341044010
ref: 44

SHAFT,STARTER

€ 0.00

45

1326744010
ref: 45

ADJUSTER

€ 10.00

46

1327631210
ref: 46

BUSH

€ 4.00

47

0211206128
ref: 47
02112-06127

SCREW 6X12

€ 2.00

48

0832121058
ref: 48
08321-0105A

LOCK WASHER

€ 2.00

49

1342244010
ref: 49

LEVER, STARTER

€ 0.00

50

1360531210
ref: 50

SCREW

€ 3.00

all assemblies
