REAR COMBINATION LAMP
GS425L 1979 (N) USA (E03)

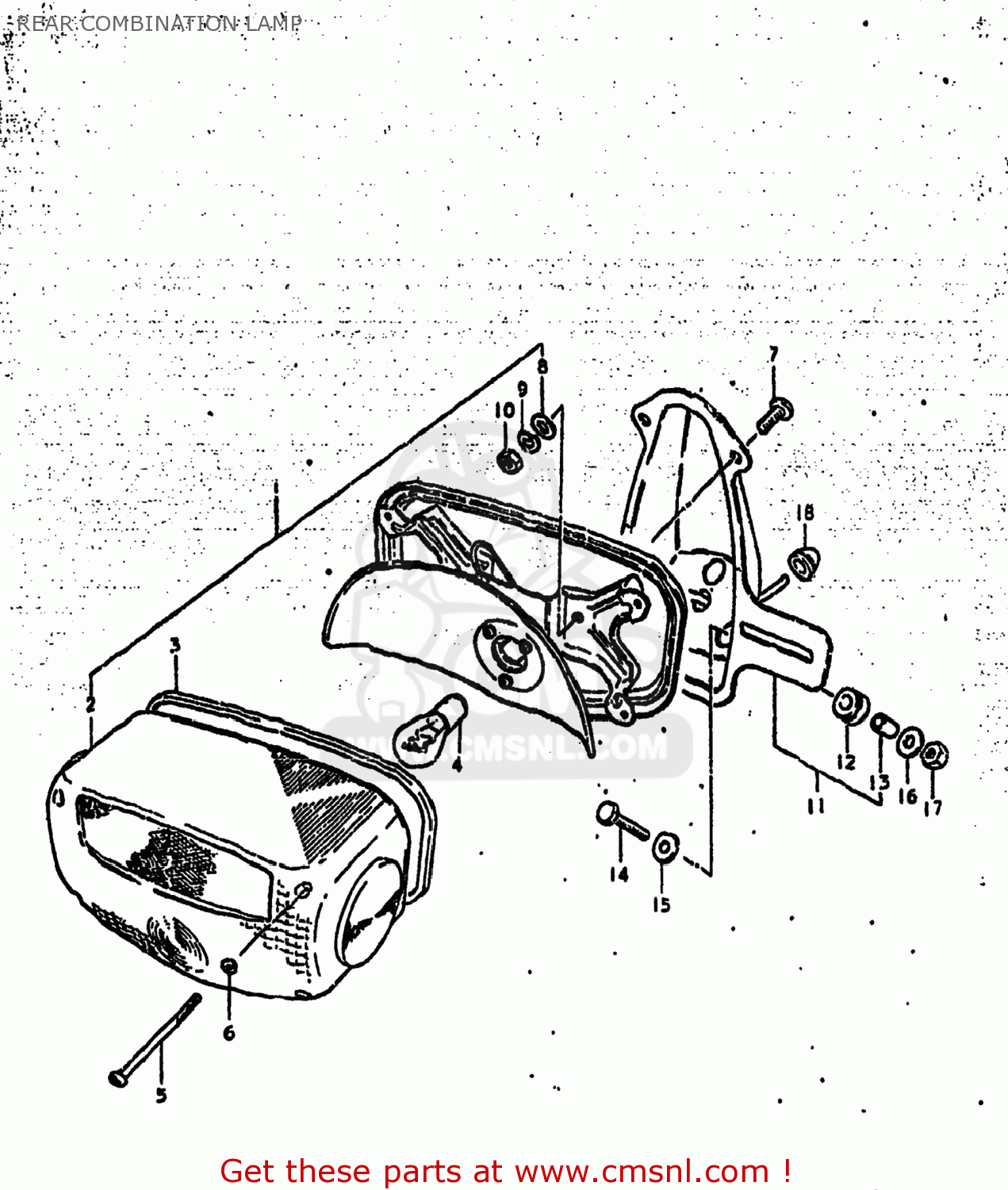

Rear combination lamp diagram GS425L 1979 (N) USA (E03)
REAR COMBINATION LAMP GS425L 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3572045210
ref: 1
LAMP UNIT,REAR COMBINATION
€ 0.00
2
3571245012
ref: 2
35712-45013
LENS,REAR COMBINATION LAMP
€ 63.00
3
3571345010
ref: 3
GASKET (NAS)
€ 9.00
4
0947112035
ref: 4
BULB(12V23W)
€ 5.50
5
0912504002
ref: 5
02112-04558
SCREW (4X55)
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0211206128
ref: 7
02112-06127
SCREW 6X12
€ 2.00
8
0832221068
ref: 8
08322-01067
WASHER
€ 2.00
9
0832121068
ref: 9
08321-01067
LOCK WASHER
€ 2.50
10
0831011068
ref: 10
08310-00067
NUT
€ 2.50
11
3573045210
ref: 11
BRACKET UNIT,TAIL LAMP
€ 99.00
12
3576522210
ref: 12
CUSHION
€ 4.00
13
3576622210
ref: 13
35766-37120
SPACER,REAR COMBINATION LAMP
€ 2.50
14
0110706258
ref: 14
01500-06257
BOLT
€ 2.00
15
0916006027
ref: 15
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
16
0832221068
ref: 16
08322-01067
WASHER
€ 2.00
17
0831011068
ref: 17
08310-00067
NUT
€ 2.50
18
0930807004
ref: 18
GROMMET
€ 2.50
