GS425L 1979 (N) USA (E03)

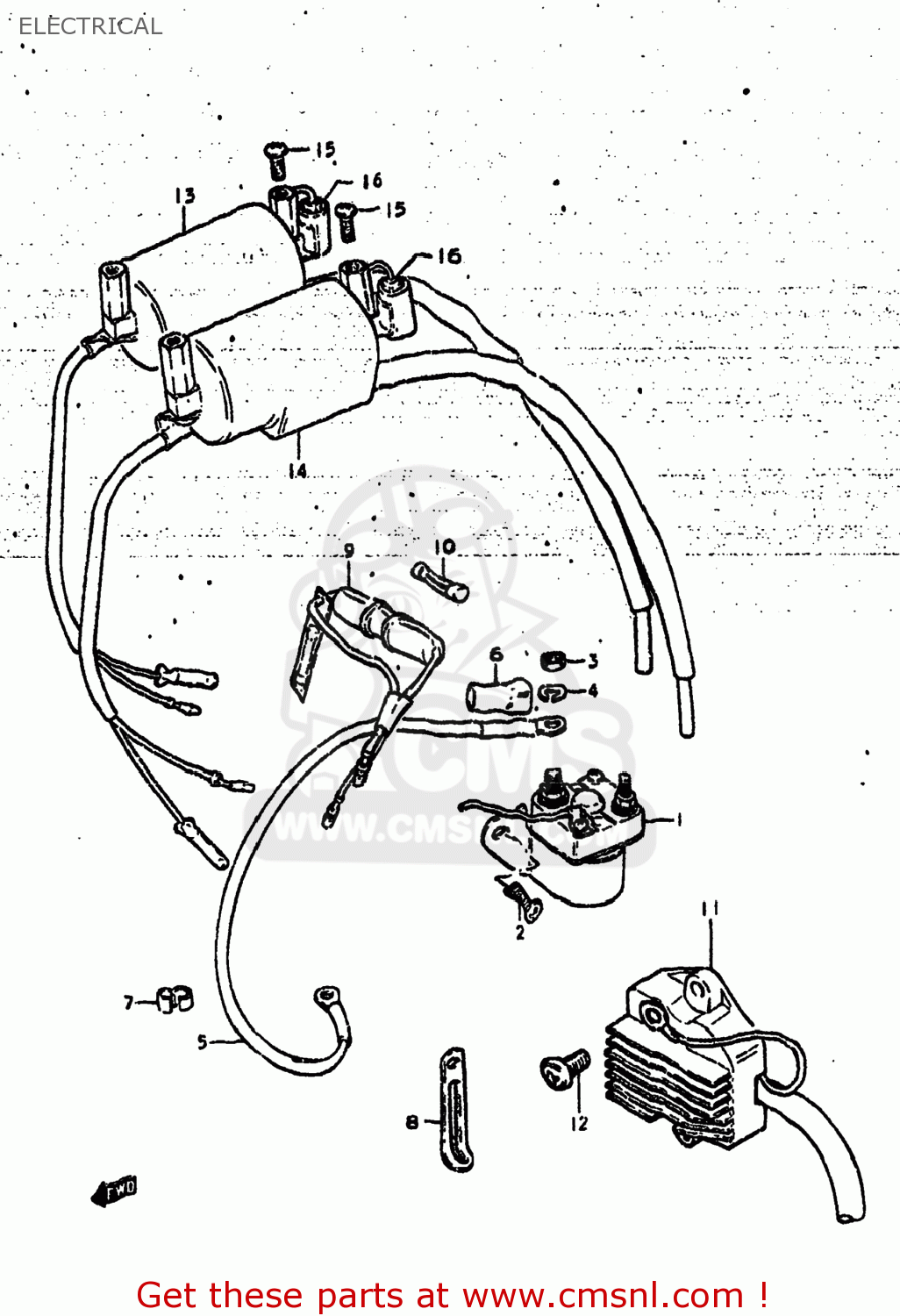

Electrical diagram GS425L 1979 (N) USA (E03)
ELECTRICAL GS425L 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
€ 105.00
2
0211206088
ref: 2
02112-06087
SCREW
€ 2.00
3
0831022068
ref: 3
08310-00067
NUT 6MM
€ 2.50
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5
3385047010
ref: 5
WIRE,STARTER MOTOR LEAD
€ 50.00
6
3186135100
ref: 6
31861-48B10
CAP,STARTER RELAY
€ 4.50
7
0940800002
ref: 7
CLIP
€ 2.00
8
0940406401
ref: 8
09404-06432
CLAMP L:35
€ 2.50
9
3674015010
ref: 9
36740-15011
BOX ASSEMBLY,FUSE
€ 11.00
10
0948115001
ref: 10
FUSE(15A)
€ 3.00
11
3280044040
ref: 11
32800-47121
RECTIFIER ASSEMBLY
€ 248.00
12
0211206168
ref: 12
02112-06167
SCREW
€ 2.50
13
3341044020
ref: 13
33410-44021
COIL ASSEMBLY,IGNITION
€ 279.00
13
3341044020
ref: 13
33410-44021
COIL ASSEMBLY,IGNITION
€ 279.00
14
3342044020
ref: 14
33410-44021
COIL ASSEMBLY,IGNITION
€ 279.00
14
3342044020
ref: 14
33410-44021
COIL ASSEMBLY,IGNITION
€ 279.00
15
0211205108
ref: 15
02112-05107
SCREW
€ 2.00
16
3342144020
ref: 16
CONDENSER
€ 78.50
