FRAME
GS425L 1979 (N) USA (E03)

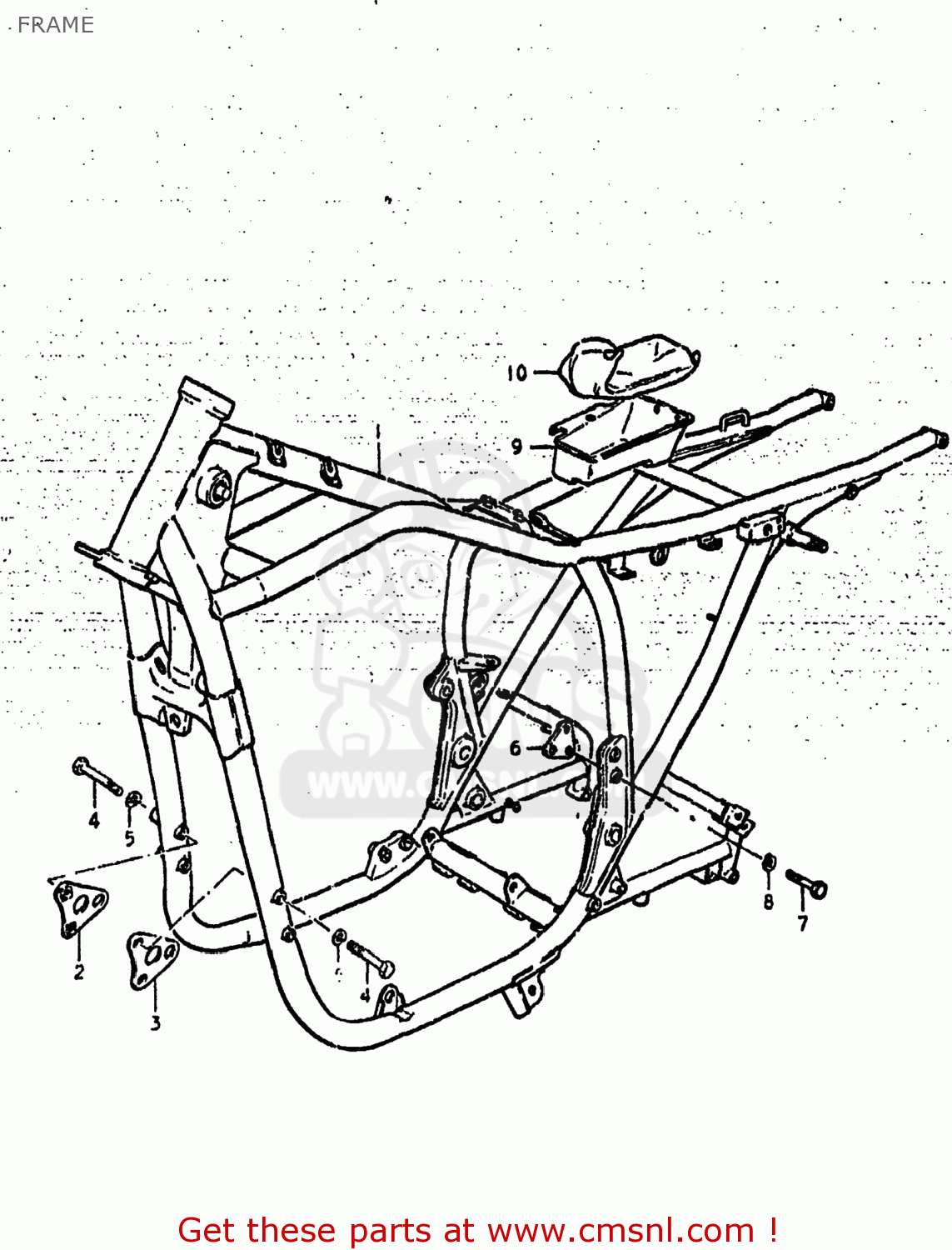

Frame diagram GS425L 1979 (N) USA (E03)
FRAME GS425L 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110044200019
ref: 1
41100-44201-019
FRAME
€ 353.00
2
4193044000019
ref: 2
PLATE,ENGINE MOUNTING
€ 8.00
3
4194044000019
ref: 3
PLATE,ENGINE MOUNTING
€ 8.00
4
0110708608
ref: 4
01500-0860B
BOLT
€ 2.50
5
0832121088
ref: 5
08321-01087
LOCK WASHER
€ 2.00
6
4191044000019
ref: 6
PLATE,ENGINE MOUNTING
€ 0.00
7
0110708408
ref: 7
01500-0840A
BOLT 8X40
€ 3.00
8
0832121088
ref: 8
08321-01087
LOCK WASHER
€ 2.00
9
4155144001
ref: 9
HOLDER,TOOL
€ 10.00
10
0980000193
ref: 10
09800-06801
TOOL SET
€ 52.00
