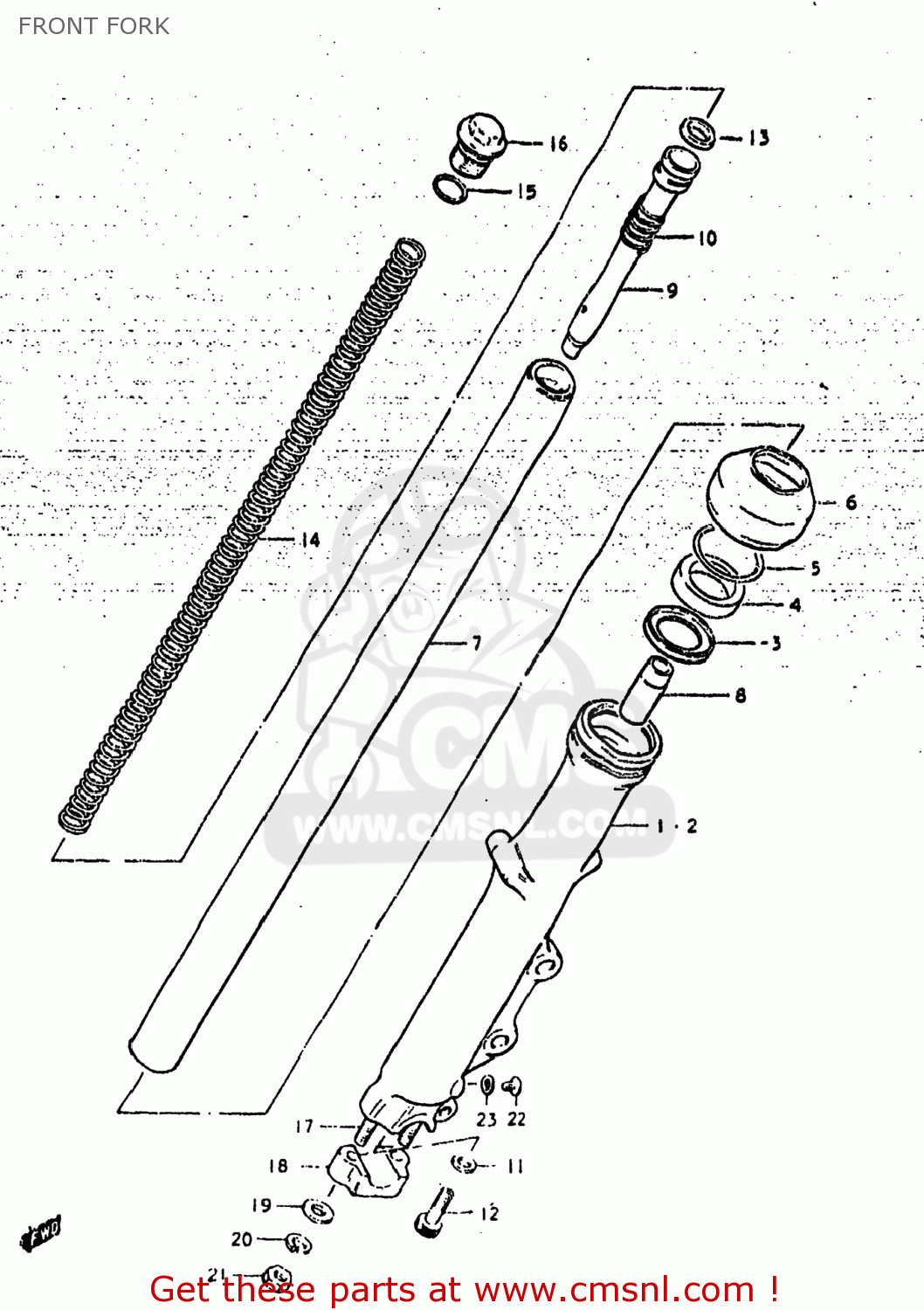

FRONT FORK

ref

part #

description

quantity

0-1

5110344200
ref: 0-1
51103-44201

DAMPER ASSEMBLY,RIGHT

€ 138.00

0-2

5110444200
ref: 0-2

DAMPER ASSEMBLY,LEFT

€ 162.50

1

5113044032
ref: 1
51130-44033

TUBE,FORK,OUTER,RIGHT

€ 129.00

2

5114044031
ref: 2

TUBE,FORK,LEFT,OUTER

€ 107.50

3

5116844030
ref: 3

SPACER,OIL SEAL

€ 4.50

4

5115344031
ref: 4
51153-02B00

OIL SEAL,FRONT FORK

€ 15.00

5

5115633130
ref: 5
51156-02B00

CIRCLIP,FORK OIL SEAL

€ 4.50

6

5157133131
ref: 6
51571-37310

BOOT

€ 22.00

7

5111044200
ref: 7

TUBE,FORK,INNER

€ 185.50

8

5119544030
ref: 8

PIECE,OIL LOCK

€ 0.00

9

5114644031
ref: 9
51146-38300

CYLINDER,FRONT FORK

€ 42.00

10

5117736030
ref: 10

SPRING,REBOUND

€ 4.50

11

5114831030
ref: 11
51148-36011

GASKET (NAS)

€ 4.00

12

5114748130
ref: 12

BOLT(8X27)

€ 3.50

13

5119633130
ref: 13

RING,PISTON

€ 7.50

14

5117144200
ref: 14

SPRING

€ 12.00

15

5118131030
ref: 15

O RING

€ 3.50

16

5135133130
ref: 16

BOLT

€ 30.50

17

0142108258
ref: 17
01421-0825A

STUD 8X25

€ 2.50

18

5113231030
ref: 18

HOLDER,AXLE

€ 31.50

19

0832221088
ref: 19
08322-01087

WASHER

€ 2.00

20

0832121088
ref: 20
08321-01087

LOCK WASHER

€ 2.00

21

0914008005
ref: 21
09140-08017

NUT (8MM)

€ 1.50

22

0211104067
ref: 22
02112-0406B

SCREW

€ 2.00

23

5118333030
ref: 23

GASKET (NAS)

€ 6.50

all assemblies
