SPEEDOMETER - TACHOMETER
GS425L 1979 (N) USA (E03)

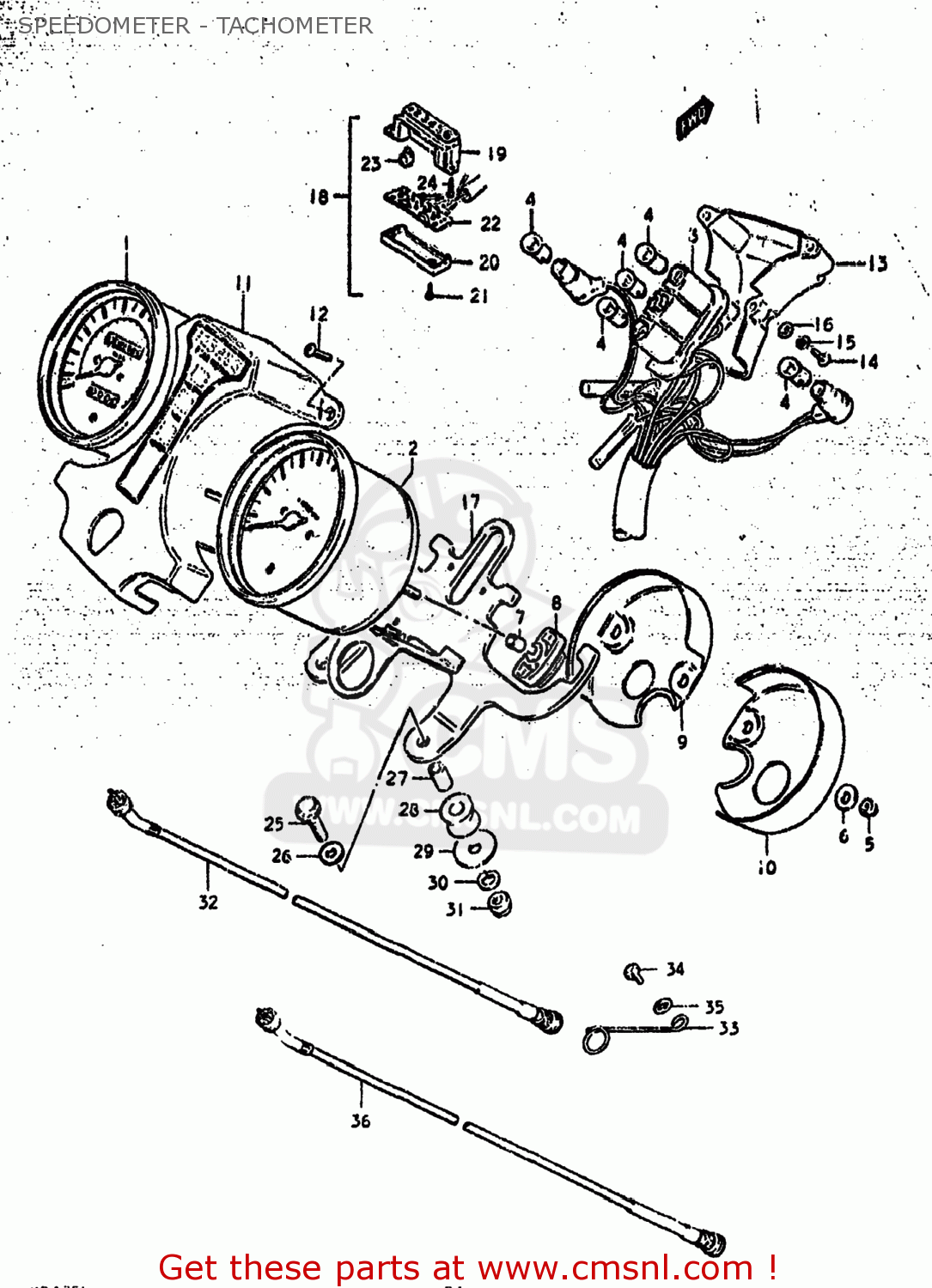

Speedometer - tachometer diagram GS425L 1979 (N) USA (E03)
SPEEDOMETER - TACHOMETER GS425L 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
3410044013
ref: 0
34100-44016
SPEEDOMETER ASSEMBLY
€ 143.50
1
3411044012
ref: 1
34110-37410
SPEEDOMETER ASSEMBLY
€ 141.50
2
3421044614
ref: 2
34210-44001
TACHOMETER
€ 187.50
3
3417344000
ref: 3
SOCKET,METER
€ 0.00
4
0947112001
ref: 4
BULB(12V3.4W,STANLEY,A72A)
€ 1.50
5
0831311057
ref: 5
08313-1005A
NUT
€ 1.50
6
0916005017
ref: 6
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
7
3497244022
ref: 7
SPACER
€ 5.50
8
3495544020
ref: 8
CUSHION,METER
€ 4.00
9
3496136322
ref: 9
UNDER COVER,SPEEDOMETER
€ 19.50
10
3496236322
ref: 10
UNDER COVER,TACHOMETER
€ 36.00
11
3638044000
ref: 11
CASE,PILOT BULB
€ 39.50
12
3638744000
ref: 12
SCREW
€ 0.00
13
3638244000
ref: 13
COVER,PILOT BULB CASE
€ 23.00
14
0912504011
ref: 14
SCREW(4X16)
€ 2.00
15
3499744020
ref: 15
WASHER,PILOT UNDER CASE
€ 0.00
16
0916004006
ref: 16
08322-0104A
WASHER
€ 5.00
17
3495044022
ref: 17
BRACKET,METER
€ 0.00
18
3645044001
ref: 18
INDICATOR ASSEMBLY,GEAR POSITION
€ 0.00
19
3645245100
ref: 19
CASE,GEAR INDICATOR
€ 14.50
20
3645445100
ref: 20
COVER,LWR
€ 7.00
21
3645645100
ref: 21
03511-03146
SCREW,GEAR INDICATOR
€ 2.00
22
3645344000
ref: 22
SOCKET,GEAR INDICATOR
€ 0.00
23
0947112071
ref: 23
BULB(14V1.12W)
€ 5.00
24
3645745100
ref: 24
SCREW
€ 2.00
25
0110706308
ref: 25
01500-06307
BOLT
€ 2.50
26
0832211068
ref: 26
08322-0106B
WASHER 6MM
€ 2.00
27
0918006040
ref: 27
09180-06251
SPACER (6.1X8X15.5)
€ 2.00
28
3495615100
ref: 28
CUSHION
€ 4.00
29
0916006007
ref: 29
09160-06084
WASHER
€ 2.00
30
0832121068
ref: 30
08321-01067
LOCK WASHER
€ 2.50
31
0831011068
ref: 31
08310-00067
NUT
€ 2.50
32
3491049010
ref: 32
34910-24500
CABLE ASSEMBLY,SPEEDOMETER
€ 25.00
33
3493837000
ref: 33
GUIDE,SPEEDOMETER CABLE
€ 14.50
34
0110706168
ref: 34
01500-06167
BOLT, UPPER
€ 3.00
35
0832211068
ref: 35
08322-0106B
WASHER 6MM
€ 2.00
36
3494044034
ref: 36
34940-37311
CABLE ASSEMBLY,TACHOMETER
€ 36.50
