CHAIN CASE - SHOCK ABSORBER

GS450E 1987 (H) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

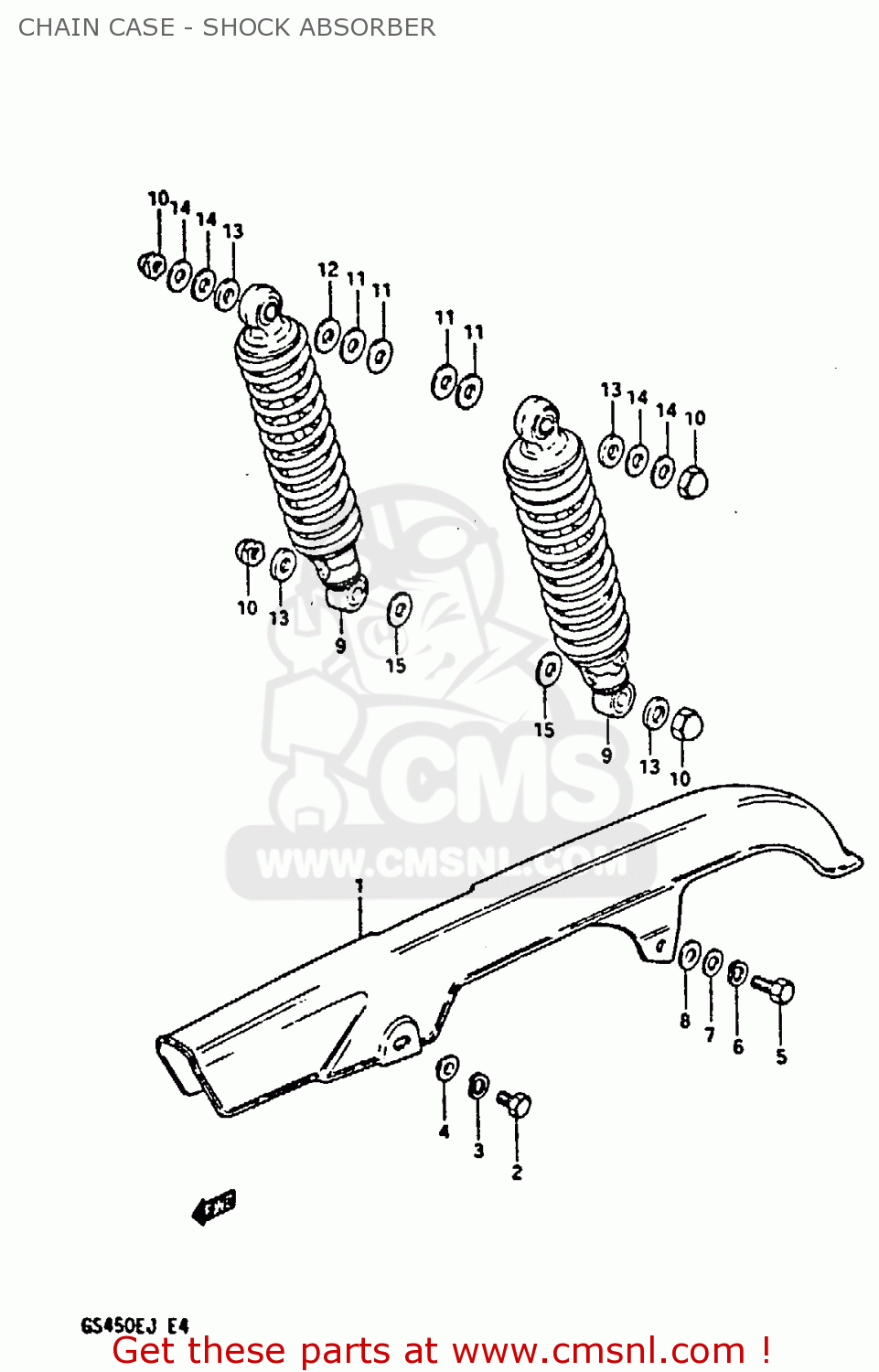

Chain case - shock absorber diagram GS450E 1987 (H) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

prices are in EUR

ref

part #

description

quantity

6131044400
ref: 1

CASE,CHAIN

€ 52.50

0110706104
ref: 2

BOLT

€ 2.00

0832121064
ref: 3

WASHER,LOCK

€ 2.00

0916906025
ref: 4

WASHER,LOCK

€ 3.00

0110706125
ref: 5

BOLT

€ 2.00

0832121064
ref: 6

WASHER,LOCK

€ 2.00

0832221064
ref: 7

WASHER

€ 2.00

0916006056
ref: 8

WASHER(6.5X18X1)

€ 2.00

6210044411
ref: 9

ABSORBER ASSY,RR SHOCK

€ 197.50

0831311108
ref: 10

NUT, LOWER LH

€ 2.50

0832211128
ref: 11

WASHER

€ 2.00

0916012012
ref: 12

WASHER (12.5X24X3.2)

€ 2.50

0916010001
ref: 13

WASHER

€ 2.00

0916010033
ref: 14

WASHER(10.5X24X3.2)

€ 2.00

0916012004
ref: 15

WASHER (12.5X24X1.6)

€ 2.00
