REAR BRAKE

GS450E 1987 (H) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

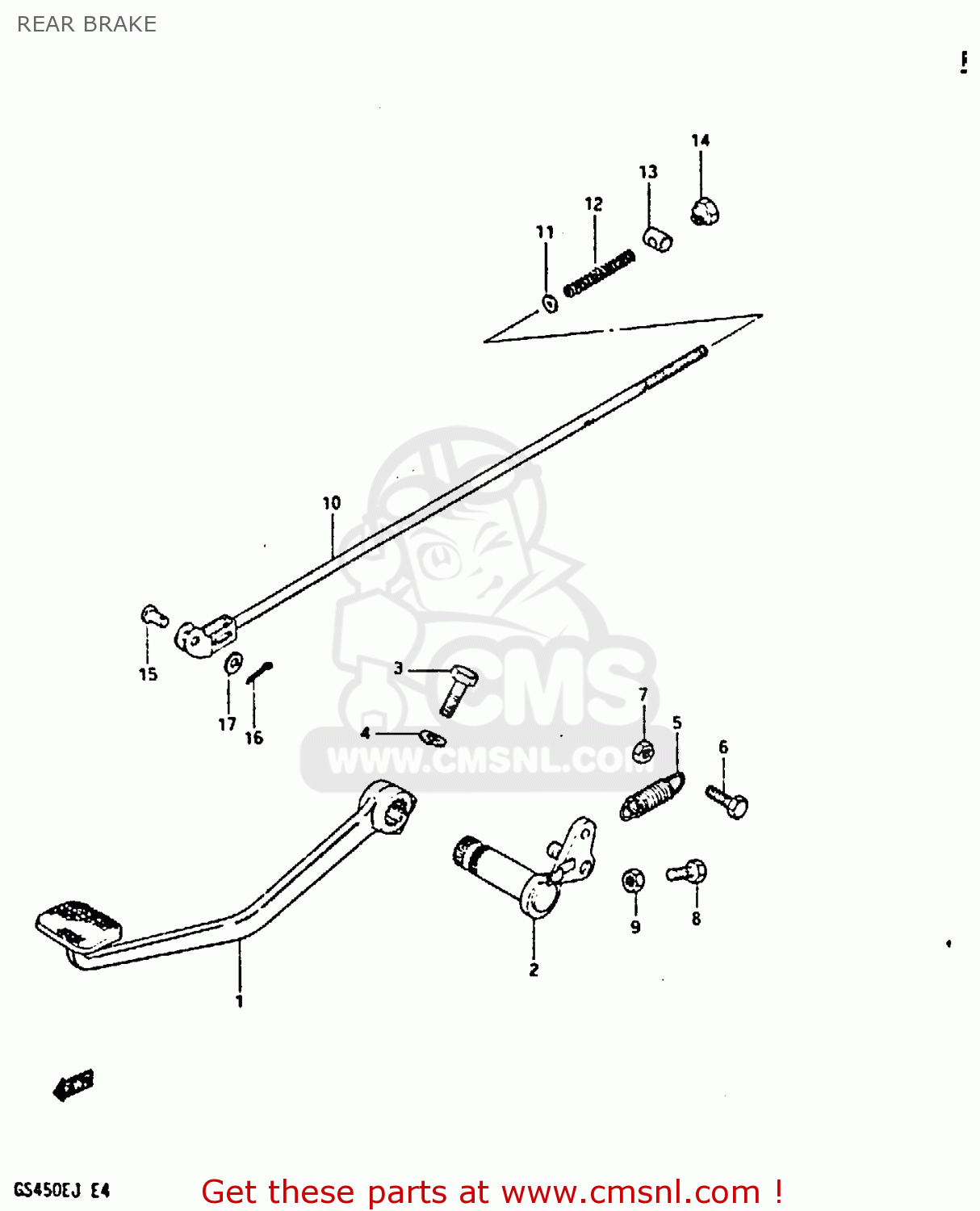

Rear brake diagram GS450E 1987 (H) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

prices are in EUR

ref

part #

description

quantity

4311044401
ref: 1

PEDAL,BRAKE

€ 65.50

4312011501
ref: 2

ARM,BRAKE PEDAL

€ 21.00

0110708258
ref: 3

BOLT

€ 2.50

0832121088
ref: 4

LOCK WASHER

€ 2.00

0944314020
ref: 5

SPRING

€ 3.00

0110706257
ref: 6

BOLT

€ 2.00

0831011067
ref: 7

NUT 6MM

€ 2.50

0110706207
ref: 8

BOLT

€ 2.00

0831011067
ref: 9

NUT 6MM

€ 2.50

4330044401
ref: 10

ROD ASSY,RR BRAKE

€ 16.00

0832221067
ref: 11

WASHER

€ 2.00

0944009004
ref: 12

SPRING

€ 2.00

0920913005
ref: 13

PIN

€ 3.50

0915006009
ref: 14

NUT (6MM)

€ 3.50

0920006013
ref: 15

PIN(L:13.5)

€ 2.00

0411120208
ref: 16

PIN 20X20

€ 1.50

0832221067
ref: 17

WASHER

€ 2.00
