STARTER CLUTCH

GS450E 1987 (H) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

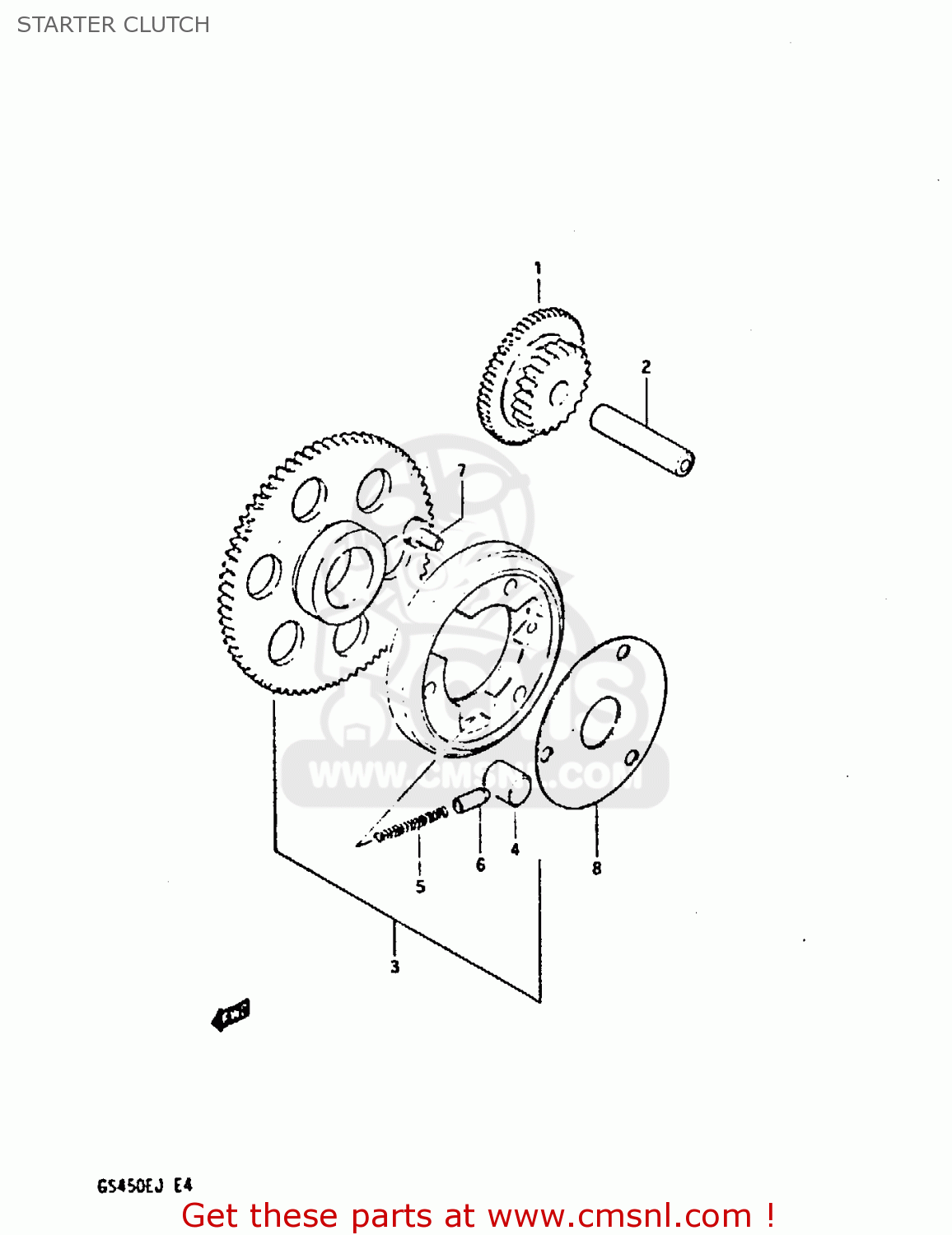

Starter clutch diagram GS450E 1987 (H) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

STARTER CLUTCH GS450E 1987 (H) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

STARTER CLUTCH GS450E 1987 (H) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

prices are in EUR

ref

part #

description

quantity

1

1261144100
ref: 1

GEAR,STARTER IDLE

€ 132.50

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

1260044831
ref: 3

CLUTCH SET,STARTER

€ 313.00

4

0926115001
ref: 4

ROLLER(15X13)

€ 3.50

5

0944004015
ref: 5

SPRING

€ 2.50

6

1263331000
ref: 6

PIECE,PUSH

€ 9.00

7

0910608043
ref: 7

BOLT

€ 3.00

8

1264945000
ref: 8

SHIM,STARTER CLUTCH HUB

€ 7.00
