FOOTREST

GS450E 1987 (H) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

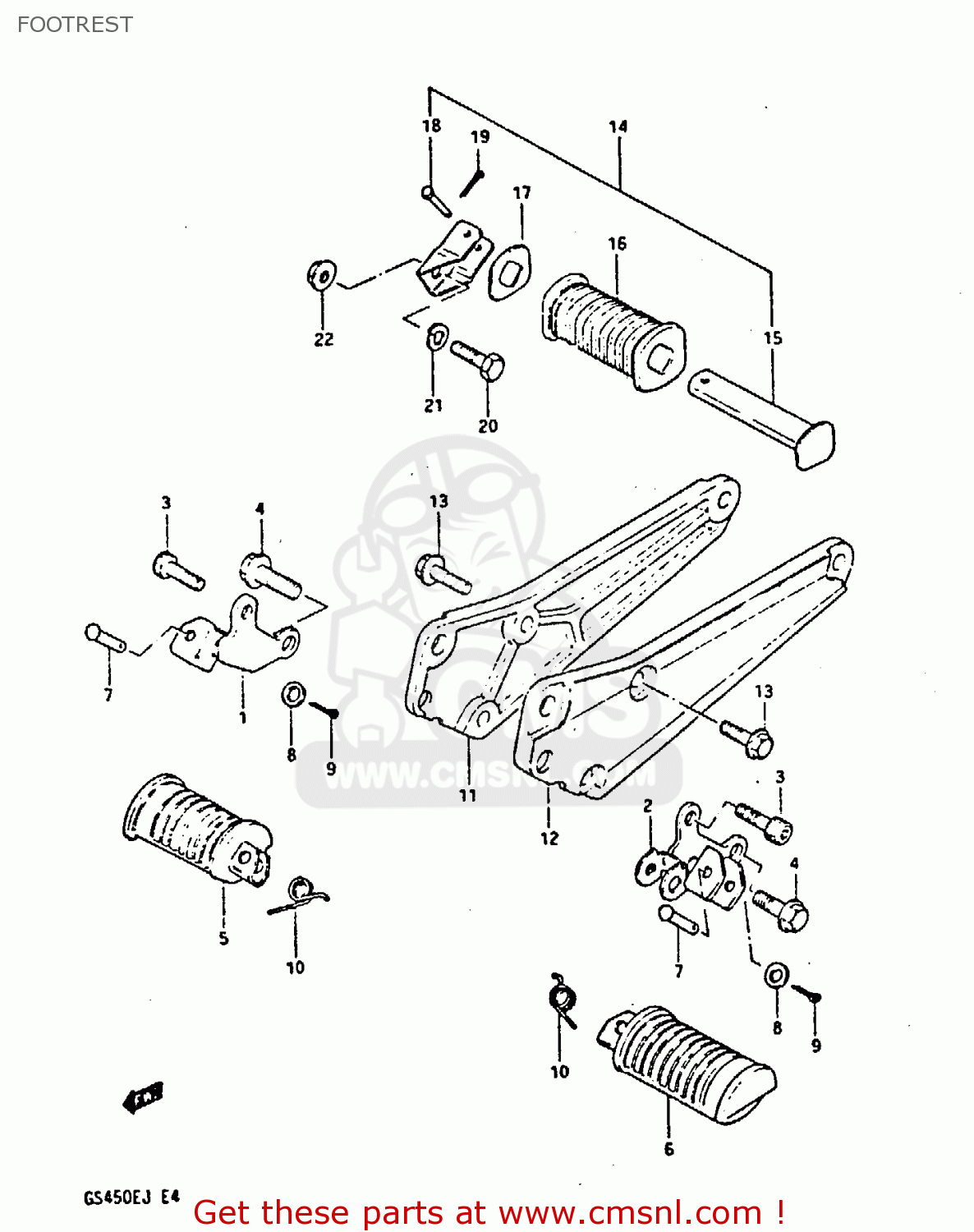

Footrest diagram GS450E 1987 (H) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

FOOTREST GS450E 1987 (H) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21
FOOTREST GS450E 1987 (H) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21
FOOTREST GS450E 1987 (H) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21
prices are in EUR
ref
part #
description
quantity
1
4351044402
ref: 1
BAR,FR FOOTREST,R
4351044402
€ 50.50
2
4352044402
ref: 2
BAR,FRONT FOOTREST,LEFT
4352044402
€ 71.50
3-1
0910608017
ref: 3-1
MODEL E
BOLT
€ 3.00
3-2
0711008208
ref: 3-2
MODEL F/G/H/J
BOLT
€ 3.00
4
0151710258
ref: 4
BOLT
€ 3.00
5
4355037301
ref: 5
RUBBER,PILLION FOOTREST,R
4355037301
€ 22.50
6
4356037301
ref: 6
RUBBER,PILLION FOOTREST,L
4356037301
€ 22.50
7
0920008002
ref: 7
PIN
0920008002
€ 2.00
8
0832211088
ref: 8
WASHER
0832211088
€ 2.00
9
0411120208
ref: 9
PIN 20X20
0411120208
€ 1.50
10
0944814012
ref: 10
SPRING
0944814012
€ 3.00
11
4381144110
ref: 11
BRACKET,MUFFLER,RIGHT
€ 102.00
12
4382144110
ref: 12
BRACKET,MUFFLER,LEFT
4382144110
€ 120.00
13
0151710258
ref: 13
BOLT
€ 3.00
14-1
4360034500
ref: 14-1
FOOTREST ASSY,PILLION,R
4360034500
€ 118.00
14-2
4370034500
ref: 14-2
FOOTREST ASSY,PILLION,L
4370034500
€ 107.50
15-1
4361049201
ref: 15-1
BAR,REAR FOOTREST,RIGHT
4361049201
€ 8.00
15-2
4362049201
ref: 15-2
BAR,REAR FOOTREST,LEFT
4362049201
€ 23.00
16
4361249201
ref: 16
RUBBER,PILLION FOOTREST
4361249201
€ 30.50
17
4363149201
ref: 17
WASHER,FOOTREST RUBBER
€ 16.00
18
0920006010
ref: 18
PIN
0920006010
€ 2.50
19
0411120208
ref: 19
PIN 20X20
0411120208
€ 1.50
20
0110710358
ref: 20
BOLT,M10X1.25X
0110710358
€ 2.50
21
0832121107
ref: 21
WASHER,LOCK,10
0832121107
€ 2.00
22
0831616108
ref: 22
NUT
0831616108
€ 2.00
