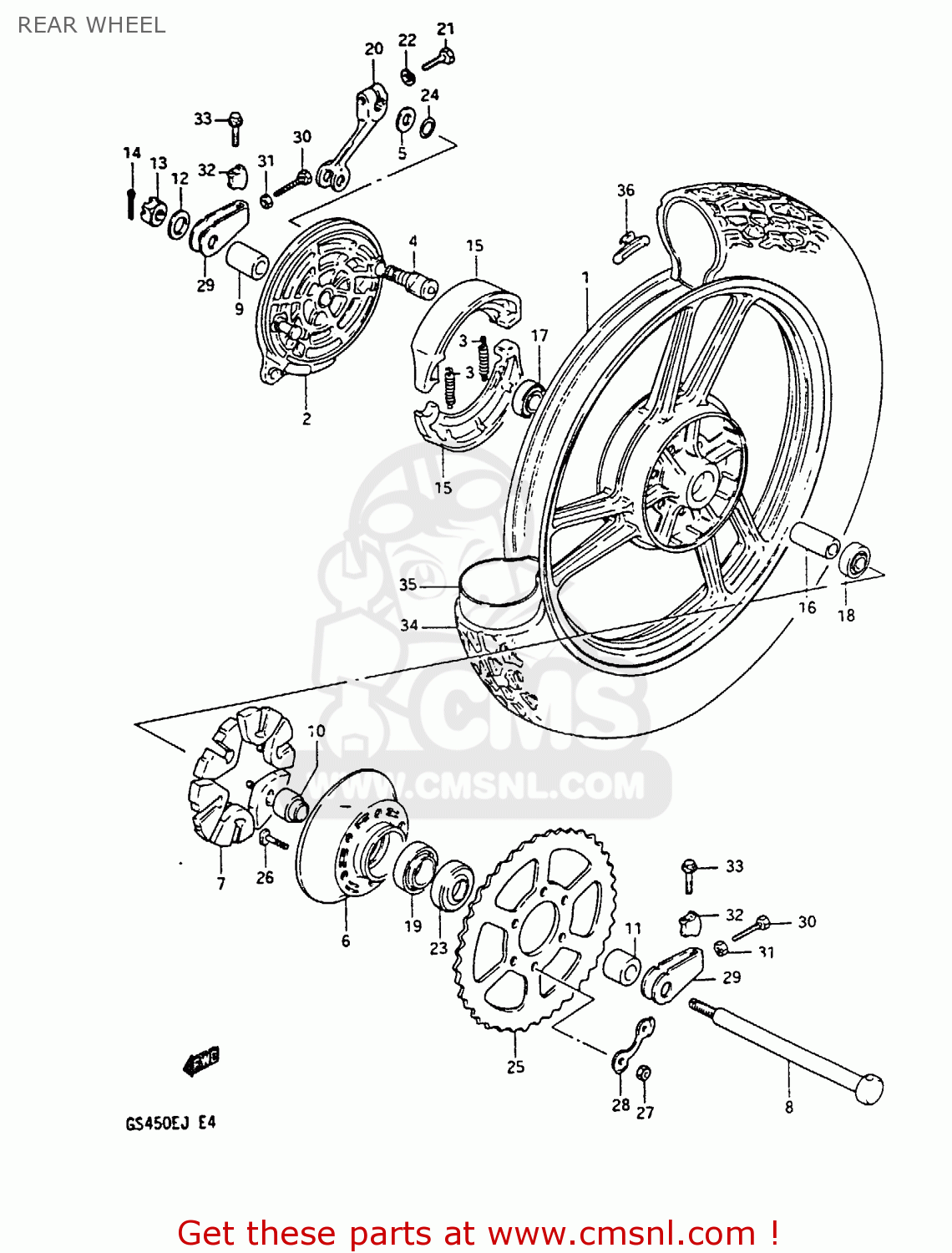

REAR WHEEL

ref

part #

description

quantity

1-1

641504440019T
ref: 1-1
MODEL E/F

WHEEL, REAR (18X1.85) GOLD

€ 431.50

1-2

641504440029I
ref: 1-2
MODEL G/H/J

WHEEL, REAR (18*1.85) BLACK

€ 0.00

2

6421044060
ref: 2

PANEL,REAR HUB

€ 111.50

3

5542030000
ref: 3

SPRING,BRAKE SHOE

€ 3.50

4

5444008003
ref: 4

CAM,FRONT BRAKE

€ 19.00

5

0916015001
ref: 5

WASHER (15X24X1.6)

€ 2.50

6

6461144001
ref: 6

DRUM,REAR SPROCKET MOUNT

€ 84.00

7

6465111300
ref: 7

ABSORBER,RR HUB SHOCK

€ 12.50

8-1

6471144400
ref: 8-1

AXLE,REAR

€ 33.50

8-2

6471144410
ref: 8-2
E22

AXLE, REAR

€ 33.50

9

0918017043
ref: 9

SPACER(17.5X28X44.8)

€ 7.00

10

6473333000
ref: 10

SPACER,REAR HUB BEARING

€ 20.00

11

0918017042
ref: 11

SPACER(17X30.5X22.3)

€ 8.50

12

0916017013
ref: 12

WASHER (17X30X3.2)

€ 2.00

13-1

0914116001
ref: 13-1

NUT

€ 6.50

13-2

0915916002
ref: 13-2
E22

NUT

€ 5.00

14

0411140308
ref: 14

PIN,COTTER

€ 1.50

15-1

6441011301
ref: 15-1
MODEL E/F/G/H MODEL

SHOE,BRAKE

€ 29.50

15-2

6441011310
ref: 15-2
MODEL J E4, E22, E77

SHOE,RR BRAKE

€ 45.00

16

0918017056
ref: 16

SPACER (17.6X24X57)

€ 19.00

17

0814363037
ref: 17

BEARING

€ 23.00

18

0814362037
ref: 18

BEARING

€ 18.50

19

0811362057
ref: 19

BEARING

€ 18.00

20

6445144400
ref: 20

LEVER,RR BRAKE CAM

€ 42.00

21

0110706257
ref: 21

BOLT

€ 2.00

22

0832121067
ref: 22

WASHER,LOCK

€ 2.50

23

0928530001
ref: 23

SEAL,OIL(30.5X52X8)

€ 20.00

24

0928015001
ref: 24

O-RING,BOSS

€ 2.00

25

6451144000
ref: 25

SPROCKET,RR

€ 59.00

26

0910510001
ref: 26

BOLT(10X35.5)

€ 3.50

27

0914010026
ref: 27

NUT

€ 2.00

28

0916910006
ref: 28

WASHER

€ 4.50

29

6141047200
ref: 29

ADJUSTER,CHAIN

€ 58.00

30

0910408018
ref: 30

BOLT 8X50

€ 3.00

31

0831012088
ref: 31

NUT

€ 2.00

32

6143331000
ref: 32

SUPPORTER,CHAIN ADJUST

€ 22.50

33

0151708504
ref: 33

BOLT, UPPER

€ 2.50

34-1

6510044111
ref: 34-1
IRC

TIRE,RR(3.50S18)

€ 0.00

34-2

6510044130
ref: 34-2
BS

TIRE

€ 0.00

34-3

6510044135
ref: 34-3
E22, E39, BS

TIRE, REAR (3.75S 18)

€ 0.00

35-1

6520033030
ref: 35-1

TUBE ASSEMBLY,WHEEL,INNER

€ 35.00

35-2

6520049015
ref: 35-2
E22, E39

TUBE,INNER

€ 39.00

36-1

5541145100
ref: 36-1
MODEL E

BALANCER,WHEEL

€ 7.00

36-2

5541245100
ref: 36-2
MODEL E

BALANCER,WHEEL

€ 4.00

36-3

5541345100
ref: 36-3
MODEL E

BALANCER,WHEEL

€ 6.50

36-4

5541100A0019T
ref: 36-4
MODEL F

BALANCER,WHEEL

€ 6.50

36-5

5541200A0019T
ref: 36-5
MODEL F

BALANCER,WHEEL

€ 7.00

36-6

5541300A0019T
ref: 36-6
MODEL F

BALANCER,WHEEL

€ 4.00

36-7

5541100A0029I
ref: 36-7
MODEL G

BALANCER (10G) BLACK

€ 0.00

36-8

5541200A0029I
ref: 36-8
MODEL G

BALANCER (20G) BLACK

€ 0.00

36-9

5541300A0029I
ref: 36-9
MODEL G

BALANCER (30G) BLACK

€ 0.00

36-10

5541100A00
ref: 36-10
MODEL H/J

BALANCER,WHEEL (10G)

€ 6.50

36-11

5541200A00
ref: 36-11
MODEL H/J

BALANCER,WHEEL

€ 7.00

36-12

5541300A00
ref: 36-12
MODEL H/J

BALANCER,WHEEL

€ 4.00

all assemblies
