TURN SIGNAL LAMP

GS450E 1987 (H) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

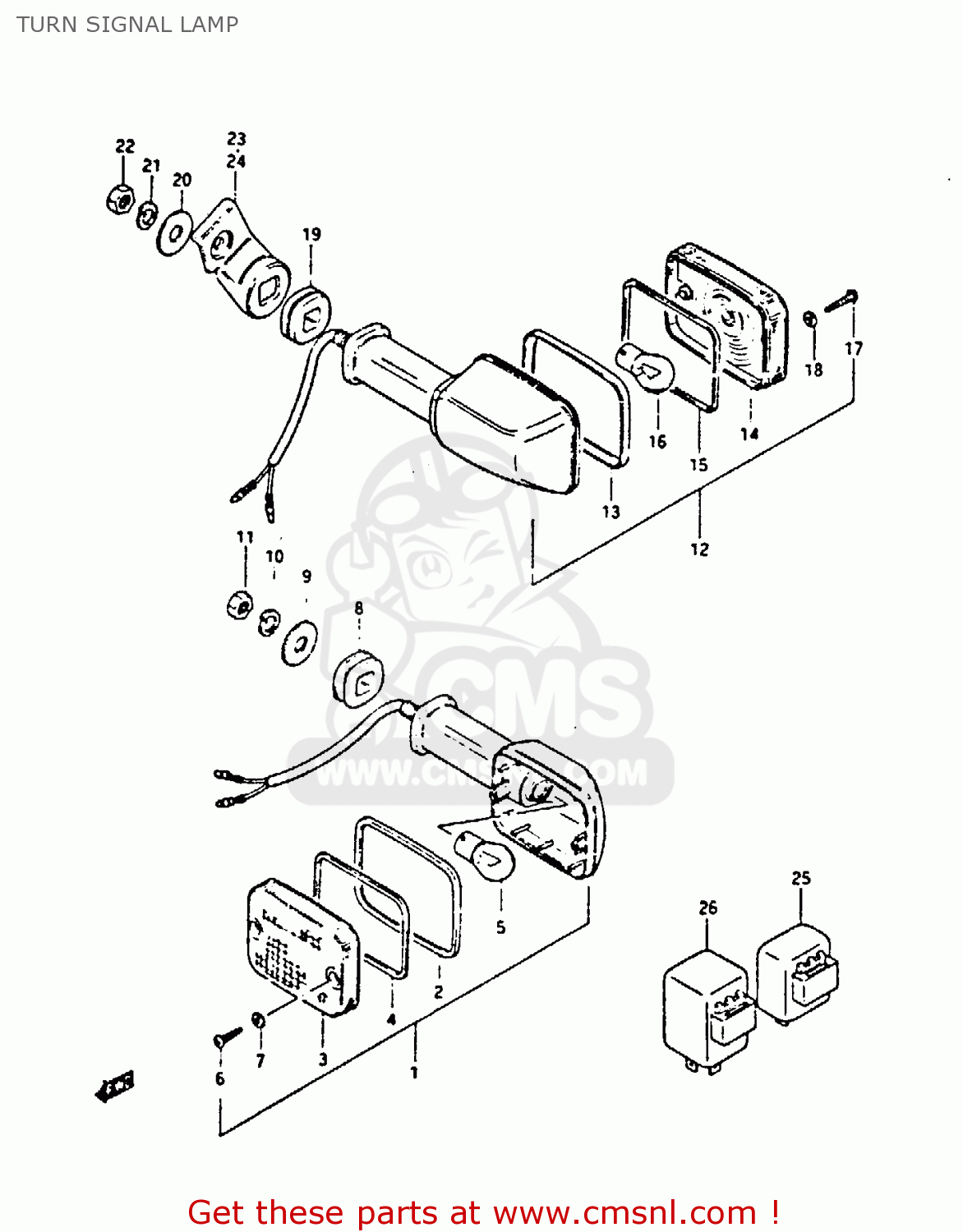

Turn signal lamp diagram GS450E 1987 (H) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21

TURN SIGNAL LAMP GS450E 1987 (H) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21
TURN SIGNAL LAMP GS450E 1987 (H) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21
TURN SIGNAL LAMP GS450E 1987 (H) UNITED KINGDOM SOUTH AFRICA BELGIUM (E02 E06 E21
prices are in EUR
ref
part #
description
quantity
1-1
3560145581
ref: 1-1
E2 ~F.NO. 102492, E2
LAMP ASSY,FR T
3560145581
€ 83.00
1-2
3560145570
ref: 1-2
E2 F.NO. 102493~, E7
LAMP ASSY,FR T
3560145570
€ 83.00
1-3
3560145521
ref: 1-3
E15, E34, E39, GS450
LAMP ASSY,FR T
3560145521
€ 70.00
1-4
3560144490
ref: 1-4
GS450SJ/SUJ E22, GS4
LAMP ASSY, FRONT TURN SIGNAL
€ 70.00
1-5
3560145510
ref: 1-5
E6
LAMP ASSEMBLY,FRONT TURN SIGNAL
3560145510
€ 70.00
2
3561149230
ref: 2
RIM
3561149230
€ 11.00
3-1
3561249231
ref: 3-1
LENS
3561249231
€ 13.00
3-2
3561245170
ref: 3-2
E2 F.NO. 102493~, E2
LENS
3561245170
€ 9.00
4
3561349230
ref: 4
GASKET (NAS)
3561349230
€ 5.00
5-1
0947112045
ref: 5-1
E2, E4, E15, E21, E2
BULB(12V21W)
0947112045
€ 5.00
5-2
0947112006
ref: 5-2
E6
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
6
0321104208
ref: 6
SCREW
0321104208
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
3562743010
€ 2.00
8-1
0932015004
ref: 8-1
GS450SE/SF/SG/SH/SJ,
CUSHION
0932015004
€ 5.00
8-2
0932015002
ref: 8-2
GS450EE/EG/EH/EJ, GS
CUSHION
0932015002
€ 4.50
9
0916010006
ref: 9
WASHER (10.5X30X2.3)
0916010006
€ 2.50
10
0832121106
ref: 10
LOCK WASHER
€ 3.00
11
0831012106
ref: 11
NUT
0831012106
€ 2.00
12-1
3560345581
ref: 12-1
E2 ~F.NO. 102492, E1
LAMP ASSY,RR T
3560345581
€ 68.50
12-2
3560345570
ref: 12-2
E2 F.NO. 102493~, E2
LAMP ASSY, REAR TURN SIGNLA
3560345570
€ 68.50
12-3
3560345521
ref: 12-3
E4, E21, E34
LAMP, REAR TURN SIGNAL
3560345521
€ 83.50
12-4
3560145510
ref: 12-4
E6
LAMP ASSEMBLY,FRONT TURN SIGNAL
3560145510
€ 70.00
13
3561149230
ref: 13
RIM
3561149230
€ 11.00
14-1
3565244182
ref: 14-1
E2 ~F.NO. 102492, E4
LENS
3565244182
€ 13.00
14-2
3565245170
ref: 14-2
E2 F.NO. 102493~, E2
LENS
3565245170
€ 9.00
14-3
3561249231
ref: 14-3
E6
LENS
3561249231
€ 13.00
15
3561349230
ref: 15
GASKET (NAS)
3561349230
€ 5.00
16-1
0947112045
ref: 16-1
E2, E4, E15, E21, E2
BULB(12V21W)
0947112045
€ 5.00
16-2
0947112006
ref: 16-2
E6
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
17
0321104208
ref: 17
SCREW
0321104208
€ 1.50
18
3562743010
ref: 18
GASKET (NAS)
3562743010
€ 2.00
19
0932015004
ref: 19
CUSHION
0932015004
€ 5.00
20
0916010006
ref: 20
WASHER (10.5X30X2.3)
0916010006
€ 2.50
21
0832121106
ref: 21
LOCK WASHER
€ 3.00
22
0831012106
ref: 22
NUT
0831012106
€ 2.00
23
3562111500
ref: 23
BRACKET,REAR TURN SIGNAL
3562111500
€ 66.50
24
3564111500
ref: 24
BRACKET,REAR TURN SIGNAL
3564111500
€ 43.50
25
3861031310
ref: 25
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
26
3861045091
ref: 26
E2 F.NO. 102493~, E2
RELAY ASSY,TUR
€ 67.50
