CYLINDER HEAD
GS450E 1988 (J) (E04 E22 E34 E75 E77)

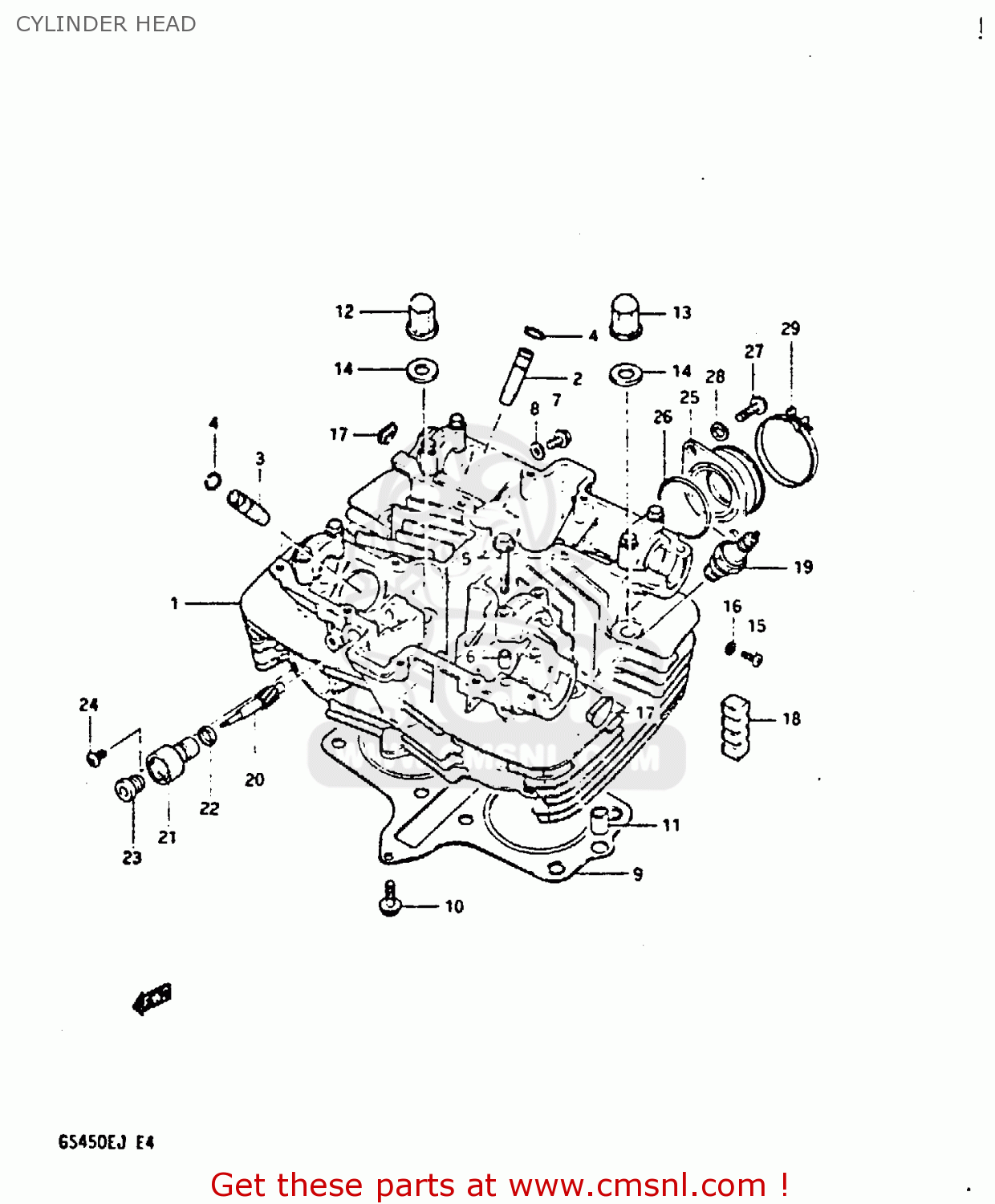

Cylinder head diagram GS450E 1988 (J) (E04 E22 E34 E75 E77)
CYLINDER HEAD GS450E 1988 (J) (E04 E22 E34 E75 E77)
×
prices are in EUR
ref
part #
description
quantity
1
1110044120
ref: 1
HEAD SET,CYLINDER
€ 0.00
2
1111545740
ref: 2
GUIDE,INTAKE VALVE
€ 25.50
3
1111645740
ref: 3
GUIDE,EXHAUST VALVE
€ 27.00
4
0938110003
ref: 4
RING,SNAP
€ 2.50
5
0910306026
ref: 5
BOLT(6X39)
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
€ 2.00
7
0151706128
ref: 7
BOLT
€ 2.50
8
0916806023
ref: 8
FROM 09168-06015
GASKET(5.8X13X1.2) (NAS)
€ 2.00
9
1114144110
ref: 9
GASKET,CYLINDER HEAD (MCA)
€ 117.00
10
0151706305
ref: 10
BOLT 6X30
€ 2.50
11
0421111189
ref: 11
PIN
€ 2.00
12
0915910026
ref: 12
NUT
€ 6.00
13
0915910033
ref: 13
NUT
€ 6.00
14
0916810017
ref: 14
GASKET(10.5X22X2) (NAS)
€ 3.50
15
0211205088
ref: 15
SCREW
€ 2.00
16
0916805010
ref: 16
GASKET(5.3X9.3X1.2) (NAS)
€ 2.00
17
0924123002
ref: 17
PLUG
€ 8.50
18
1125146150
ref: 18
PAD,CYLINDER
€ 7.00
19-1
0948200091
ref: 19-1
PLUG,SPARK
€ 3.00
19-2
0948200196
ref: 19-2
SPARK PLUG W24ES-U
€ 3.50
19-3
0948200121
ref: 19-3
E6
PLUG,SPARK(BR8ES)
€ 12.50
19-4
0948200247111
ref: 19-4
E6
PLUG,SPARK(W24ESR)
€ 3.50
20
2643145002
ref: 20
GEAR,TACHOMETER DRIVEN
€ 43.00
21
2644149000
ref: 21
SLEEVE,TACHOMETER DRIVE GEAR
€ 18.00
22
2645145000A
ref: 22
SEAL,TACHOMETER DRIVEN
€ 4.50
23
0928905002
ref: 23
SEAL,OIL(5X12X8)
€ 11.00
24
0912805101
ref: 24
SCREW(5X12)
€ 1.50
25
1311044100
ref: 25
PIPE,INTAKE
€ 30.00
26
0928040003
ref: 26
O-RING (D:2.4 ID:39.7)
€ 3.50
27
0211206205
ref: 27
SCREW
€ 2.00
28
0832121064
ref: 28
WASHER,LOCK
€ 2.00
29
0940254303
ref: 29
CLAMP
€ 4.00
