GEAR SHIFTING
GS450E 1988 (J) (E04 E22 E34 E75 E77)

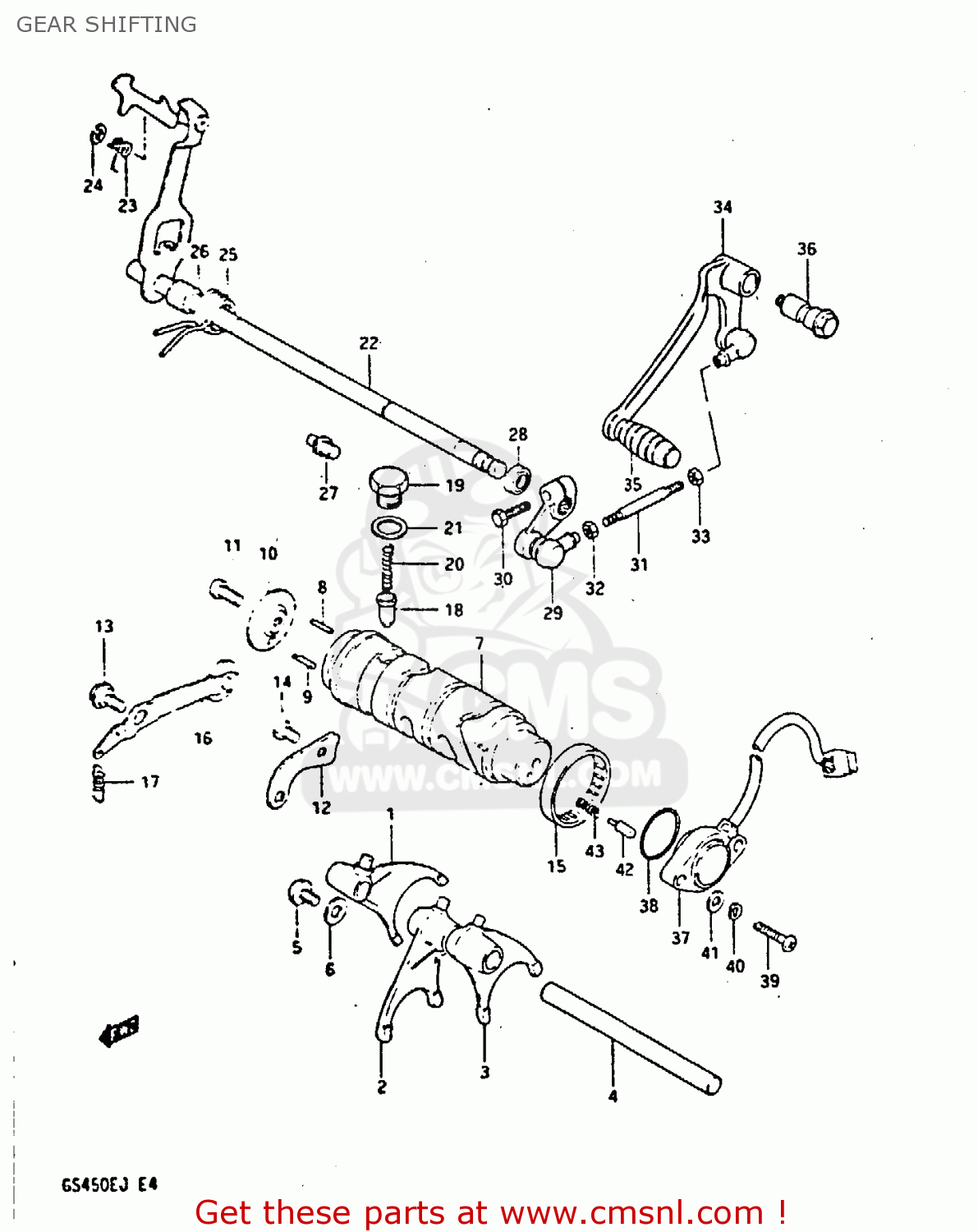

Gear shifting diagram GS450E 1988 (J) (E04 E22 E34 E75 E77)
GEAR SHIFTING GS450E 1988 (J) (E04 E22 E34 E75 E77)
×
prices are in EUR
ref
part #
description
quantity
1
2521144001
ref: 1
FORK,GEAR SHIFT NO.1
€ 70.00
2
2522144001
ref: 2
FORK,GEAR SHIFT NO.2
€ 74.50
3
2523144000
ref: 3
FORK,GEAR SHIFT NO.2
€ 74.50
4
2541131301
ref: 4
SHAFT,GEAR SHIFT FORK
€ 14.50
5
0214206108
ref: 5
SCREW
€ 2.00
6
0821106141
ref: 6
WASHER
€ 2.50
7
2531147001
ref: 7
CAM,GEAR SHIFT
€ 68.50
8
0926104001
ref: 8
PIN(4X18.5)
€ 1.50
9
0920904013
ref: 9
PIN
€ 5.00
10
2532244000
ref: 10
RETAINER,GEAR SHIFT CAM DR PIN
€ 2.50
11
0211206167
ref: 11
SCREW
€ 2.50
12
2534133300
ref: 12
GUIDE,GEAR SHIFT CAM
€ 6.00
13
0911106019
ref: 13
BOLT
€ 1.50
14
0110706166
ref: 14
BOLT
€ 2.00
15
0926340001
ref: 15
BEARING(40X47X12)
€ 21.00
16
2535044000
ref: 16
STOPPER,GEAR SHIFT CAM NO.1
€ 10.50
17
0944309007
ref: 17
SPRING
€ 14.50
18
2535130010
ref: 18
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
19
2535430000
ref: 19
HOLDER,GEAR SHIFT CAM STOP SPR
€ 6.50
20
0944006020
ref: 20
SPRING
€ 14.00
21
0916814004
ref: 21
GASKET(14X19.2X2) (NAS)
€ 2.50
22
2551044100
ref: 22
SHAFT,GEAR SHIFT
€ 83.50
23
0944813008
ref: 23
SPRING
€ 7.00
24
0833211078
ref: 24
E RING
€ 2.00
25
0944426012
ref: 25
SPRING
€ 3.50
26
0918012068
ref: 26
SPACER(12X20X15.3)
€ 3.00
27
2567101000
ref: 27
STOPPER,GEAR SHIFT CAM
€ 3.00
28
0928512002
ref: 28
OIL SEAL
€ 7.00
29
2552047020
ref: 29
ARM,GEAR SHIFT LINK
€ 53.50
30
0110706207
ref: 30
BOLT
€ 2.00
31
2552533200
ref: 31
ROD,GEAR SHIFT LINK
€ 6.00
32
0831011067
ref: 32
NUT 6MM
€ 2.50
33
0914006011
ref: 33
NUT
€ 1.50
34
2560033210
ref: 34
LEVER ASSY,GEAR SHIFT
€ 57.00
35
2565216500
ref: 35
RUBBER,GEAR SHIFT PEDAL
€ 4.00
36
2561744101
ref: 36
SHAFT,GEAR SHIFT LEVER
€ 9.00
37-1
3772033200
ref: 37-1
MODEL E/F/G/H
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 92.50
37-2
3772044400
ref: 37-2
MODEL J
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 103.50
38
0928026003
ref: 38
O-RING (D:2.4 ID:26.2)
€ 2.50
39
0211205206
ref: 39
SCREW
€ 2.50
40
0832121056
ref: 40
LOCK WASHER
€ 3.00
41
0832221056
ref: 41
WASHER
€ 2.50
42
0920905011
ref: 42
PIN(5X15.5)
€ 2.00
43
0944004010
ref: 43
SPRING
€ 1.50
