WIRING HARNESS
GS450E 1988 (J) (E04 E22 E34 E75 E77)

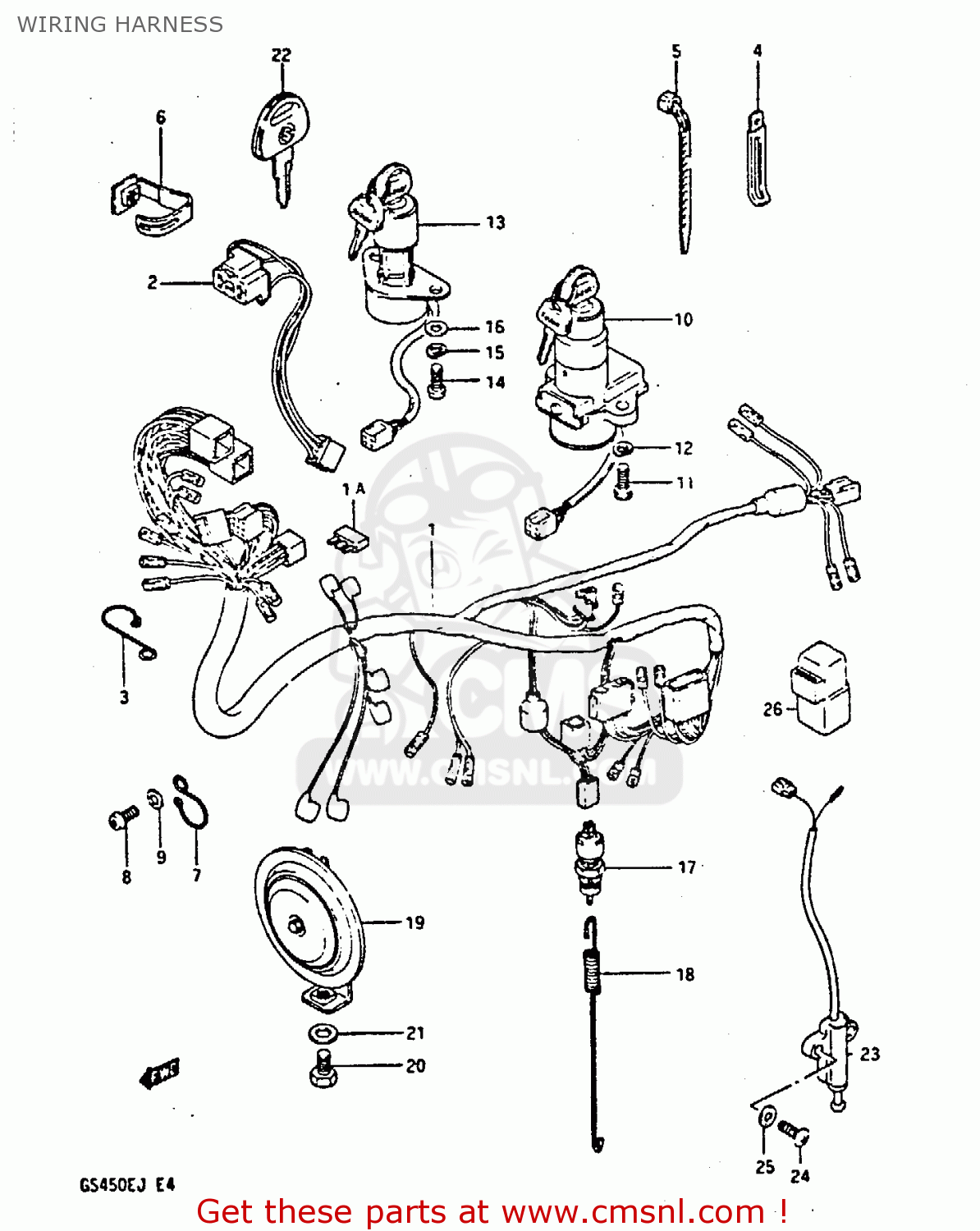

Wiring harness diagram GS450E 1988 (J) (E04 E22 E34 E75 E77)
WIRING HARNESS GS450E 1988 (J) (E04 E22 E34 E75 E77)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661044410
ref: 1-1
MODEL E/F/G/H
WIRING HARNESS
€ 118.50
1-2
3661044450
ref: 1-2
MODEL J
WIRING HARNESS
€ 0.00
1A
3661138A00
ref: 1A
MODEL J
DIODE(STANLEY DE8804)
€ 13.00
2
3685330500
ref: 2
LEAD WIRE,HEADLAMP
€ 13.00
3
3661944401
ref: 3
CLIP,WIRING HARNESS
€ 0.00
4-1
0940406401
ref: 4-1
MODEL J
CLAMP L:35
€ 2.50
4-2
0940410403
ref: 4-2
CLAMP
€ 2.50
5-1
0940714403
ref: 5-1
CLAMP(L:125)
€ 2.50
5-2
0940714403
ref: 5-2
CLAMP(L:125)
€ 2.50
6
3665033201
ref: 6
CLAMP,WIRING HARNESS
€ 0.00
7
3661944002
ref: 7
CLIP,WIRING HARNESS
€ 2.50
8
0211206125
ref: 8
SCREW
€ 1.50
9
0832221064
ref: 9
WASHER
€ 2.00
10
3710031301
ref: 10
E2, E4, E6, E21, E34
LOCK ASSEMBLY,STEERING
€ 108.50
11
3715247011
ref: 11
BOLT
€ 3.00
12
0832121067
ref: 12
WASHER,LOCK
€ 2.50
13
3711005301
ref: 13
E15, E22, E77
SWITCH ASSY,IGNITION
€ 121.00
14
0211206164
ref: 14
SCREW
€ 2.00
15
0832121064
ref: 15
WASHER,LOCK
€ 2.00
16
0832221064
ref: 16
WASHER
€ 2.00
17
3774024A00
ref: 17
FROM 37740-07900
SWITCH ASSY,STOP LAMP
€ 20.50
18
0944306035
ref: 18
SPRING
€ 4.50
19-1
3850044410
ref: 19-1
HORN ASSEMBLY
€ 45.00
19-2
3850044490
ref: 19-2
E4, E34, E39, E77
HORN
€ 45.00
20
0110708125
ref: 20
BOLT
€ 1.50
21
0832211084
ref: 21
WASHER
€ 1.50
22
3714647010
ref: 22
OPT
KEY,BLANK
€ 15.00
23
3784044A10
ref: 23
MODEL J
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
24
0211206205
ref: 24
SCREW
€ 2.00
25
0832221064
ref: 25
WASHER
€ 2.00
26
3874024B10
ref: 26
MODEL J
RELAY ASSEMBLY
€ 37.50
