STEERING STEM
GS450E 1988 (J) (E04 E22 E34 E75 E77)

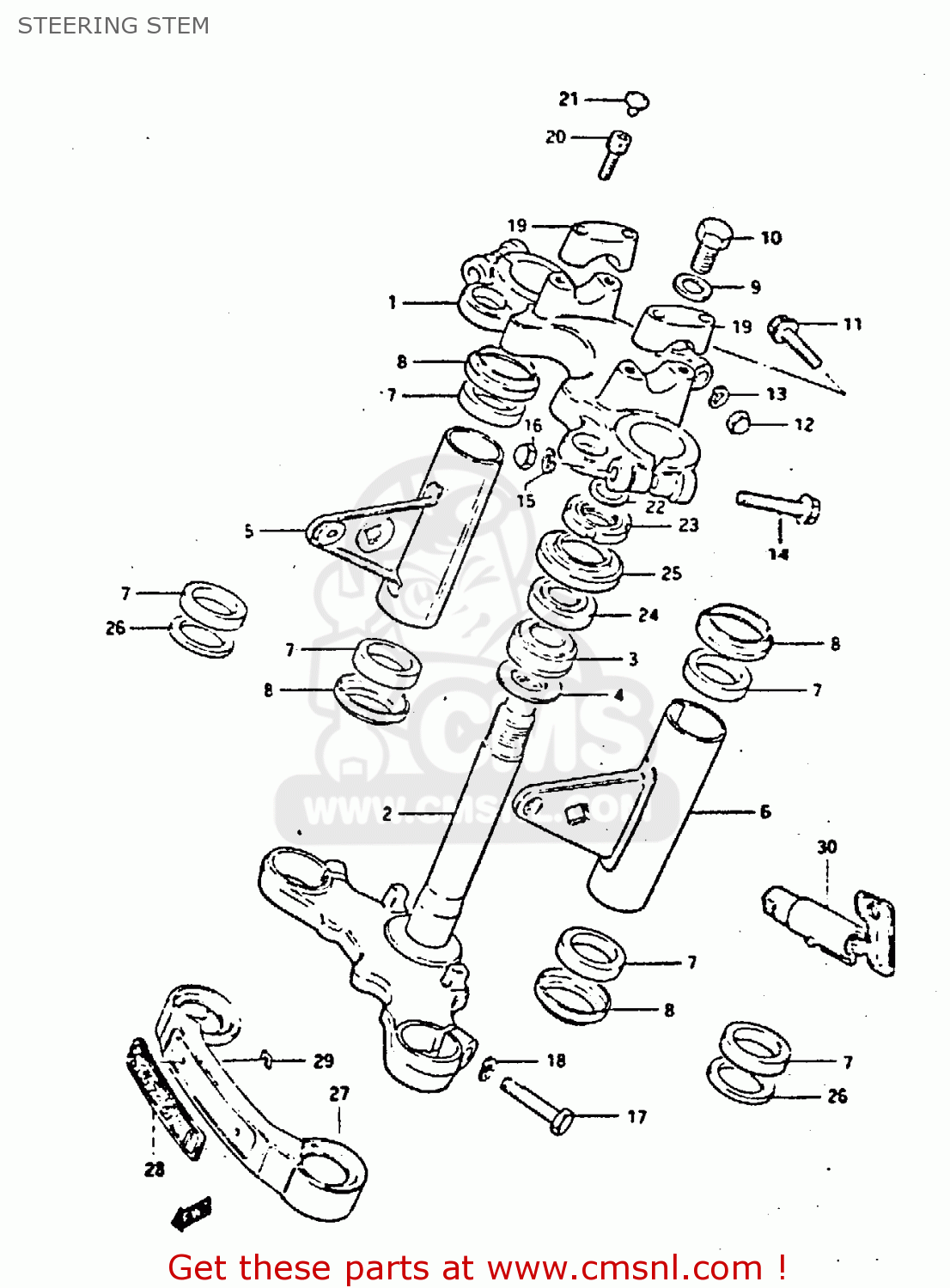

Steering stem diagram GS450E 1988 (J) (E04 E22 E34 E75 E77)
STEERING STEM GS450E 1988 (J) (E04 E22 E34 E75 E77)
×
prices are in EUR
ref
part #
description
quantity
1
5131144110291
ref: 1
HEAD,STEERING STEM
€ 100.50
2
5140044851
ref: 2
STEM,STEERING
€ 97.00
3
0926530005
ref: 3
BEARING
€ 49.50
4
0821130402
ref: 4
WASHER,THRUST
€ 4.00
5
5153033200291
ref: 5
BRACKET,HEADLAMP,RIGHT
€ 100.00
6
5154033200291
ref: 6
BRACKET,HEADLAMP,LEFT
€ 99.00
7
5155644100
ref: 7
CUSHION,HEADLAMP BRACKET
€ 5.50
8
5155544100
ref: 8
CAP,HEADLAMP BRACKET
€ 5.50
9
0916012020
ref: 9
WASHER (12.5X27X1.6)
€ 2.00
10
0910412013
ref: 10
BOLT(12X20)
€ 6.50
11
0151708504
ref: 11
BOLT, UPPER
€ 2.50
12
0831311085
ref: 12
NUT,M8X1.25X12
€ 2.00
13
0832121084
ref: 13
WASHER,LOCK,8.
€ 2.50
14
0151710555
ref: 14
BOLT
€ 3.00
15
0832131105
ref: 15
GS450EE/EG/EH/EJ E2,
LOCK WASHER
€ 3.00
16
0914510002
ref: 16
GS450EE/EG/EH/EJ E2,
NUT
€ 4.00
17
0110710404
ref: 17
BOLT
€ 2.50
18
0832121104
ref: 18
WASHER,LOCK
€ 3.00
19
5621134300291
ref: 19
HOLDER,HANDLEBAR(BLACK)
€ 42.00
20
0711008305
ref: 20
BOLT, REAR (8X30)
€ 3.00
21
0925006004
ref: 21
CAP(OD:14.5)
€ 1.50
22
0916018002
ref: 22
WASHER(18.5X24X1)
€ 2.00
23
5163134200
ref: 23
NUT,STEERING STEM
€ 23.00
24
0926525008
ref: 24
TAPER,ROLLER BEARING
€ 48.50
25
5164340502
ref: 25
DUST SEAL,STEERING UPR
€ 8.00
26
5155511400
ref: 26
GS450SE/SF/SG/SH/SJ
SEAT,HEADLAMP BRACKET LWR
€ 2.00
27-1
5187144220
ref: 27-1
GS450EE/EG/EH/EJ
COVER,FRONT FORK
€ 22.50
27-2
5187144210
ref: 27-2
GS450EE E39, GS450EJ
COVER,FRONT FORK
€ 22.50
28
6821144210
ref: 28
GS450EE/EG/EH/EJ
EMBLEM,FR FORK COVER
€ 23.00
29
0914803002
ref: 29
GS450EE/EG/EH/EJ
NUT
€ 3.00
30
5190022662
ref: 30
E15, E22, E77
LOCK ASSEMBLY,STEERING (NEI
€ 168.50
