MASTER CYLINDER
GS450E 1988 (J) (E04 E22 E34 E75 E77)

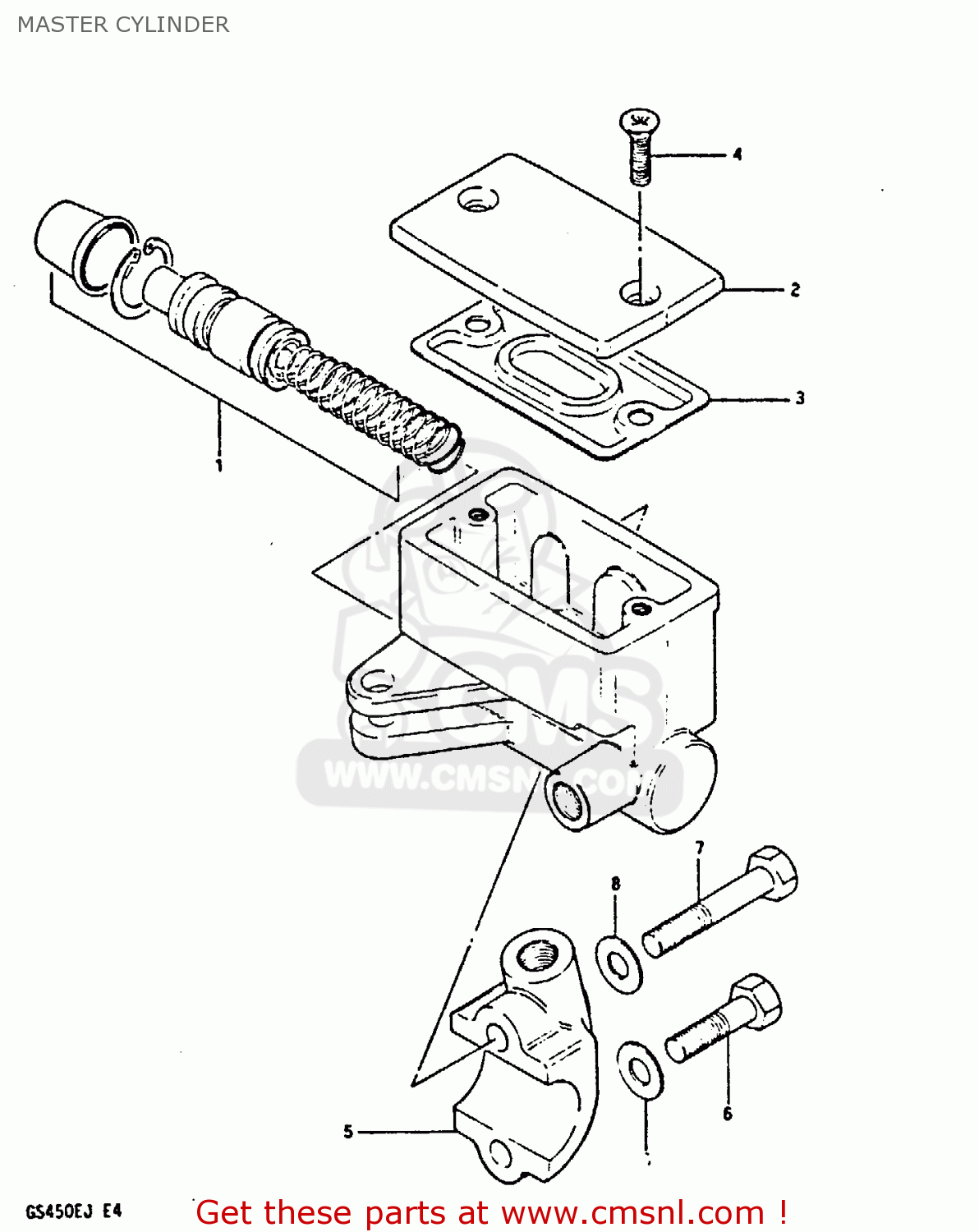

Master cylinder diagram GS450E 1988 (J) (E04 E22 E34 E75 E77)
MASTER CYLINDER GS450E 1988 (J) (E04 E22 E34 E75 E77)
×
prices are in EUR
ref
part #
description
quantity
0
5960044300
ref: 0
MODEL E/F/G/H
CYLINDER ASSY, MASTER
€ 210.50
0
5960049401
ref: 0
GS450SE/SF E34
CYLINDER,MASTE
€ 256.00
0
5960044310
ref: 0
MODEL H E34, MODEL J
CYLINDER ASSY, MASTER
€ 210.50
1-1
5960045841
ref: 1-1
PISTON & CUP SET
€ 41.50
1-2
5960045831
ref: 1-2
GS450SE/SF E34
PISTON & CUP SET
€ 41.50
2-1
5966904A20
ref: 2-1
MODEL E/F/G/H
CAP
€ 30.00
2-2
5966904A10
ref: 2-2
MODEL H E34, MODEL J
CAP
€ 30.00
3
5966749460
ref: 3
5966749460
4
6968949300
ref: 4
SCREW
€ 1.50
5
5967144300
ref: 5
HOLDER
€ 14.50
6
0110706255
ref: 6
BOLT
€ 2.50
7
0110706405
ref: 7
BOLT
€ 2.00
8
0832221064
ref: 8
WASHER
€ 2.00
