CYLINDER HEAD
GS450EU 1988 (J) GERMANY (E22)

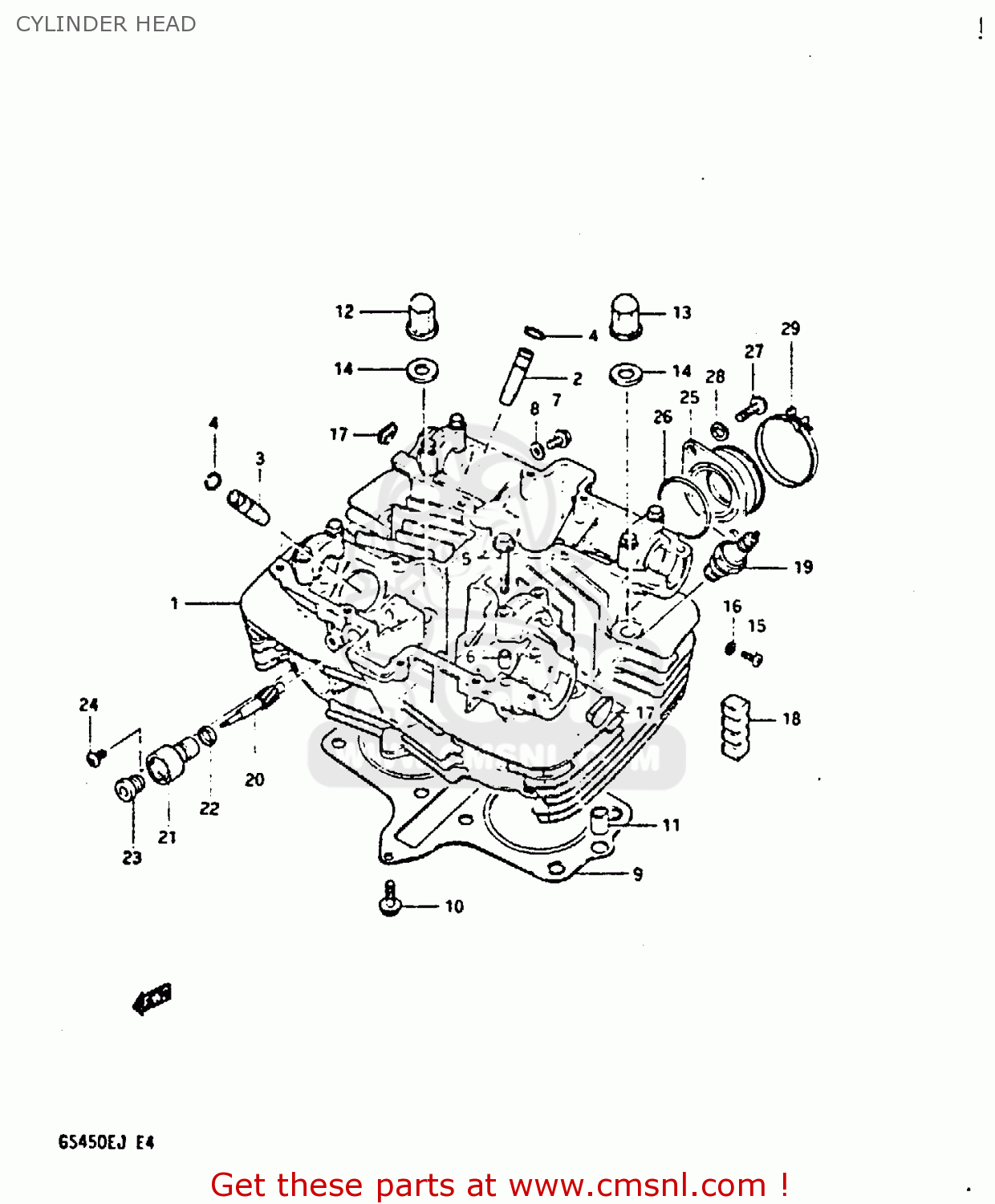

Cylinder head diagram GS450EU 1988 (J) GERMANY (E22)
CYLINDER HEAD GS450EU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1110044120
ref: 1
HEAD SET,CYLINDER
€ 0.00
2
1111545740
ref: 2
GUIDE,INTAKE VALVE
€ 25.50
3
1111645740
ref: 3
GUIDE,EXHAUST VALVE
€ 27.00
4
0938110003
ref: 4
RING,SNAP
€ 2.50
5
0910306026
ref: 5
BOLT(6X39)
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
€ 2.00
7
0151706128
ref: 7
BOLT
€ 2.50
8
0916806023
ref: 8
FROM 09168-06015
GASKET(5.8X13X1.2) (NAS)
€ 2.00
9
1114144110
ref: 9
GASKET,CYLINDER HEAD (MCA)
€ 117.00
10
0151706305
ref: 10
BOLT 6X30
€ 2.50
11
0421111189
ref: 11
PIN
€ 2.00
12
0915910026
ref: 12
NUT
€ 6.00
13
0915910033
ref: 13
NUT
€ 6.00
14
0916810017
ref: 14
GASKET(10.5X22X2) (NAS)
€ 3.50
15
0211205088
ref: 15
SCREW
€ 2.00
16
0916805010
ref: 16
GASKET(5.3X9.3X1.2) (NAS)
€ 2.00
17
0924123002
ref: 17
PLUG
€ 8.50
18
1125146150
ref: 18
PAD,CYLINDER
€ 7.00
19-1
0948200091
ref: 19-1
PLUG,SPARK
€ 3.00
19-2
0948200196
ref: 19-2
SPARK PLUG W24ES-U
€ 3.50
19-3
0948200121
ref: 19-3
E6
PLUG,SPARK(BR8ES)
€ 12.50
19-4
0948200247111
ref: 19-4
E6
PLUG,SPARK(W24ESR)
€ 3.50
20
2643145002
ref: 20
GEAR,TACHOMETER DRIVEN
€ 43.00
21
2644149000
ref: 21
SLEEVE,TACHOMETER DRIVE GEAR
€ 18.00
22
2645145000A
ref: 22
SEAL,TACHOMETER DRIVEN
€ 4.50
23
0928905002
ref: 23
SEAL,OIL(5X12X8)
€ 11.00
24
0912805101
ref: 24
SCREW(5X12)
€ 1.50
25
1311044100
ref: 25
PIPE,INTAKE
€ 30.00
26
0928040003
ref: 26
O-RING (D:2.4 ID:39.7)
€ 3.50
27
0211206205
ref: 27
SCREW
€ 2.00
28
0832121064
ref: 28
WASHER,LOCK
€ 2.00
29
0940254303
ref: 29
CLAMP
€ 4.00
