LEFT HANDLE SWITCH (MODEL J)
GS450EU 1988 (J) GERMANY (E22)

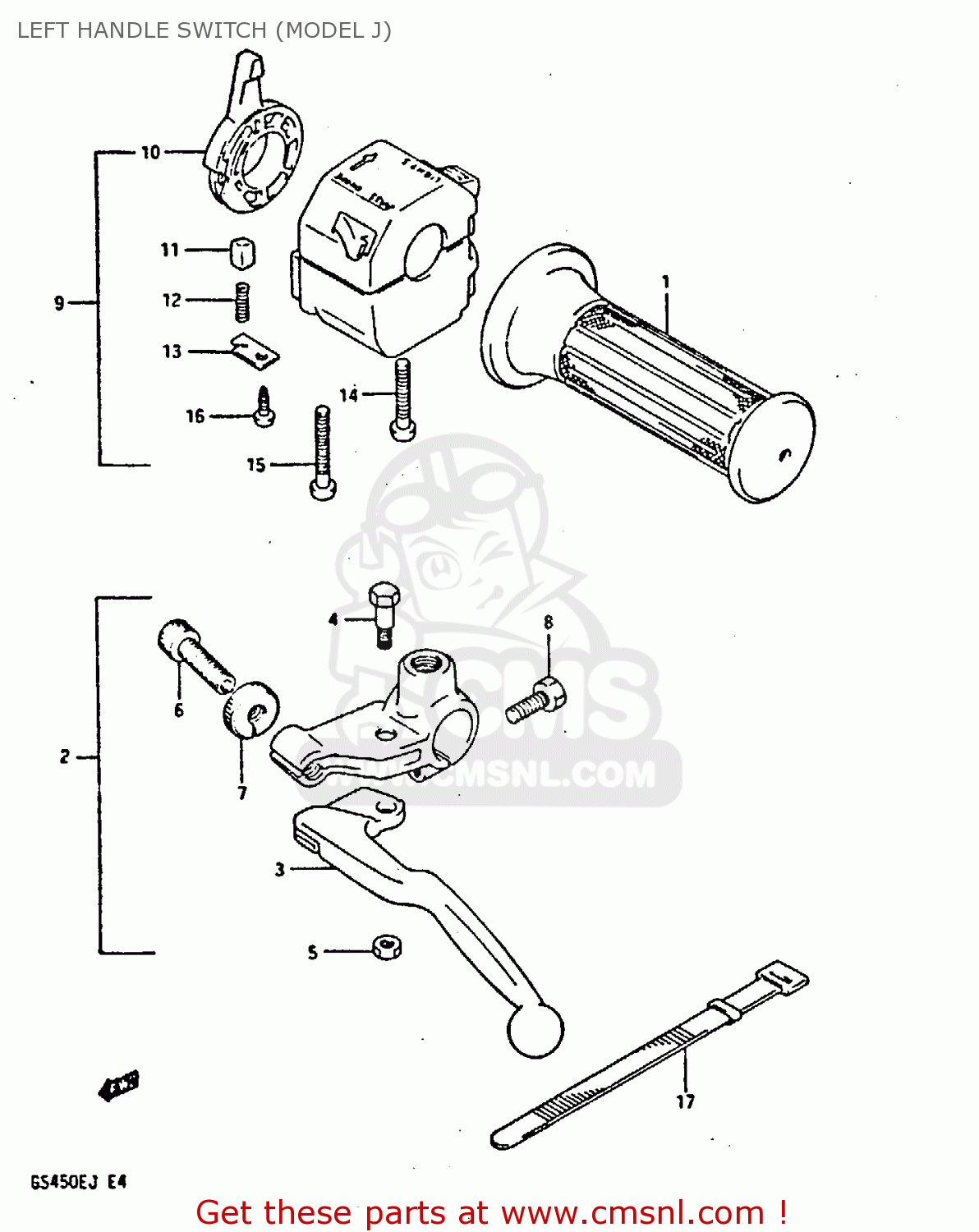

Left handle switch (model j) diagram GS450EU 1988 (J) GERMANY (E22)
LEFT HANDLE SWITCH (MODEL J) GS450EU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
5721149510
ref: 1
GRIP,L
€ 26.50
2
5750030B00
ref: 2
LEVER ASSY, CLUTCH
€ 48.50
3
5762020A01
ref: 3
LEVER,CLUTCH
€ 26.50
4
5743133450
ref: 4
BOLT,LEVER
€ 8.50
5
0831921065
ref: 5
NUT
€ 2.50
6
5744111010
ref: 6
ADJUSTER,CABLE
€ 8.00
7
5744211010
ref: 7
NUT,CABLE ADJUSTER
€ 4.00
8
0110706205
ref: 8
BOLT
€ 2.00
9
3740032B00
ref: 9
SWITCH ASSEMBLY,HANDLE,LEFT
€ 146.00
10
3748130B00
ref: 10
LEVER,CHOKE
€ 13.00
11
3748230B00
ref: 11
PIECE,SLIDE
€ 4.00
12
3748330B00
ref: 12
SPRING
€ 7.50
13
3748630B00
ref: 13
PLATE
€ 3.00
14
0211205405
ref: 14
SCREW
€ 2.00
15
0211205455
ref: 15
SCREW, 5X45
€ 4.00
16
0351104125
ref: 16
SCREW
€ 1.50
17
0940712402
ref: 17
CLAMP(L:120)
€ 3.00
